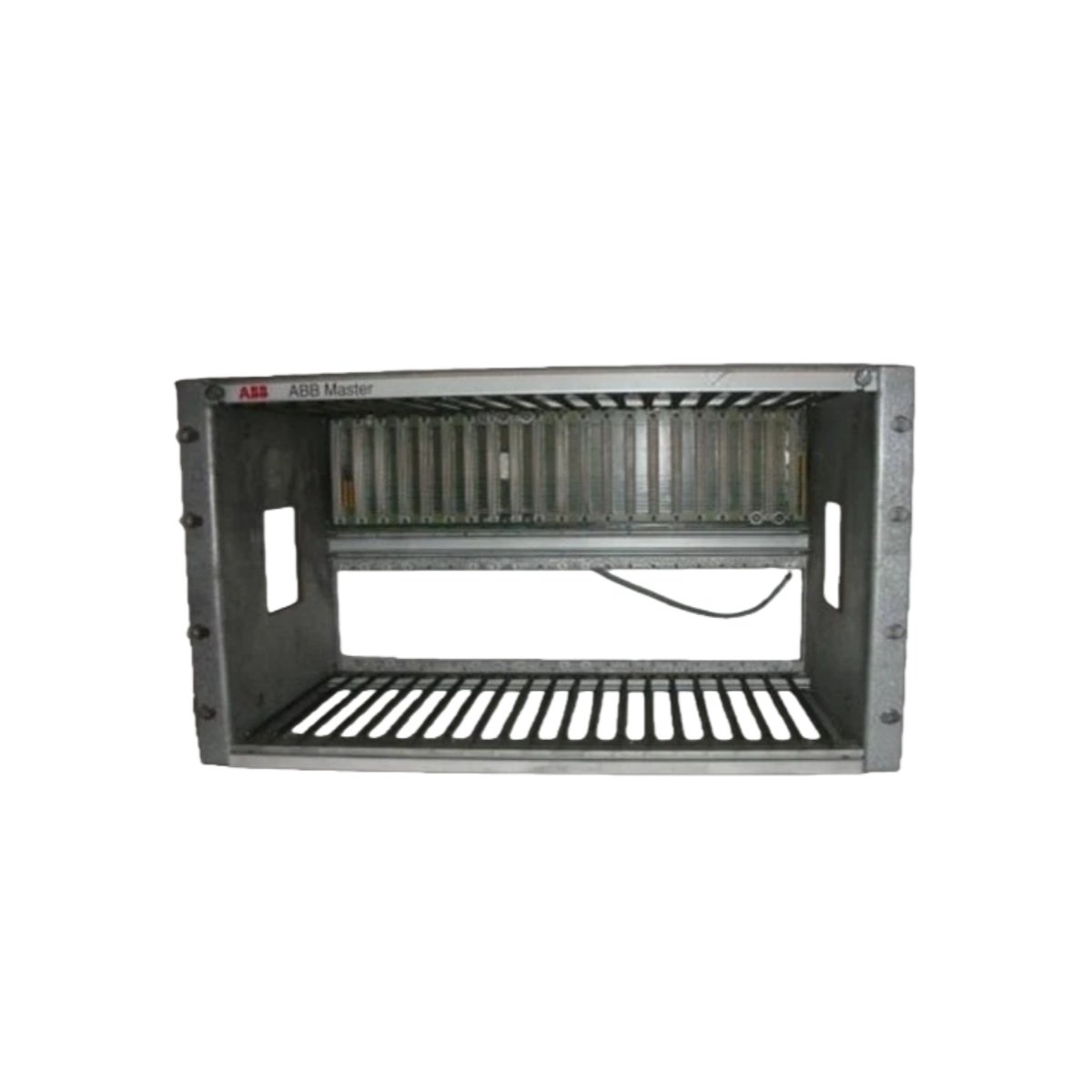

The ABB DSRF182 57310255-AL serves as a rugged mounting frame for S100 I/O modules in control systems. This subrack provides mechanical support and electrical connectivity for up to twelve modules. Engineers choose this frame for creating organized, scalable automation solutions. Its robust construction ensures reliable performance in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 280 mm x 190 mm x 160 mm |
| Weight | 2.8 kg (empty) |
| Module Capacity | 12 single-width or 6 double-width modules |
| Backplane | Passive segmented design with gold-plated connectors |
| Bus Current | 10 A at 5 V DC, 5 A at 24 V DC |
| Mounting | 19-inch rack (4U) or panel mount |
| Material | Zinc-coated steel |
| Protection | IP20 |
| Temperature | 0°C to 60°C (operating) |
Modular Design for System Flexibility
The 57310255-AL accommodates various ABB S100 I/O modules for customized control configurations. You simply insert modules into any available slot without addressing concerns. The backplane handles all communication between the controller and installed modules automatically. Therefore, system expansion requires only adding new modules as needed.
Reliable Mechanical Construction
This equipment frame features heavy-duty steel construction that withstands industrial vibration and shock. Integrated cable channels organize wiring for improved maintenance access and airflow. Mechanical coding pins prevent inserting incompatible modules into incorrect slot positions. The frame also provides excellent electromagnetic shielding for sensitive electronics.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
