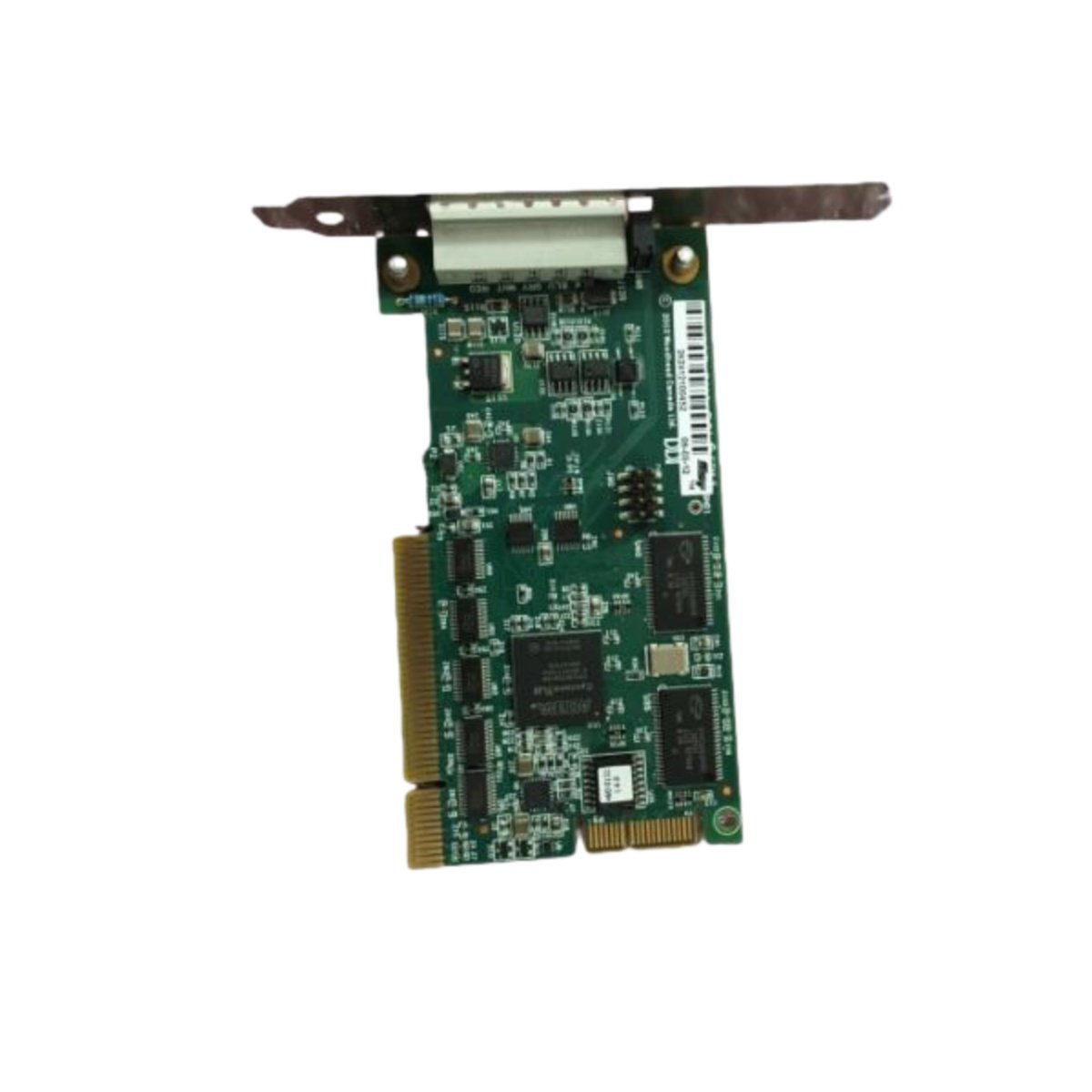

The ABB DSQC697 3HAC037084-001 serves as a dedicated DeviceNet communication interface for advanced robotic control systems. This expansion board establishes reliable data exchange between ABB robot controllers and distributed field devices. Engineers depend on this module for real-time I/O control and parameter configuration across DeviceNet networks. Its robust construction ensures continuous operation in demanding manufacturing environments.
Technical Specifications and Physical Characteristics
The DSQC697 3HAC037084-001 features a精密 engineered hardware design optimized for industrial fieldbus applications. This module incorporates advanced circuit protection and diagnostic capabilities for maximum system uptime. Understanding these technical parameters helps integration engineers plan efficient control architectures.
| Specification | Details |
|---|---|
| Product Dimensions | 170 mm x 105 mm x 48 mm (Height x Width x Depth) |
| Product Weight | 0.42 kg (including mounting hardware) |
| Communication Protocol | DeviceNet Specification Release 2.0 compliant |
| Supported Baud Rates | 125 kbps, 250 kbps, and 500 kbps (automatic detection) |
| Network Connector | 5-pin combicon pluggable terminal block |
| Power Requirements | 24 V DC ±15% at 180 mA maximum |
| Galvanic Isolation | 1500 V RMS between network and logic circuits |
| Node Address Range | 0 to 63 (software configurable) |
| LED Status Indicators | Module power, network status, I/O activity, and fault indication |
| On-Board Memory | 512 kB flash for firmware and configuration storage |
| Energy Storage | Supercapacitor maintains real-time clock for 72 hours |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 2 g continuous, 10 Hz to 500 Hz |
| MTBF | 150,000 hours at 40°C |
Advanced Network Integration Capabilities
The 3HAC037084-001 variant incorporates enhanced firmware for improved DeviceNet performance and compatibility. It supports both polled and change-of-state I/O messaging for efficient bandwidth utilization. Furthermore, this module handles explicit messaging for device configuration and diagnostics simultaneously. The board automatically detects network baud rate during startup for error-free integration.
Seamless Compatibility with ABB Controller Systems
This ABB DeviceNet board mounts directly into IRC5 and newer controller families using standard DIN rail hardware. You connect field devices through the accessible front-panel terminal block without special tools. RobotStudio automatically recognizes the DSQC697 during system configuration for immediate parameter setup. Consequently, this module stores all configuration data locally for hot-swap replacement capability.
Diagnostic Features for Preventive Maintenance
The DSQC697 includes comprehensive diagnostic tools that simplify network troubleshooting and maintenance. Individual LED indicators provide instant visual confirmation of module status and communication activity. Additionally, the board maintains internal error logs accessible through the robot controller interface. Maintenance personnel can therefore identify intermittent faults before they cause production downtime.
Electrical Protection and Environmental Durability
Industrial environments demand robust protection against electrical disturbances and physical stress. This DeviceNet board incorporates transient voltage suppression on all network connections for surge protection. Its conformal-coated circuit board resists moisture and airborne contaminants common in manufacturing facilities. The DSQC697 also features reverse polarity protection on power input terminals for installation safety.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
