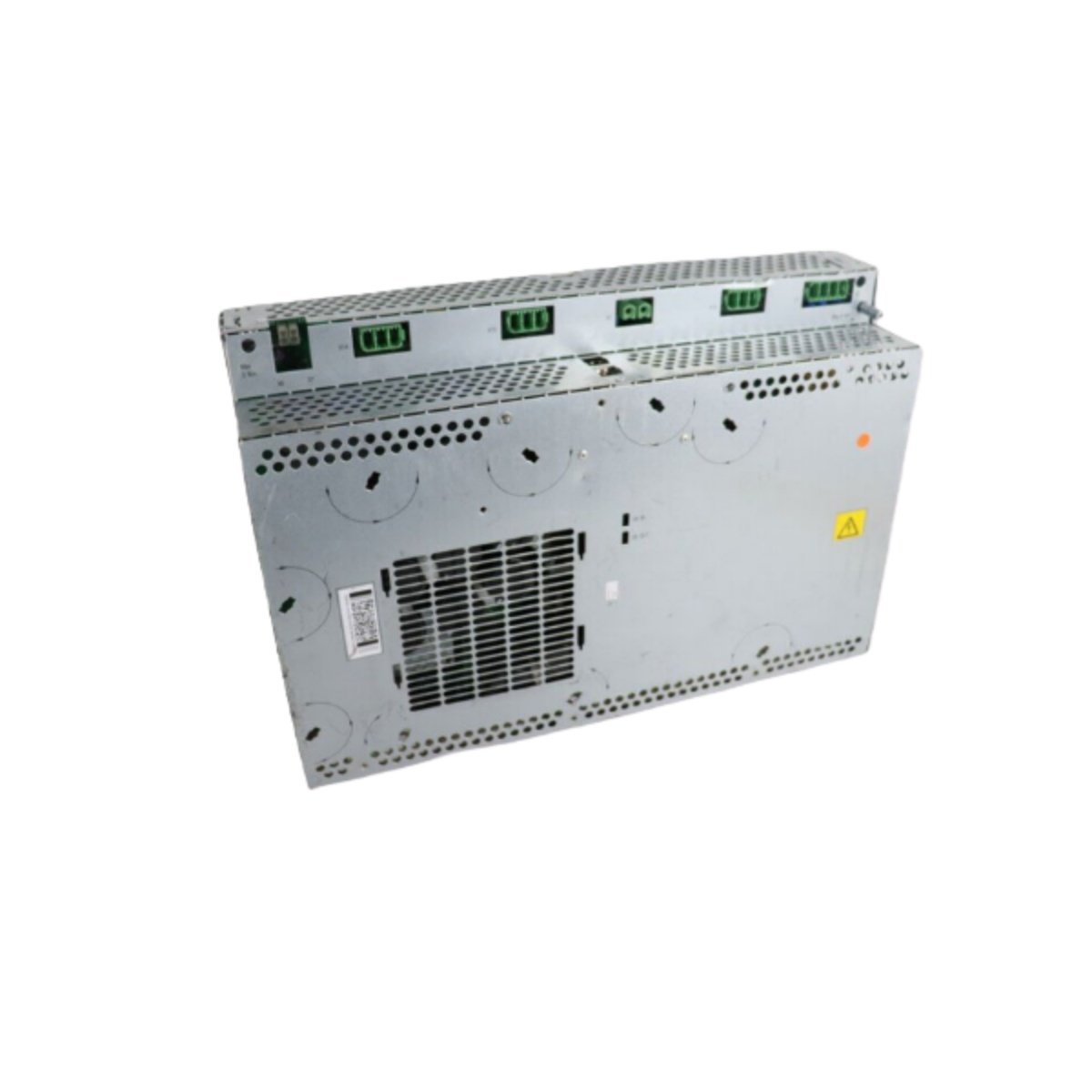

The ABB DSQC663 functions as a dedicated drive unit for robot axis control applications. This module provides precise motor control for industrial robot manipulators and positioning systems. Engineers use it to manage speed, torque, and position of servo motors accurately. The DSQC663 integrates seamlessly with ABB’s robot controller architecture for coordinated motion. Its robust design ensures reliable performance in continuous duty manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Drive Unit (Servo Drive) |
| Part Number | DSQC663 (3HAC029818-001) |
| Series | ABB Robot Control System |
| Controlled Axes | Single Axis (Modular Design) |
| Motor Type | AC Servo Motor |
| Input Voltage | 600 Vdc (From Common DC Bus) |
| Output Current | 25 A Continuous, 50 A Peak |
| Output Power | 7.5 kW Continuous |
| Switching Frequency | 4 kHz to 8 kHz (Configurable) |
| Control Method | Sinusoidal PWM with FOC |
| Feedback Interface | Resolver or Encoder |
| Communication | High-Speed Serial Fiber Optic |
| Protection Features | Overcurrent, Overvoltage, Overtemperature, Short Circuit |
| Module Width | 100 mm |
| Height | 300 mm |
| Depth | 200 mm |
| Weight | 4.5 kg |
| Cooling | Internal Fan with Heat Sink |
| Connection Type | Terminal Blocks and Fiber Optic Connectors |
| Internal Components | IGBT Module, Gate Drive Board, Control Board, DC Bus Capacitors |
| Energy Storage | 4 x 1000 µF DC Bus Capacitors |
| LED Indicators | Power, Run, Fault, Communication Status |
| Operating Temperature | 0°C to 45°C |
Advanced Motor Control Capabilities
The DSQC663 utilizes field-oriented control for precise servo motor regulation. It generates sinusoidal PWM waveforms for smooth torque production across the speed range. The drive executes position, velocity, and torque control loops with high bandwidth. Engineers configure control parameters through ABB’s RobotStudio software environment. Fast current loops ensure accurate torque control during dynamic motion profiles. This performance suits demanding robotic applications requiring precise path following.
Power Stage and Energy Storage
ABB DSQC663 connects to a common DC bus shared among multiple drive units. Large DC bus capacitors store energy for peak power demands during acceleration. These capacitors also filter the DC supply for clean power to the IGBT stage. An IGBT power module switches DC voltage to create variable-frequency AC output. Internal gate drive circuits optimize switching performance for minimal losses. This design delivers efficient and reliable power conversion for servo motors.
Communication and Synchronization
The DSQC663 communicates with the robot controller through high-speed fiber optics. Fiber optic links provide electrical isolation and noise immunity for reliable data transfer. Multiple drive units synchronize precisely for coordinated multi-axis motion. The drive receives position commands and transmits actual status back to the controller. This closed-loop architecture ensures accurate execution of programmed motion profiles. Engineers benefit from deterministic performance for complex robotic sequences.
Physical Design and Thermal Management

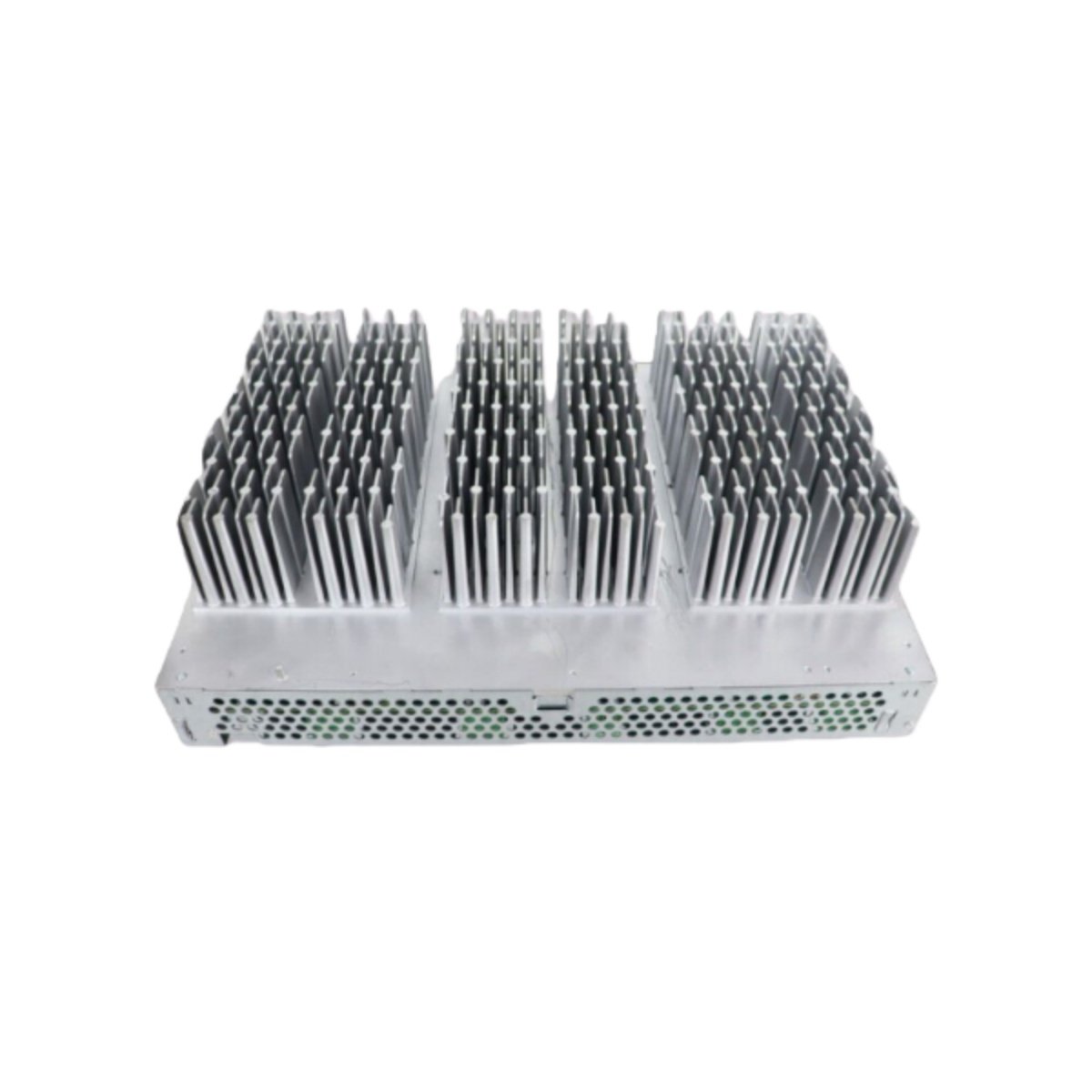

The DSQC663 features a rugged mechanical design for industrial environments. A large aluminum heat sink dissipates heat from the IGBT power module effectively. A temperature-controlled fan provides additional cooling during high-load operation. Terminal blocks accept motor power, DC bus, and brake wiring securely. Fiber optic connectors ensure reliable communication without electrical interference. LED indicators show operational status and fault conditions for quick troubleshooting.
Application in Robotic Systems
Engineers use the DSQC663 to power individual axes in multi-axis robot systems. Multiple drive units combine to control all axes of an industrial robot arm. Each drive manages one axis with precise coordination from the central controller. Common applications include material handling, welding, assembly, and painting robots. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this drive ensures reliable system operation. Its modular design simplifies maintenance and reduces spare parts inventory.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
