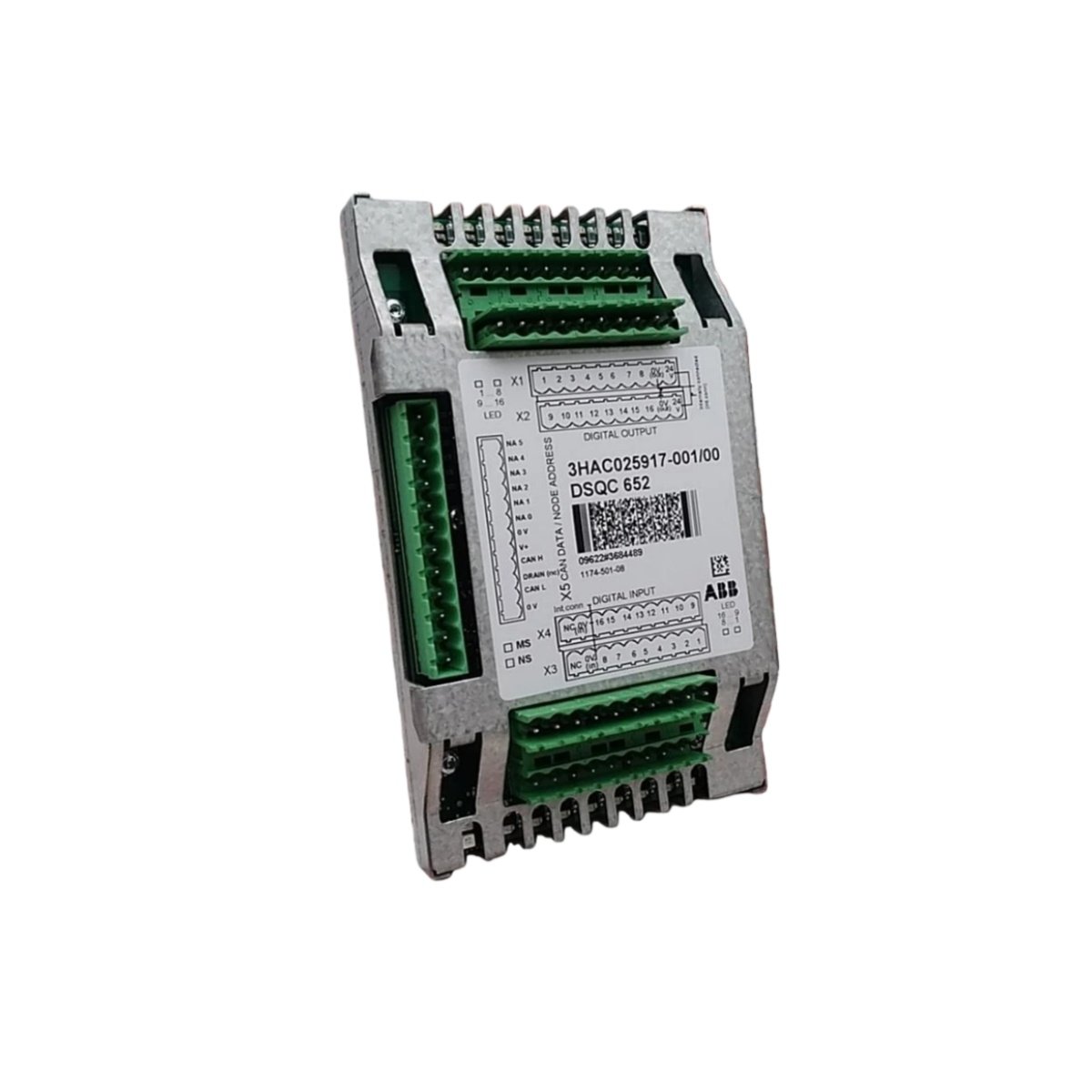

The DSQC652 from ABB operates as a dedicated digital I/O unit for industrial robot controller systems. This module provides reliable signal interface between the robot controller and field devices such as sensors, actuators, and pushbuttons. Its compact design delivers multiple input and output channels in a single, space-saving package. Therefore, automation cells achieve efficient signal distribution without requiring multiple separate I/O modules.
Weighing approximately 1.10 lbs (0.50 kg), the DSQC652 features a rugged industrial enclosure suitable for direct mounting within ABB robot controller cabinets. The module accepts 24V DC digital input signals from proximity sensors, limit switches, and operator interface devices. It provides 24V DC digital outputs for controlling indicators, relays, contactors, and small actuators. Additionally, the unit incorporates optical isolation to protect the robot controller from electrical noise and voltage transients.
Comprehensive Digital I/O Capabilities
The DSQC652 includes multiple digital input channels with built-in filtering to reject noise and contact bounce from mechanical switches. Each output channel features electronic short-circuit protection that automatically resets after fault conditions clear. The module supports both sinking and sourcing output configurations, accommodating various field device wiring requirements. This flexibility simplifies integration with existing equipment while reducing the need for interface conversion components.
Advanced Diagnostic and Status Features
This I/O unit provides individual LED indicators for each input and output channel, displaying real-time signal status at a glance. Built-in power monitoring verifies that field-side supply voltage remains within acceptable operating ranges during normal operation. The module communicates channel status and diagnostic information to the main robot controller for comprehensive system monitoring. These diagnostic features enable maintenance personnel to quickly identify wiring faults or device failures without external test equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Product Type | Digital I/O Unit |
| Product Line | DSQC Series |
| Part Number | DSQC652 |
| Weight | 1.10 lbs (0.50 kg) approximately |
| Input Type | 24V DC digital inputs |
| Output Type | 24V DC digital outputs |
| Protection | Electronic short-circuit protection, Automatic reset |
| Isolation | Optical isolation |
| Input Filtering | Built-in noise rejection |
| Output Configuration | Sinking and sourcing compatible |
| Mounting Type | Cabinet mounting |
| Diagnostic Indicators | LED per channel, Power status LED |
| Operating Temperature | 0°C to 55°C |
| Application | ABB industrial robot systems |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
