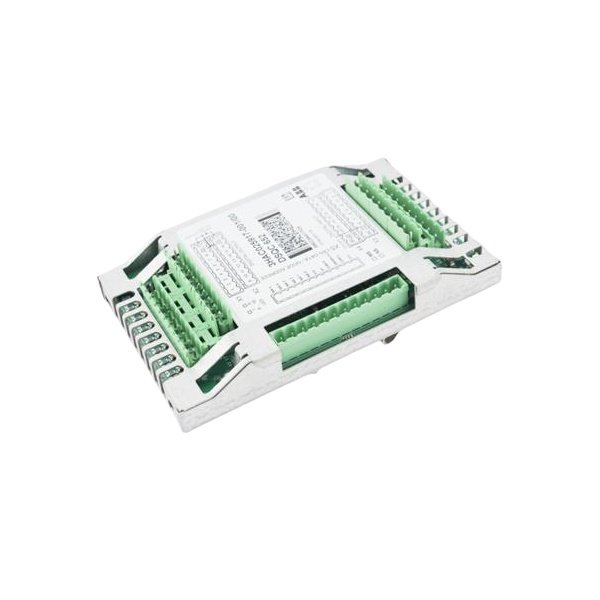

The DSQC652 3HAC025917-001 from ABB serves as a reliable digital I/O unit for industrial robot controller systems. This module provides seamless signal interfacing between the robot controller and field-mounted devices. Its robust construction ensures dependable operation in demanding manufacturing environments with continuous duty cycles. Consequently, automation cells maintain consistent communication with sensors, actuators, and operator interface components.
Weighing approximately 1.10 lbs (0.50 kg), the DSQC652 3HAC025917-001 features a compact industrial enclosure suitable for direct mounting within ABB robot controller cabinets. The module accepts 24V DC digital input signals from proximity sensors, limit switches, pushbuttons, and safety devices. It provides 24V DC digital outputs for controlling indicator lamps, relays, contactors, and small pneumatic actuators. Additionally, the unit incorporates optical isolation to protect the robot controller from electrical noise and voltage transients originating in the field.
Comprehensive Digital I/O Configuration
The DSQC652 3HAC025917-001 includes multiple digital input channels with built-in filtering to reject electrical noise and contact bounce. Each output channel features electronic short-circuit protection that automatically resets after fault conditions clear without fuse replacement. The module supports both sinking and sourcing output configurations, accommodating various field device wiring standards and preferences. This flexibility significantly simplifies integration with existing equipment while reducing the need for additional interface conversion components.
Advanced Diagnostic and Monitoring Features
This I/O unit provides individual LED indicators for each input and output channel, displaying real-time signal status for immediate visual verification. Built-in power monitoring continuously verifies that field-side supply voltage remains within acceptable operating ranges during normal production. The module communicates detailed channel status and diagnostic information to the main robot controller for comprehensive system monitoring. These diagnostic features enable maintenance personnel to quickly identify wiring faults or device failures without external test equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Product Type | Digital I/O Unit |
| Product Line | DSQC Series |
| Part Number | DSQC652 3HAC025917-001 |
| Weight | 1.10 lbs (0.50 kg) approximately |
| Input Type | 24V DC digital inputs |
| Output Type | 24V DC digital outputs |
| Input Filtering | Built-in noise rejection |
| Output Protection | Electronic short-circuit protection, Automatic reset |
| Output Configuration | Sinking and sourcing compatible |
| Isolation | Optical isolation |
| Power Monitoring | Continuous field supply verification |
| Mounting Type | Cabinet mounting |
| Diagnostic Indicators | LED per channel, Power status LED |
| Operating Temperature | 0°C to 55°C |
| Application | ABB industrial robot systems |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
