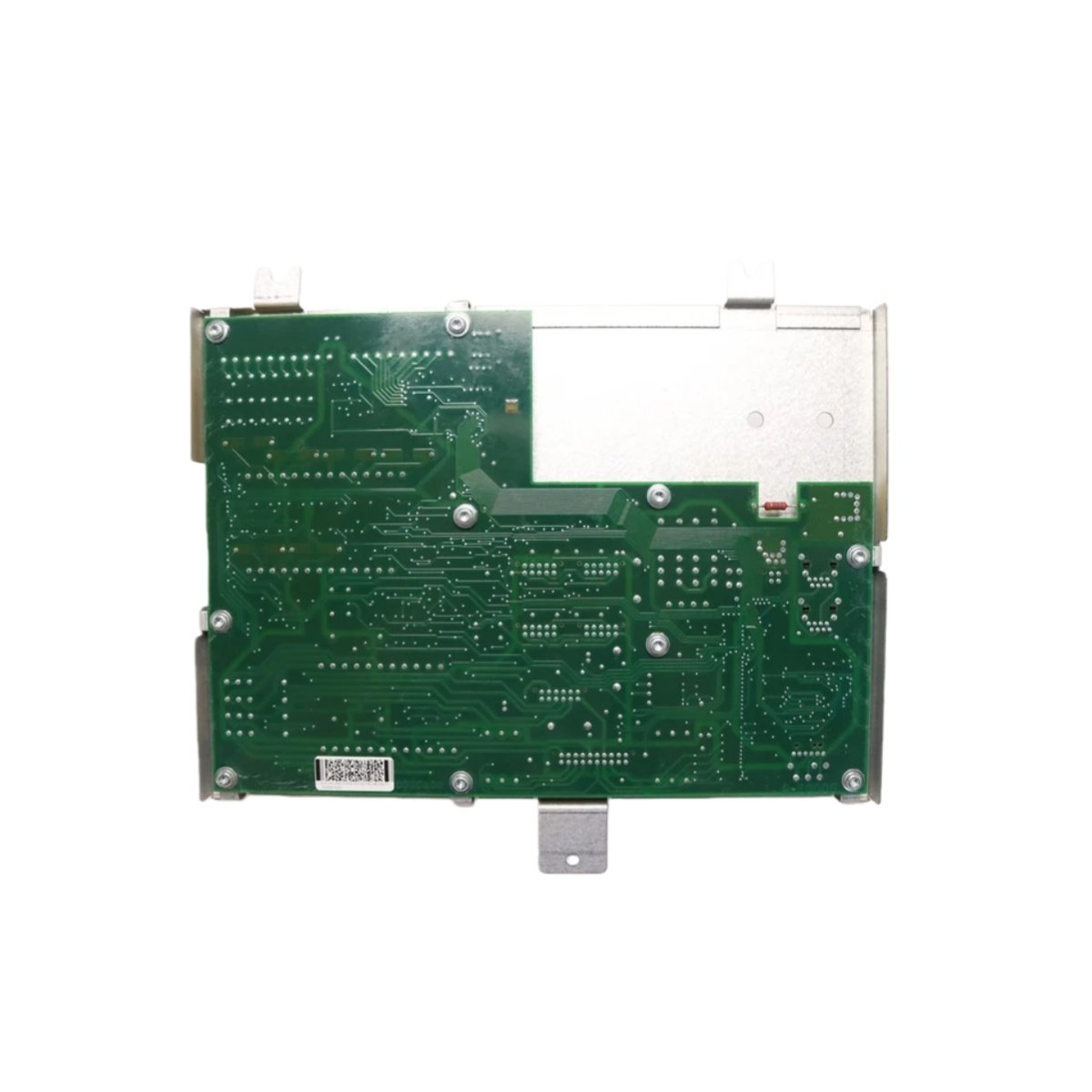

The DSQC643 from ABB serves as an integrated panel board for industrial robot controller systems. This unit provides centralized termination points for field wiring, simplifying connections between the robot controller and external devices. Its organized layout accommodates various signal types including digital I/O, safety circuits, and power distribution. Consequently, installation technicians achieve cleaner control cabinets with reduced wiring errors and simplified troubleshooting access.
Weighing approximately 2.65 lbs (1.20 kg), the DSQC643 features a robust mounting plate suitable for secure installation within ABB robot controller cabinets. The panel board includes multiple terminal blocks for field device connections, clearly labeled for easy identification during wiring and maintenance. It provides dedicated sections for different signal categories, separating power wiring from sensitive control signals. Additionally, the unit incorporates DIN rail mounting provisions for adding supplementary components as application requirements dictate.
Comprehensive Wiring and Termination Capabilities
The DSQC643 accepts field wiring from various devices including safety sensors, pushbuttons, indicators, and peripheral equipment. Its terminal blocks accommodate a wide range of wire gauges, simplifying connections for different field device requirements. The panel board includes integrated grounding points and shield termination provisions for signal integrity in electrically noisy environments. These features significantly reduce installation time while ensuring reliable long-term connections in demanding industrial settings.
Advanced Organization and Diagnostic Features
This panel board incorporates clearly marked designations that correspond to controller I/O mapping, reducing commissioning time for new installations. Built-in test points allow maintenance personnel to safely measure signals without disconnecting field wiring during troubleshooting. LED indicators on connected modules remain visible through panel board cutouts, providing immediate status feedback during normal operation. These organizational features enable maintenance teams to quickly identify and resolve wiring or device issues.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Product Type | Panel Board |
| Product Line | DSQC Series |
| Part Number | DSQC643 |
| Weight | 2.65 lbs (1.20 kg) approximately |
| Termination Type | Multiple terminal blocks |
| Signal Segregation | Power and control signal separation |
| Wire Gauge Support | Wide range for field devices |
| Grounding | Integrated grounding points |
| Shield Termination | Provisions for cable shields |
| Mounting Type | Cabinet mounting with DIN rail provisions |
| Labeling | Clearly marked designations |
| Test Points | Built-in for troubleshooting |
| Application | ABB industrial robot controllers |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
