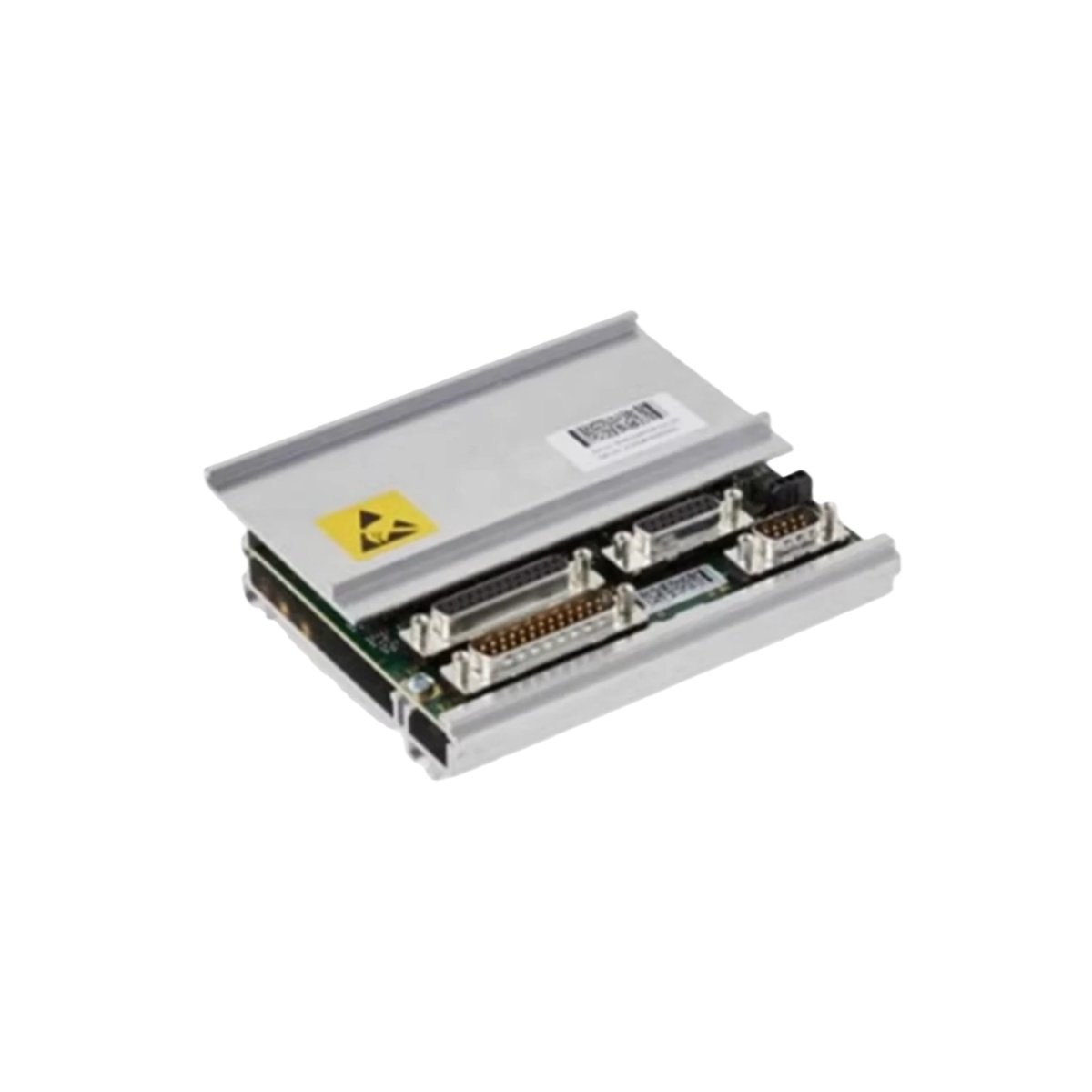

The DSQC633 3HAC022286-001 from ABB functions as a precision serial measurement unit for industrial robot systems. This module processes feedback signals from resolvers and encoders to determine precise axis positions and velocities. Its high-resolution design ensures accurate robot positioning for demanding applications such as arc welding, assembly, and material handling. Therefore, robotic cells achieve repeatable path accuracy and consistent product quality across production cycles.
Weighing approximately 1.32 lbs (0.60 kg), the DSQC633 3HAC022286-001 features a compact metal enclosure suitable for direct mounting within ABB robot controller cabinets. The module interfaces with multiple axis feedback devices simultaneously, processing position data for coordinated multi-axis motion control. It provides excitation signals for resolvers while decoding quadrature signals from incremental encoders. Additionally, the unit includes signal conditioning circuitry to maintain measurement accuracy even in electrically noisy industrial environments.
Comprehensive Measurement and Feedback Processing
The DSQC633 3HAC022286-001 accepts input from various feedback devices including resolvers, sin/cos encoders, and incremental encoders. Its high-speed processing converts analog feedback signals into digital position values for the robot motion controller. The module continuously monitors feedback integrity, detecting conditions such as signal loss or wiring faults. This continuous monitoring ensures safe robot operation by immediately reporting any feedback anomalies to the control system.
Advanced Diagnostic and Status Features
This serial measurement unit incorporates built-in test circuitry that verifies proper operation of feedback channels during system startup. LED indicators provide immediate visual confirmation of power status, communication activity, and channel-specific fault conditions during normal operation. The module reports detailed diagnostic information to the main robot controller, enabling precise identification of feedback system issues. These diagnostic features significantly reduce troubleshooting time when addressing motion-related problems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Product Type | Serial Measurement Unit |
| Product Line | DSQC Series |
| Part Number | DSQC633 3HAC022286-001 |
| Weight | 1.32 lbs (0.60 kg) approximately |
| Feedback Types | Resolvers, Sin/Cos encoders, Incremental encoders |
| Axis Support | Multiple axes simultaneously |
| Excitation Output | For resolver feedback devices |
| Signal Conditioning | Built-in filtering and amplification |
| Integrity Monitoring | Continuous feedback validation |
| Mounting Type | Cabinet mounting |
| Diagnostic Indicators | LED status indicators |
| Communication | Serial interface to robot controller |
| Operating Temperature | 0°C to 55°C |
| Application | ABB industrial robot position feedback |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
