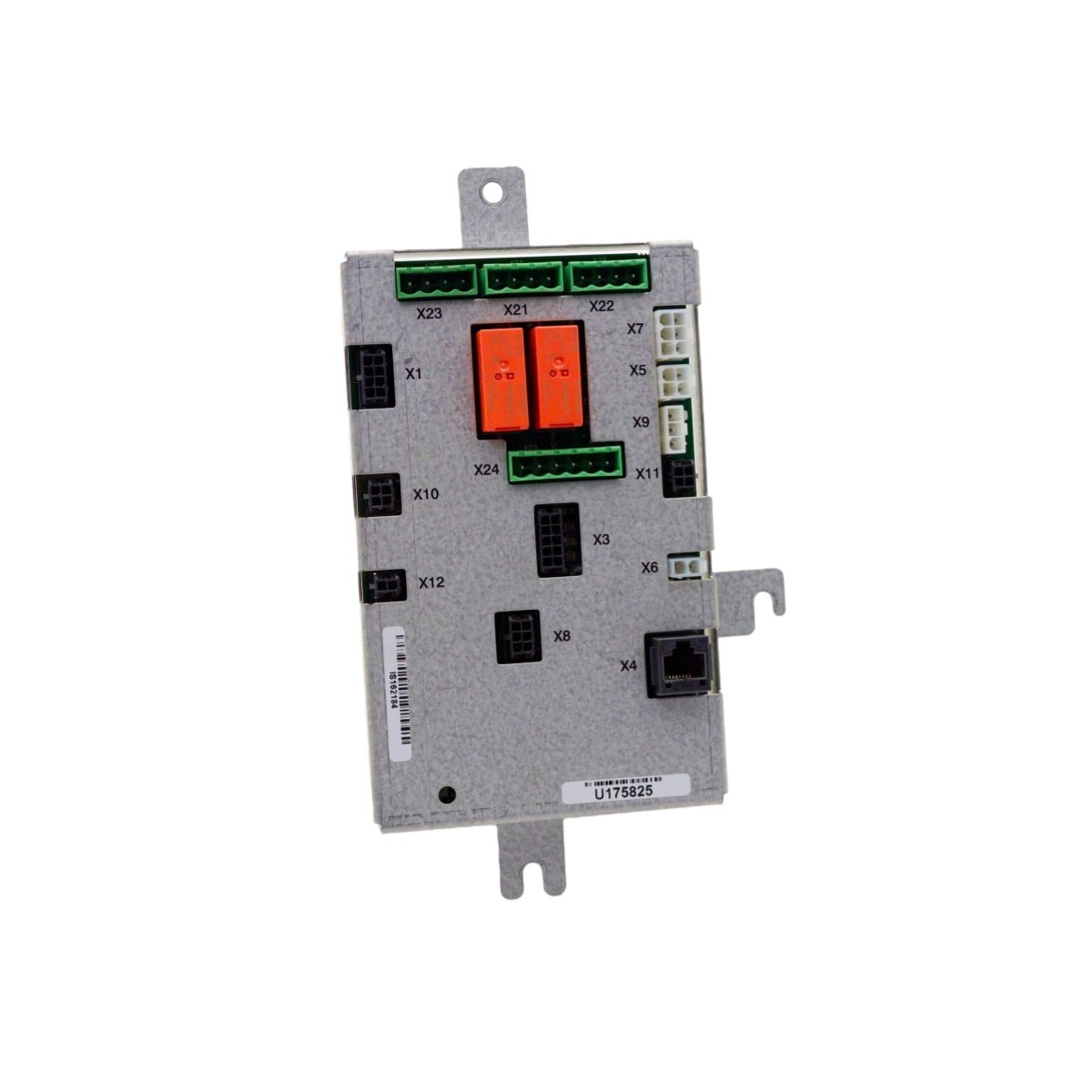

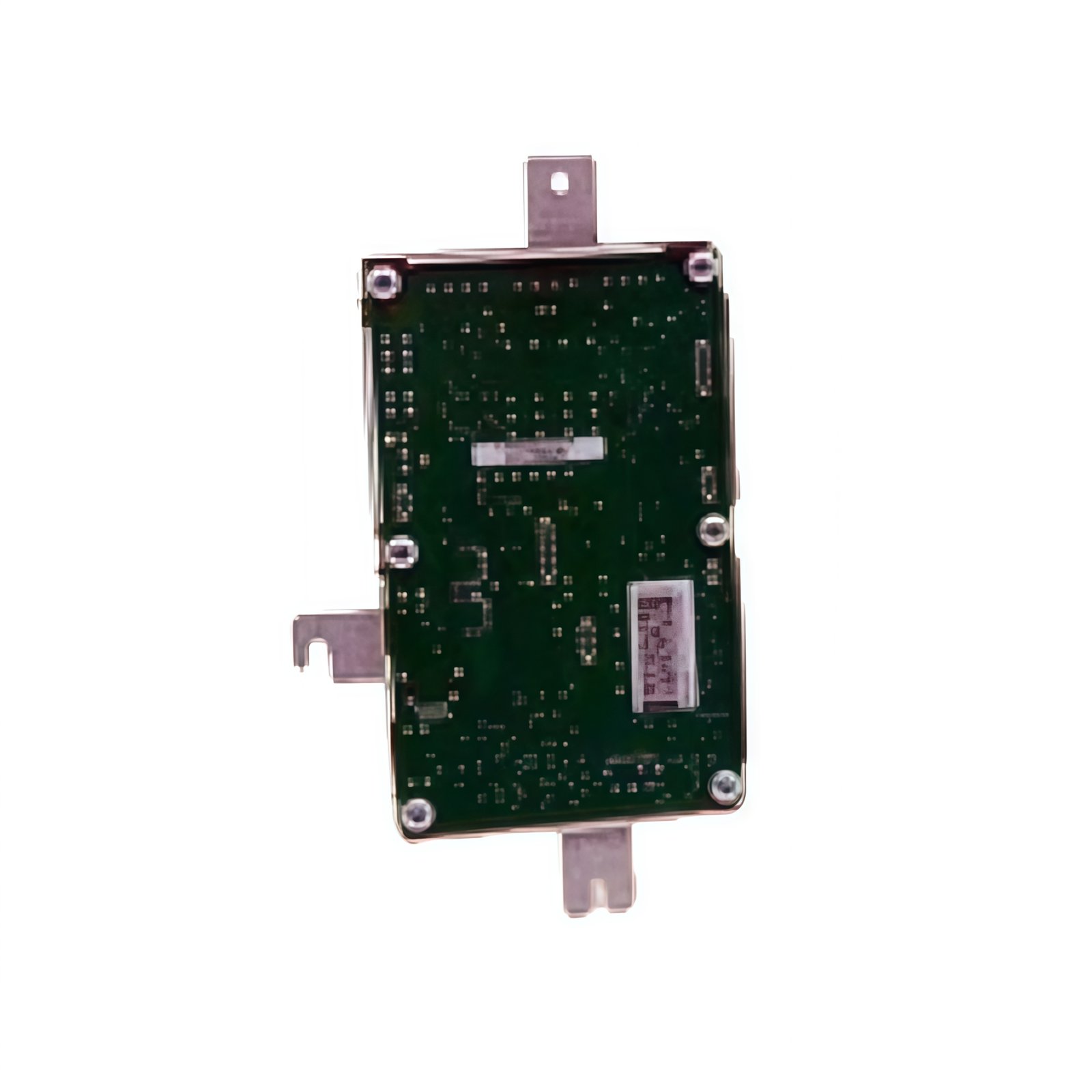

The DSQC611 from ABB serves as a dedicated contactor unit designed for industrial robot controller applications. This module provides reliable switching of high-power circuits including motor brakes, auxiliary loads, and safety systems. Its compact design integrates multiple contactors within a single housing, reducing panel space requirements. Consequently, robotic cells achieve clean, organized control cabinets with simplified wiring and maintenance access.

Weighing approximately 3.30 lbs (1.50 kg), the DSQC611 features a rugged industrial enclosure suitable for direct mounting within ABB robot controller cabinets. The unit contains multiple contactors with varying contact configurations to accommodate different load types and control requirements. Each contactor includes auxiliary contacts for status feedback to the robot control system. Additionally, the module incorporates built-in suppression components to minimize electrical noise during contactor switching operations.

Comprehensive Switching Capabilities

The DSQC611 provides reliable switching for motor brakes, ensuring safe hold during robot standstill and emergency stop conditions. Its auxiliary contactors handle various control functions including safety circuit monitoring and peripheral equipment coordination. The unit supports both AC and DC load switching, accommodating diverse field device requirements within the robot cell. Each contactor features generously rated contacts for long operational life even under frequent switching demands.

Advanced Protection and Monitoring Features

This contactor unit incorporates mechanical interlocks where required to prevent simultaneous activation of conflicting loads or safety functions. Built-in LED indicators provide immediate visual confirmation of contactor coil status and auxiliary contact states during normal operation. The module includes integrated snubber circuits that suppress back-EMF from inductive loads, protecting sensitive electronics. These protective features significantly extend contactor life while reducing electrical noise in the control system.
