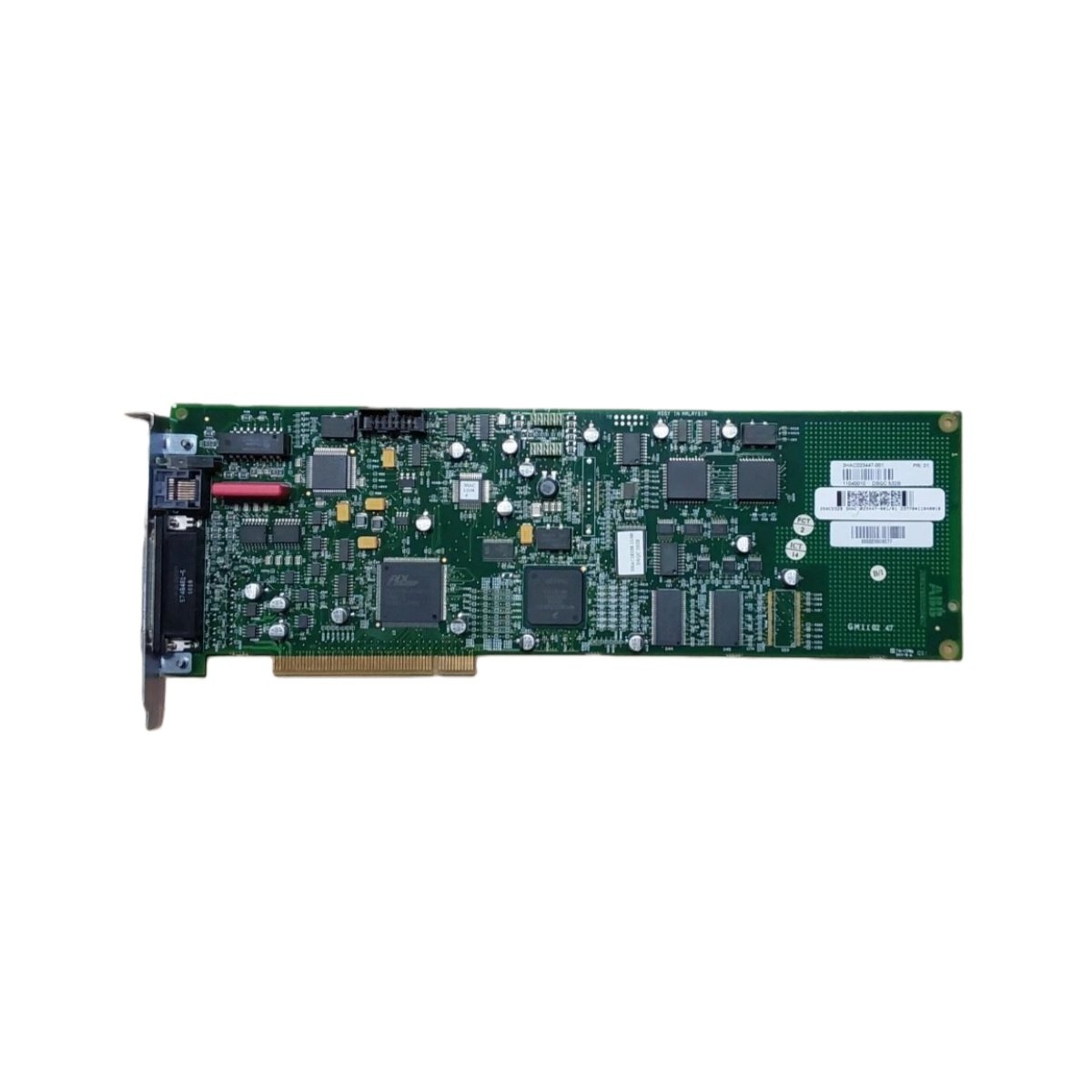

The ABB DSQC532B 3HAC023447-001 functions as a dedicated I/O computer card for distributed control in ABB robotic systems. This module processes input and output signals locally to offload the main robot controller. You can integrate this card for real-time management of workcell devices and automation equipment.

Technical Specifications

Intelligent Processing Capabilities

The DSQC532B 3HAC023447-001 features a 32-bit RISC processor running at 133 MHz for autonomous I/O handling. This distributed intelligence significantly reduces communication demands on the main robot controller. You therefore achieve faster response times for peripheral equipment and improved system performance.

With 16 MB RAM and 8 MB Flash memory, the card executes complex I/O programs independently. 4 MB of user memory stores custom logic sequences for workcell coordination. A lithium battery provides backup for RAM data during power outages, maintaining integrity for up to 5 years.

Comprehensive I/O Configuration

We equipped this I/O computer card with 16 digital inputs and 16 digital outputs operating at 24 VDC. Digital inputs draw only 6 mA, minimizing loading on field sensors. Each output delivers 0.5 A with short circuit protection for driving relays, solenoids, and indicators.

4 analog input channels feature 12-bit resolution and accept 0-10 V or 4-20 mA signals from pressure transmitters and position sensors. 2 analog output channels with 10-bit resolution provide 0-10 V control signals for drives and proportional valves.

Multiple Communication Interfaces

The ABB DSQC532B includes DeviceNet for high-speed communication with robot controllers and network devices. An RS-232C port connects to HMIs, barcode scanners, and printers. 10 Mbps Ethernet enables programming access and data exchange with plant networks.

500 V isolation between field wiring and logic circuitry protects the card from voltage transients and ground loops. LED indicators display power status, processor activity, I/O states, and network link status for easy diagnostics.

Mechanical Design

Measuring 280 mm x 70 mm x 210 mm and weighing 1.5 kg, the DSQC532B 3HAC023447-001 fits standard ABB control cabinet layouts. The slim 70 mm width allows efficient space utilization alongside other DSQC series cards. 37-pin D-sub, 9-pin D-sub, and RJ45 connectors provide reliable field wiring connections.

The card draws only 6 W typical from the 24 VDC backplane supply. Low power consumption minimizes thermal loading within the control cabinet.

Local Control Functions

This I/O computer card executes standalone logic sequences independently of the main robot controller. You can implement safety interlocks, tool control sequences, and workcell coordination locally. Distributed processing simplifies programming and improves response times for critical operations.

For similar industrial automation components, examine the RMS TSG TZ C Static Trip protection device available through equipment suppliers. Both components demonstrate ABB’s commitment to intelligent distributed control.
