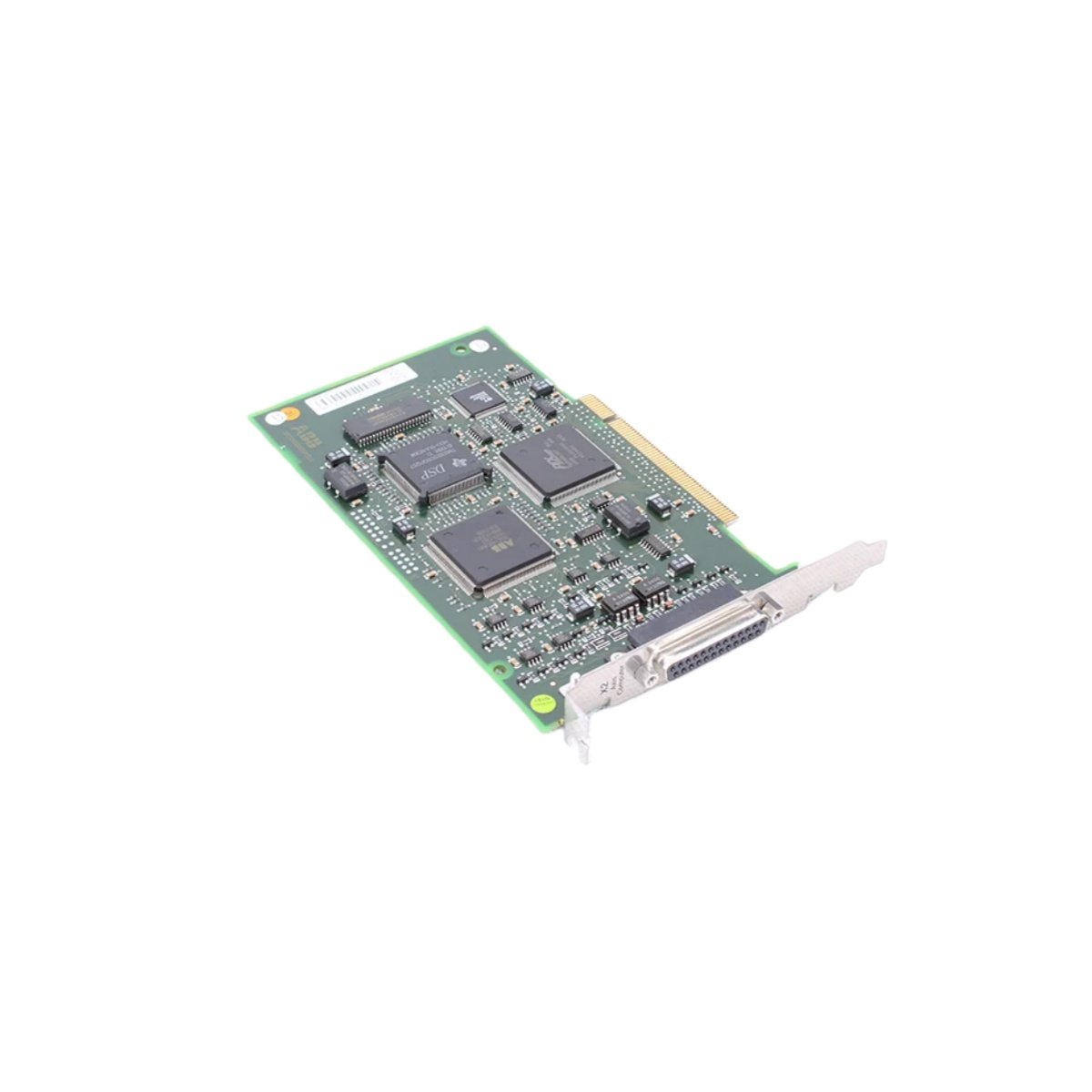

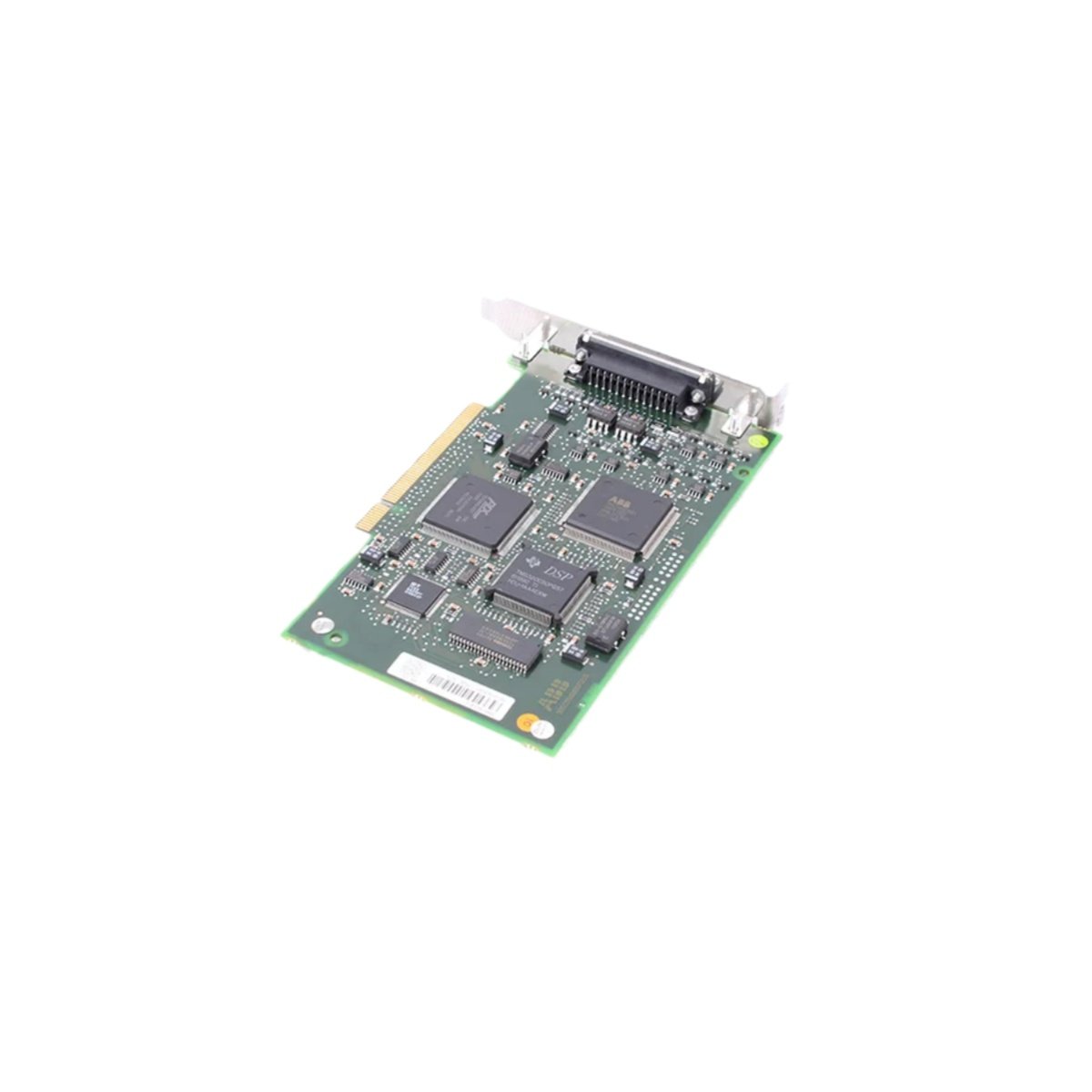

The ABB DSQC503 functions as a dedicated PLC module for ABB industrial control systems. This unit provides reliable logic processing and I/O handling for automated machinery and processes. You can integrate this module into new or existing ABB control architectures.

Technical Specifications

Compact Processing Power

The DSQC503 features a 32-bit RISC processor running at 200 MHz for efficient program execution. This processing power handles medium-complexity automation tasks including machine control and material handling. You therefore achieve reliable performance without excess cost.

Program memory of 512 KB and data memory of 128 KB accommodate substantial application code. 32 KB of retentive memory with lithium battery backup preserves critical data during power outages. The battery maintains data for approximately 3 years under normal conditions.

Flexible I/O Expansion

This PLC module supports up to 1024 digital I/O points and 256 analog I/O channels through expansion modules. You can scale the system to match application requirements exactly. The modular approach minimizes initial costs while allowing future expansion.

The DSQC503 integrates seamlessly with ABB AC500 and S500 I/O platforms. You simply connect expansion modules via the backplane or fieldbus. This compatibility simplifies system design and reduces engineering time.

Multiple Communication Options

We equipped this module with versatile communication ports for plant integration. RS-232 and RS-485 serial ports support MODBUS RTU protocol for connecting drives, HMIs, and remote I/O. The Ethernet port with 10/100 Mbps speed enables MODBUS TCP communication and programming access.

PROFIBUS DP slave capability allows connection to higher-level control systems. The module therefore fits easily into mixed-vendor automation architectures. LED indicators provide immediate status feedback for power, processor run state, errors, and communication activity.

Robust Mechanical Design

Measuring 110 mm x 70 mm x 85 mm and weighing only 0.3 kg, the ABB DSQC503 occupies minimal panel space. The compact housing mounts directly on 35 mm DIN rail without additional hardware. Removable screw terminals accept 24-14 AWG wiring for field connections.

The module operates on 24 VDC ±20% power, tolerating fluctuations common in industrial environments. Typical power consumption of 4 W places minimal load on control power supplies.

Environmental Durability

The DSQC503 operates reliably in -20°C to +55°C environments, suitable for most industrial facilities. The -40°C to +85°C storage range allows safe transport and inventory stocking. For similar automation components, examine the RMS TSG TZ C Static Trip protection device from equipment suppliers.

With CE, UL, CSA, and RoHS approvals, this PLC module meets global standards for industrial control equipment. Applications include packaging machines, conveyor systems, material handling, and process control.
