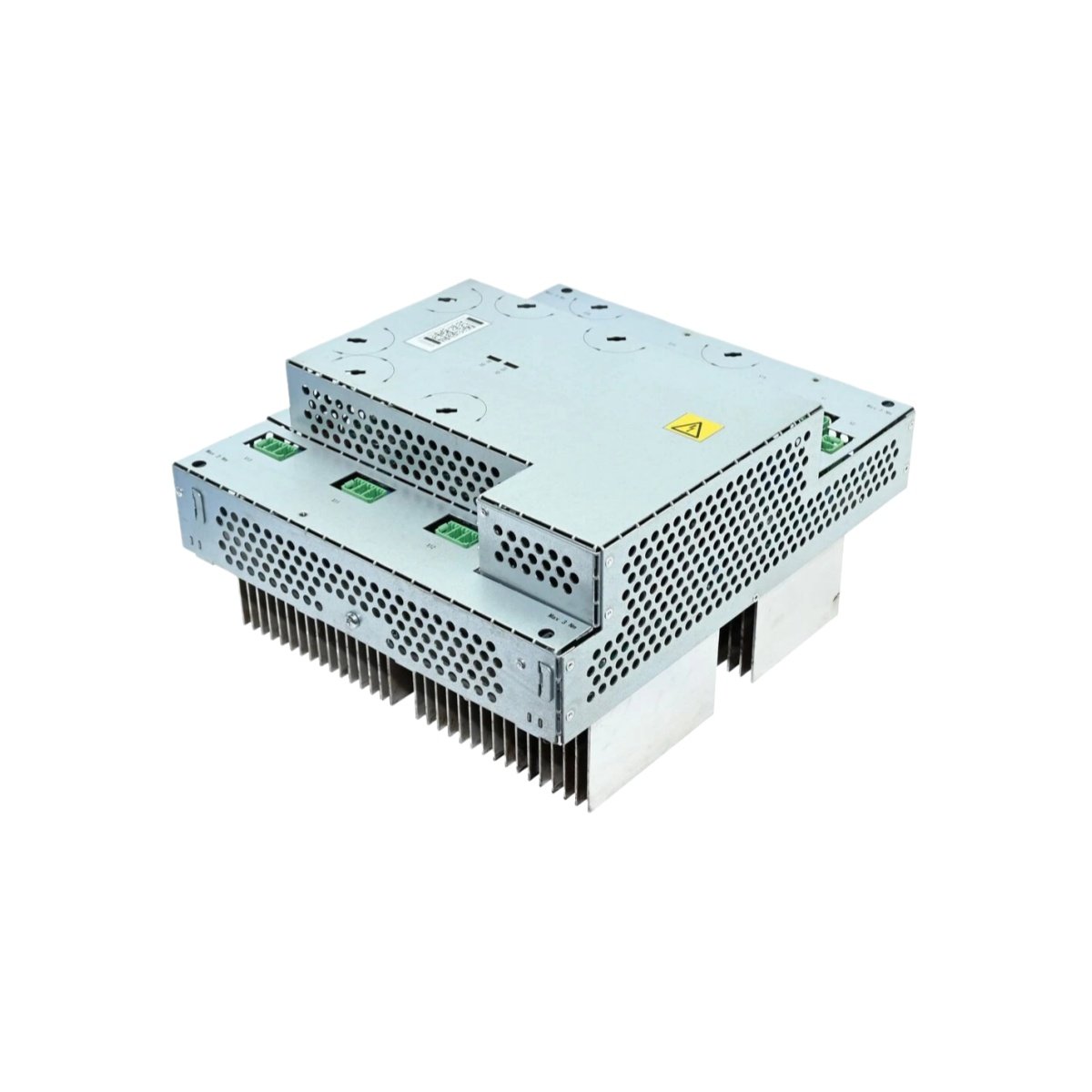

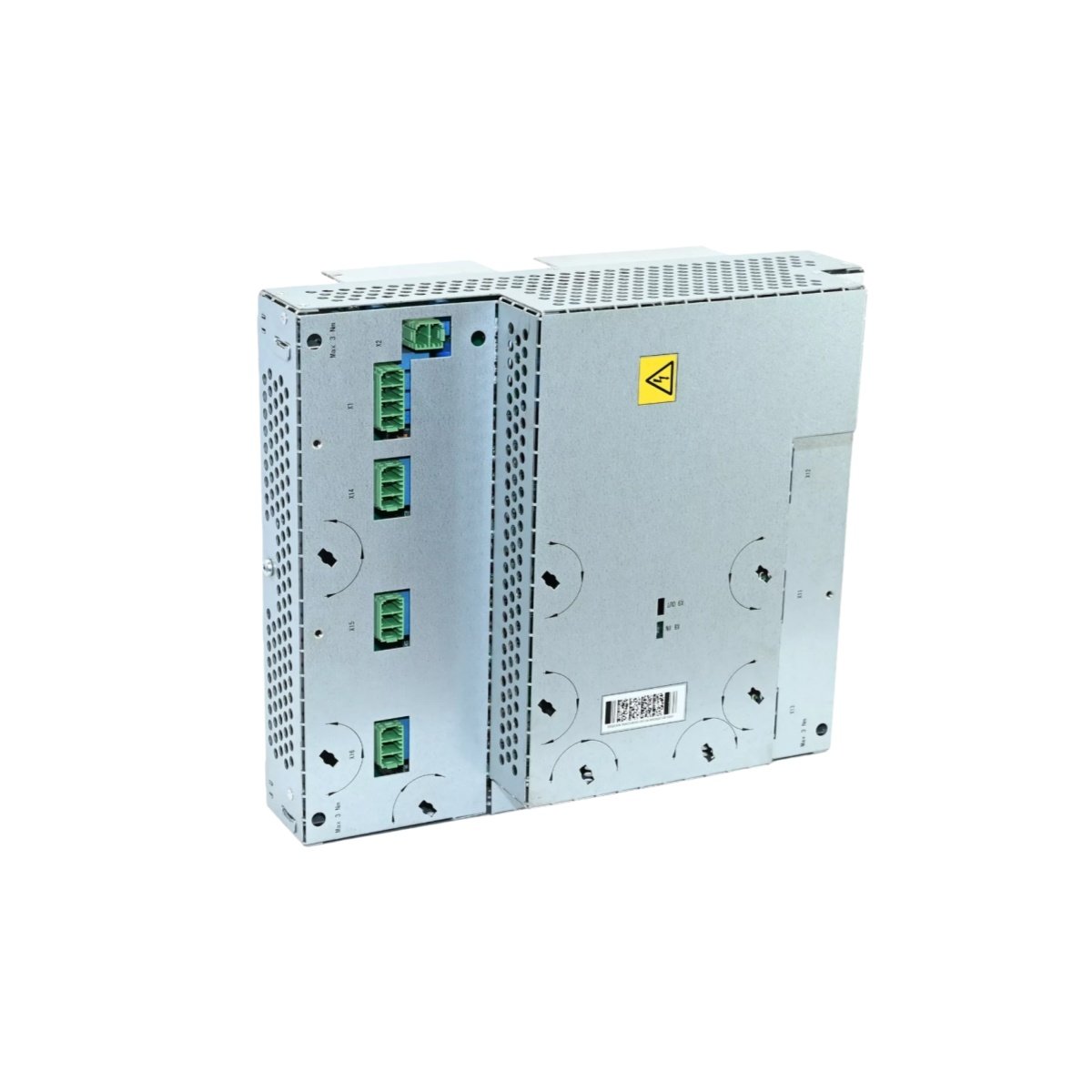

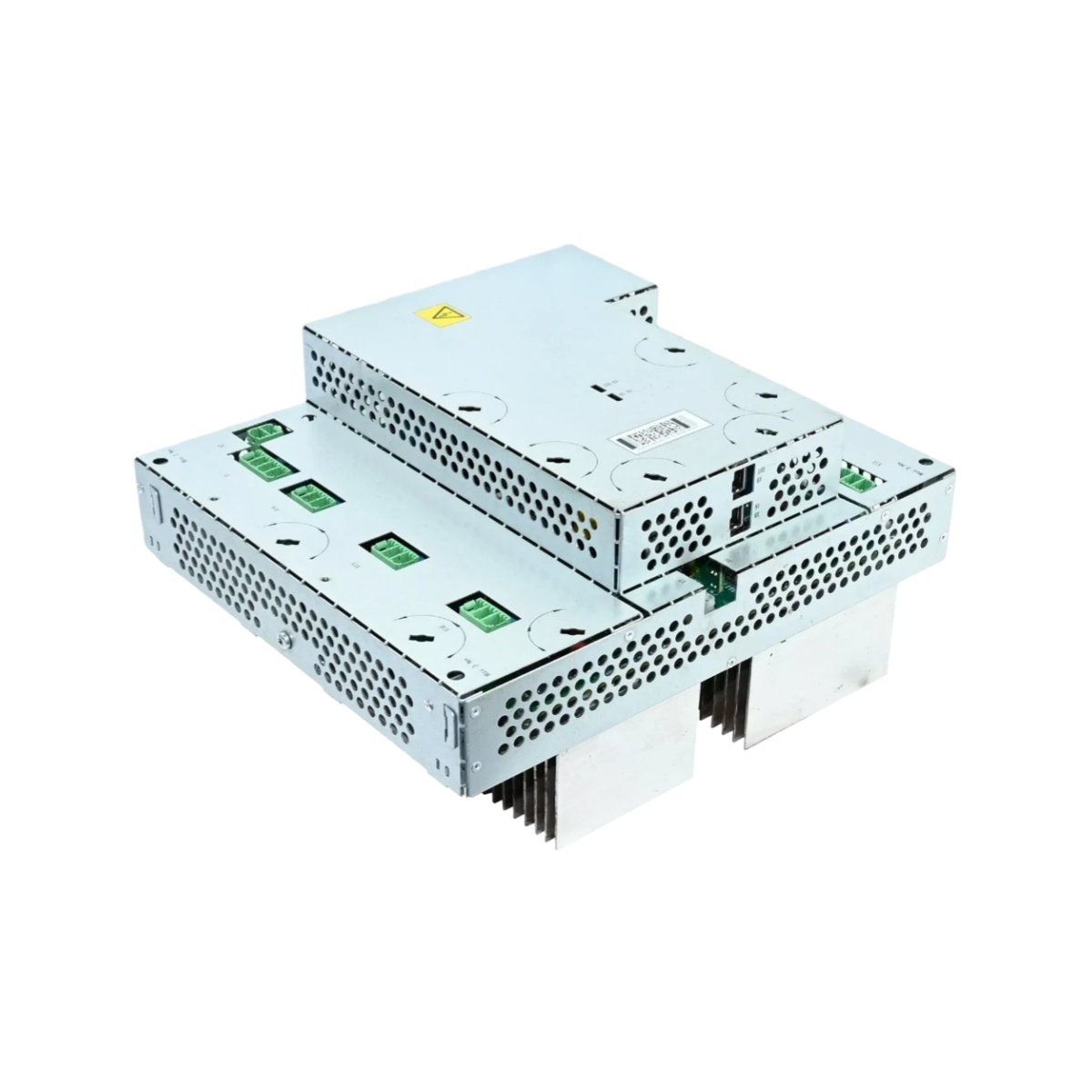

The ABB DSQC406 functions as a versatile servo drive unit for ABB industrial robot systems. This module provides precise motion control for robot axes and auxiliary servo-controlled devices. You can depend on this drive for accurate positioning and smooth velocity control.

Technical Specifications

Flexible Multi-Axis Configuration

The DSQC406 operates in either single-axis or dual-axis configuration, providing flexibility for various applications. You can drive one high-power axis or two lower-power axes from a single unit. This adaptability reduces cabinet space and component count.

Each axis delivers 3 kW rated output power with 6 kW peak for demanding motion profiles. The drive handles permanent magnet synchronous servomotors commonly used in ABB robot systems. You therefore achieve excellent dynamic response and positioning accuracy.

Robust Power and Control Design

We equipped this servo drive with 400-480 VAC, 3-phase main power input, matching global industrial standards. The 24 VDC control supply powers logic circuits separately from the main power stage. This separation allows safe configuration and diagnostics even with main power disconnected.

SERCOS fiber optic communication ensures high-speed, noise-immune data exchange with the robot controller. Fiber optics eliminate electrical interference concerns in noisy industrial environments. The drive supports resolver or encoder feedback for precise motor control.

Comprehensive Protection Features

The ABB DSQC406 includes multiple protection mechanisms for reliable operation. Overcurrent protection prevents damage from motor shorts or overloads. Overvoltage protection safeguards against regenerative voltage spikes during deceleration. Overtemperature monitoring reduces power or shuts down before thermal damage occurs.

LED indicators provide immediate visual feedback for power status, operational state, and fault conditions. Technicians can quickly diagnose issues without external test equipment.

Thermal Management

Measuring 420 mm x 70 mm x 260 mm and weighing 8.5 kg, the drive incorporates a built-in fan for forced air cooling. This thermal design maintains safe operating temperatures even at full rated output. You can therefore achieve continuous duty cycles without derating.

The drive operates reliably in 5°C to +45°C environments typical of industrial facilities. The -25°C to +70°C storage range allows safe transport and inventory management.

Seamless Robot Integration

The DSQC406 connects directly to IRC5 and S4C+ robot controllers through the SERCOS fiber optic network. Configuration occurs through standard robot programming software. The drive automatically recognizes motor types and parameters for simplified setup.

For similar industrial automation components, examine the RMS TSG TZ C Static Trip protection device available through equipment suppliers. Both components demonstrate ABB’s commitment to quality motion control.

Application Versatility

This versatile servo drive suits diverse robotic applications including material handling, assembly, painting, and arc welding. The drive controls main robot axes as well as external auxiliary axes such as positioners and track motion systems. With CE, UL, CSA, and RoHS approvals, the ABB DSQC406 meets global standards for industrial drive systems.
