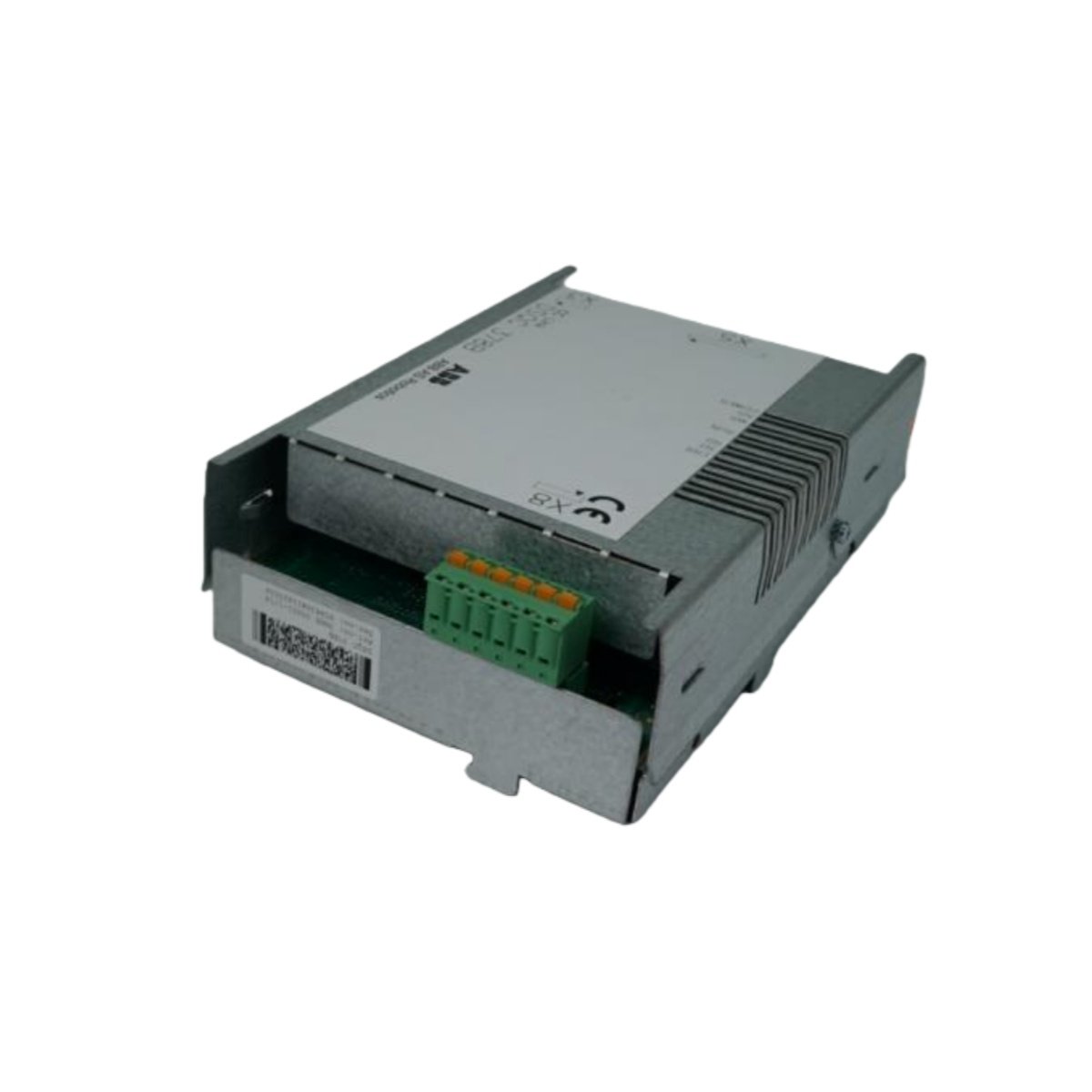

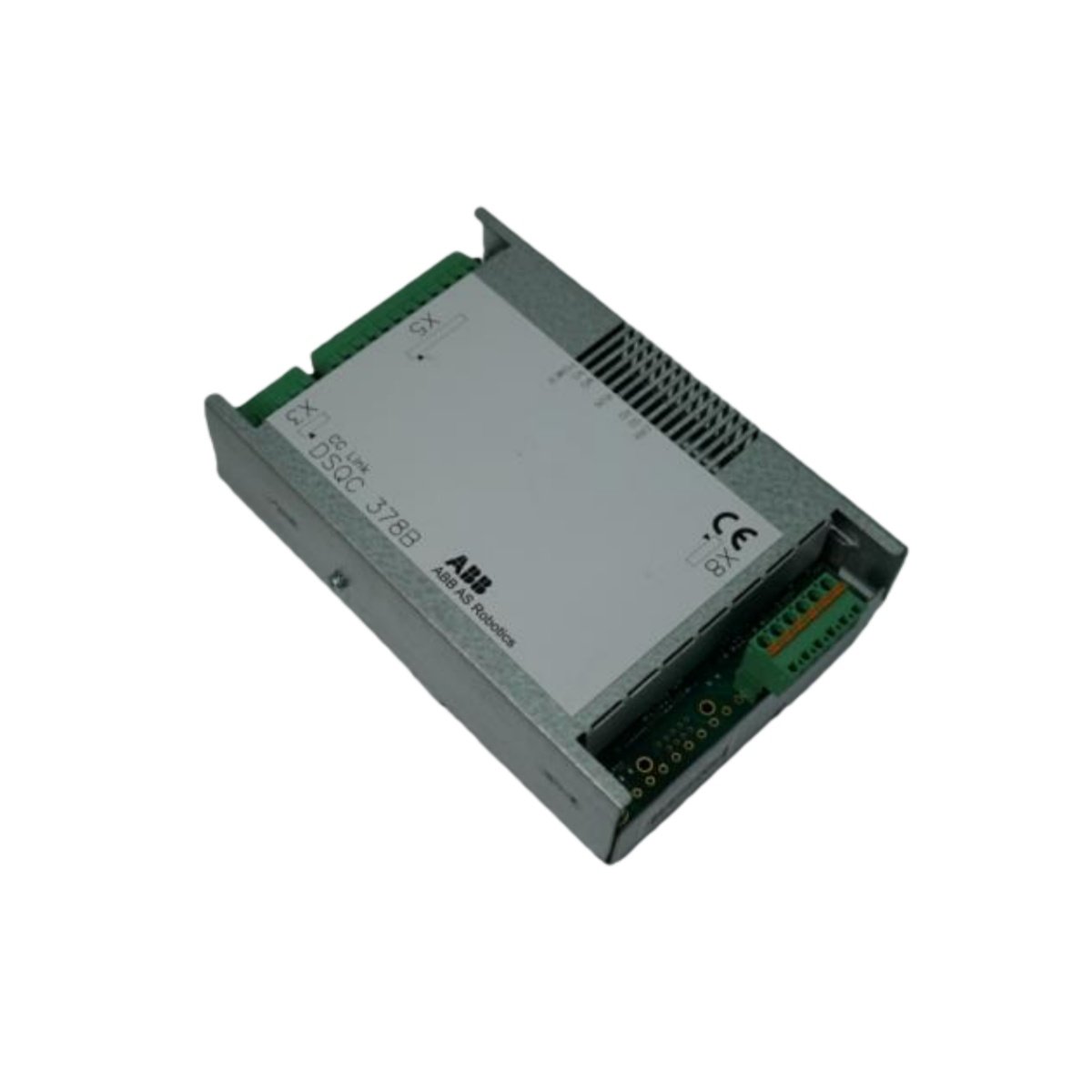

Modern robotic workcells require seamless integration with broader automation networks for coordinated system operation. The ABB DSQC378B 3HNE00421-1 provides a vital communication bridge between ABB robot controllers and DeviceNet or CC-Link industrial networks. This communication module consequently enables your robots to function as integrated components within larger manufacturing ecosystems.

Versatile Network Compatibility for Flexible Integration

Industrial facilities often employ multiple network protocols across different production areas and equipment types. The DSQC378B 3HNE00421-1 supports both DeviceNet and CC-Link networks for maximum deployment flexibility. You can therefore standardize on this single module for various network architecture requirements throughout your facility.

High-Speed Data Transfer for Real-Time Control

Time-sensitive automation applications demand rapid data exchange between controllers and field devices. The ABB DSQC378B 3HNE00421-1 achieves data transfer rates up to 1 Mbps for responsive communication. This high-speed performance ensures timely delivery of control commands and status information across the network.

Master and Slave Operating Modes

Different network topologies require flexible device roles for proper system configuration. The DSQC378B 3HNE00421-1 operates in either master or slave mode to accommodate your specific architecture. You can consequently deploy this module as a network manager or as a responsive node within existing networks.

Support for Up to 63 Network Nodes

Large-scale automation systems often require communication with numerous field devices and controllers. The ABB DSQC378B 3HNE00421-1 supports connections to up to 63 nodes on the network. This extensive capacity allows your robot controller to interact with multiple sensors, actuators, and other automation components.

Compact Form Factor for Control Cabinet Installation

Control cabinets house numerous components within limited space allocations. The DSQC378B 3HNE00421-1 measures just 120 x 60 x 30 mm and weighs only 200 grams. This compact footprint therefore simplifies installation within crowded enclosures without requiring major cabinet redesign.

Reliable 24 VDC Power Operation

Industrial environments demand components that operate from standard control power supplies. The functions on 24 VDC power commonly available in automation panels. You can therefore power this module directly from your existing control power distribution without additional converters.
