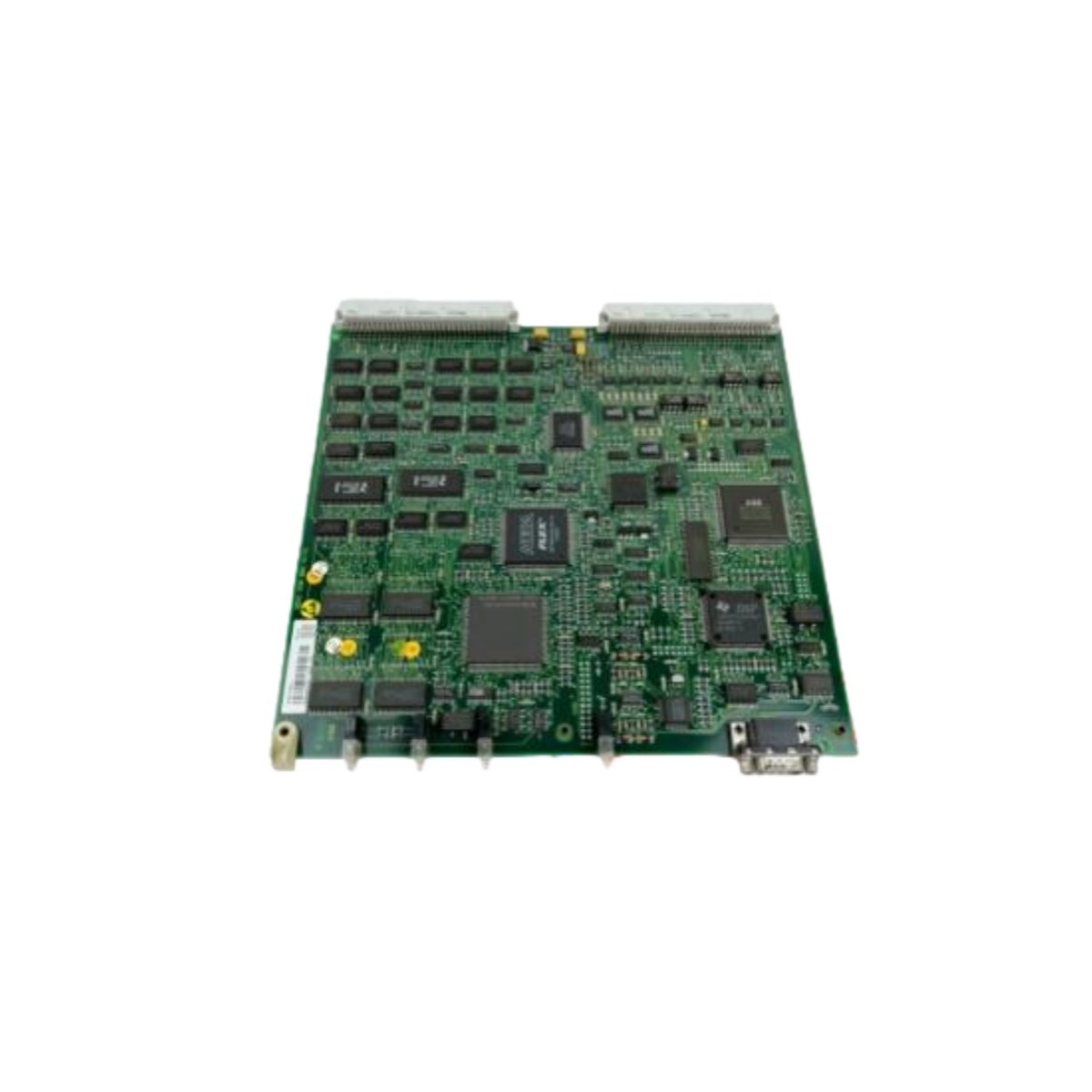

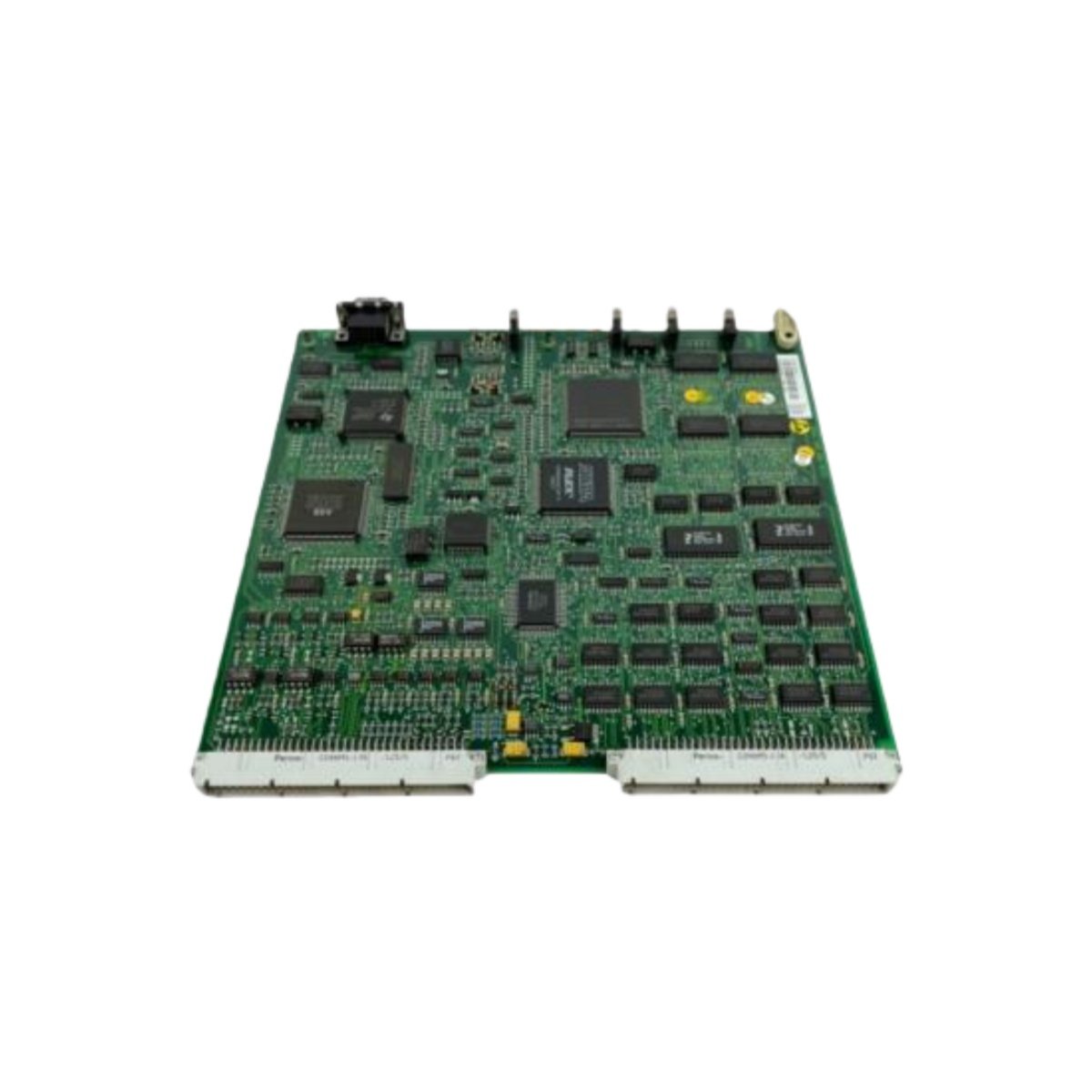

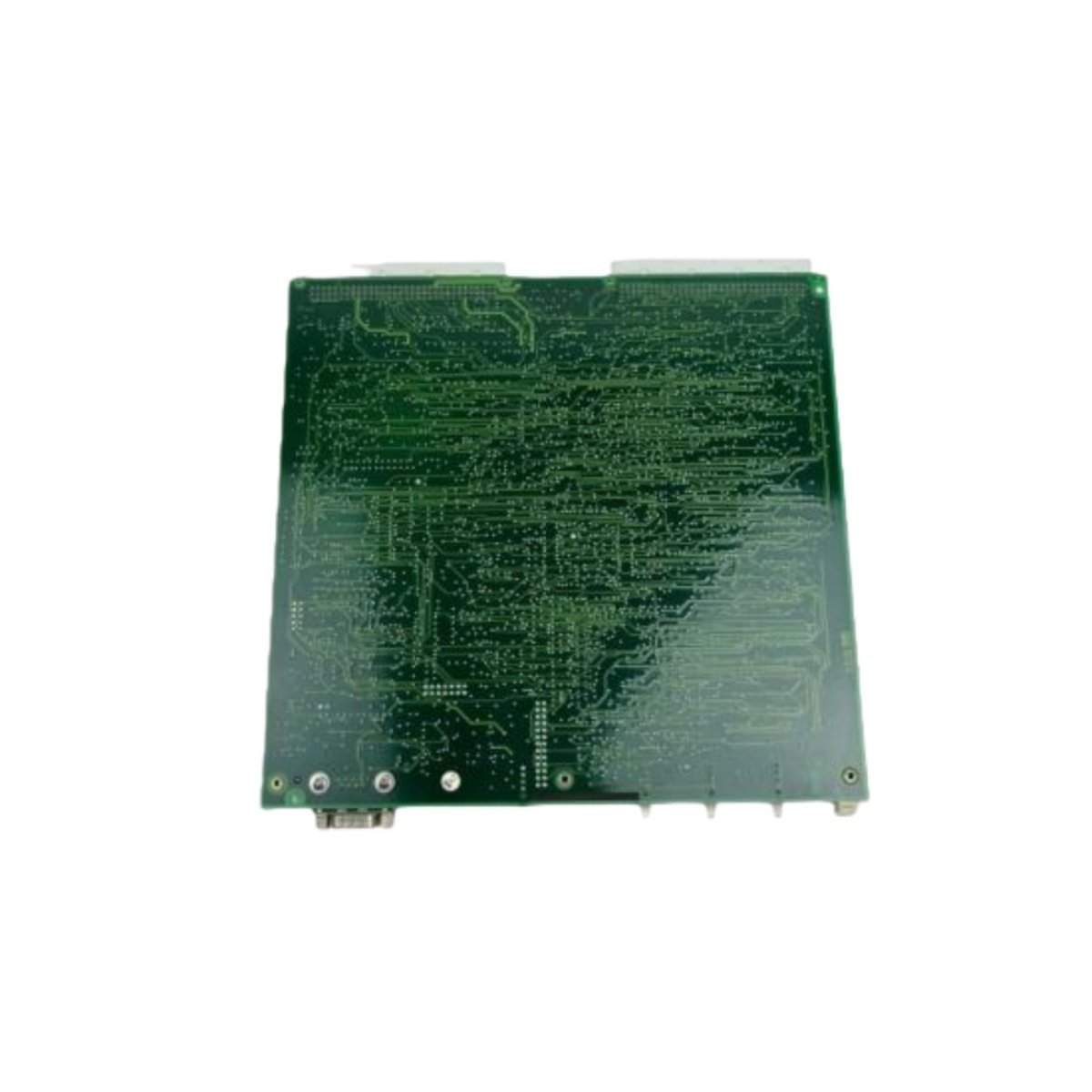

The ABB DSQC363 functions as a dedicated circuit board for ABB industrial robot controllers. This module provides essential control and interface functions within the robot control cabinet. You can depend on this board for precise communication between the robot controller and peripheral equipment.

Technical Specifications

Comprehensive I/O Integration

The DSQC363 integrates 16 digital inputs and 16 digital outputs operating at 24 VDC. Each output delivers 0.5 A for driving relays, solenoids, and indicators directly. You therefore reduce external interface hardware and simplify cabinet wiring.

For analog process signals, the board provides 4 analog input channels accepting 0-10 V or 4-20 mA signals. This flexibility accommodates various sensors including pressure transmitters, position feedback devices, and force sensors. Your robot system therefore receives accurate real-time process data.

Flexible Fieldbus Communication

We equipped the ABB DSQC363 with configurable fieldbus interfaces. You can select DeviceNet or PROFIBUS DP communication to match your existing network architecture. This adaptability simplifies integration with PLCs and higher-level control systems.

The board communicates seamlessly with ABB IRC5 and S4C+ robot controllers, ensuring reliable data exchange. LED indicators provide immediate visual feedback for power, module status, and I/O activity during operation.

Robust Mechanical Design

Measuring 260 mm x 50 mm x 200 mm and weighing 0.8 kg, the DSQC363 fits standard robot control cabinets. The slim 50 mm width allows space-efficient mounting alongside other control components. You can mount the board on DIN rail or directly on the panel using integrated mounting points.

37-pin D-sub connectors and removable terminal blocks accommodate various wiring preferences. The mixed connector types simplify both pre-fabricated cable connections and field wiring. Clear labeling ensures error-free installation.

Environmental Durability

The DSQC363 operates reliably in 0°C to +55°C environments typical of industrial facilities. The -25°C to +70°C storage range allows safe transport and inventory management. 5% to 95% non-condensing humidity tolerance ensures dependable performance in varying conditions.

For similar industrial automation components, examine the RMS TSG TZ C Static Trip protection device available through equipment suppliers. Both components demonstrate the quality expected in modern robotic systems.

Application Versatility

This circuit board suits diverse robotic applications including material handling, welding, assembly, and palletizing. The integrated I/O connects directly to grippers, tool changers, safety devices, and workcell sensors. You therefore minimize external PLC requirements and simplify overall system architecture.

With CE, UL, and CSA approvals, the ABB DSQC363 meets global standards for industrial control equipment. This certification ensures compliance for installations worldwide.
