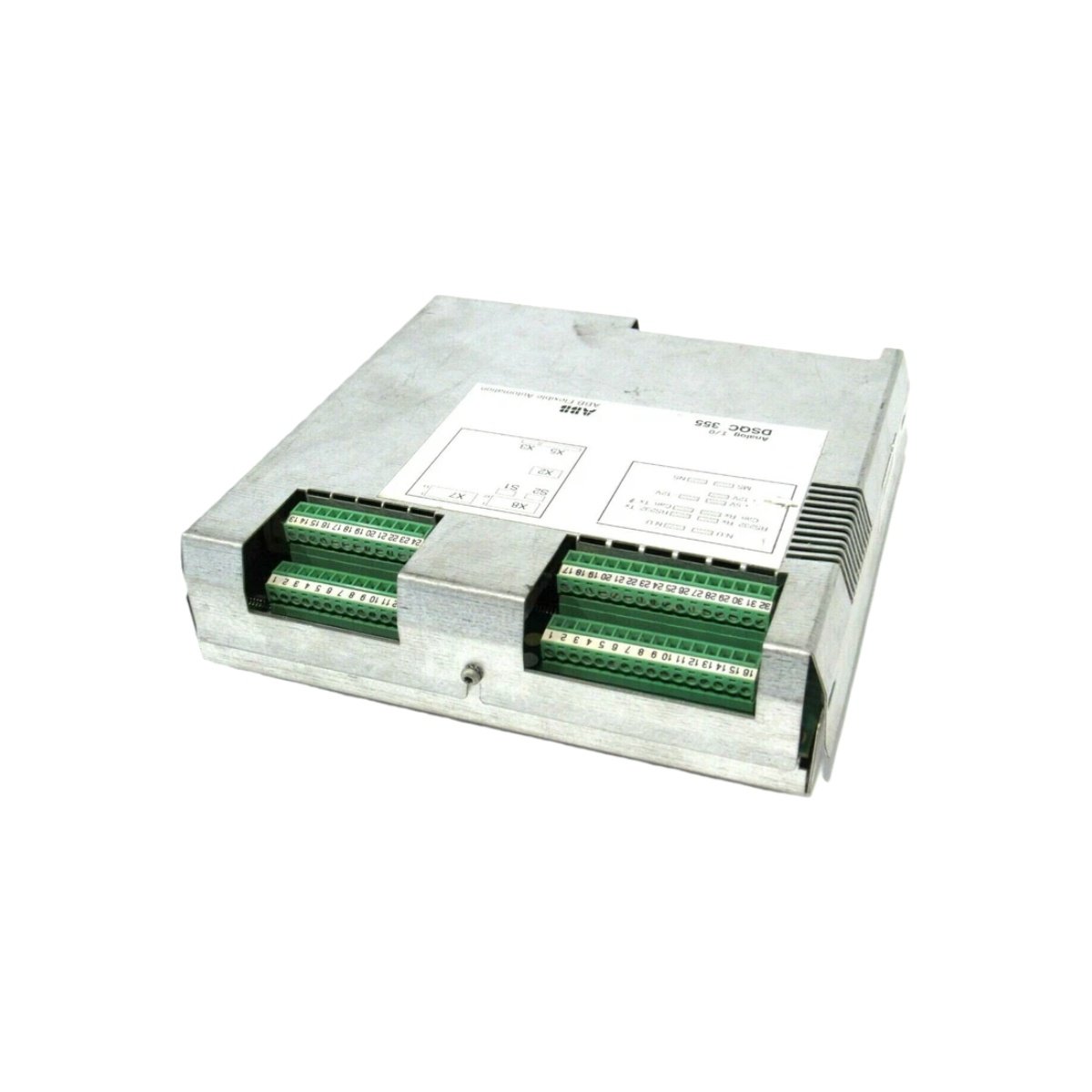

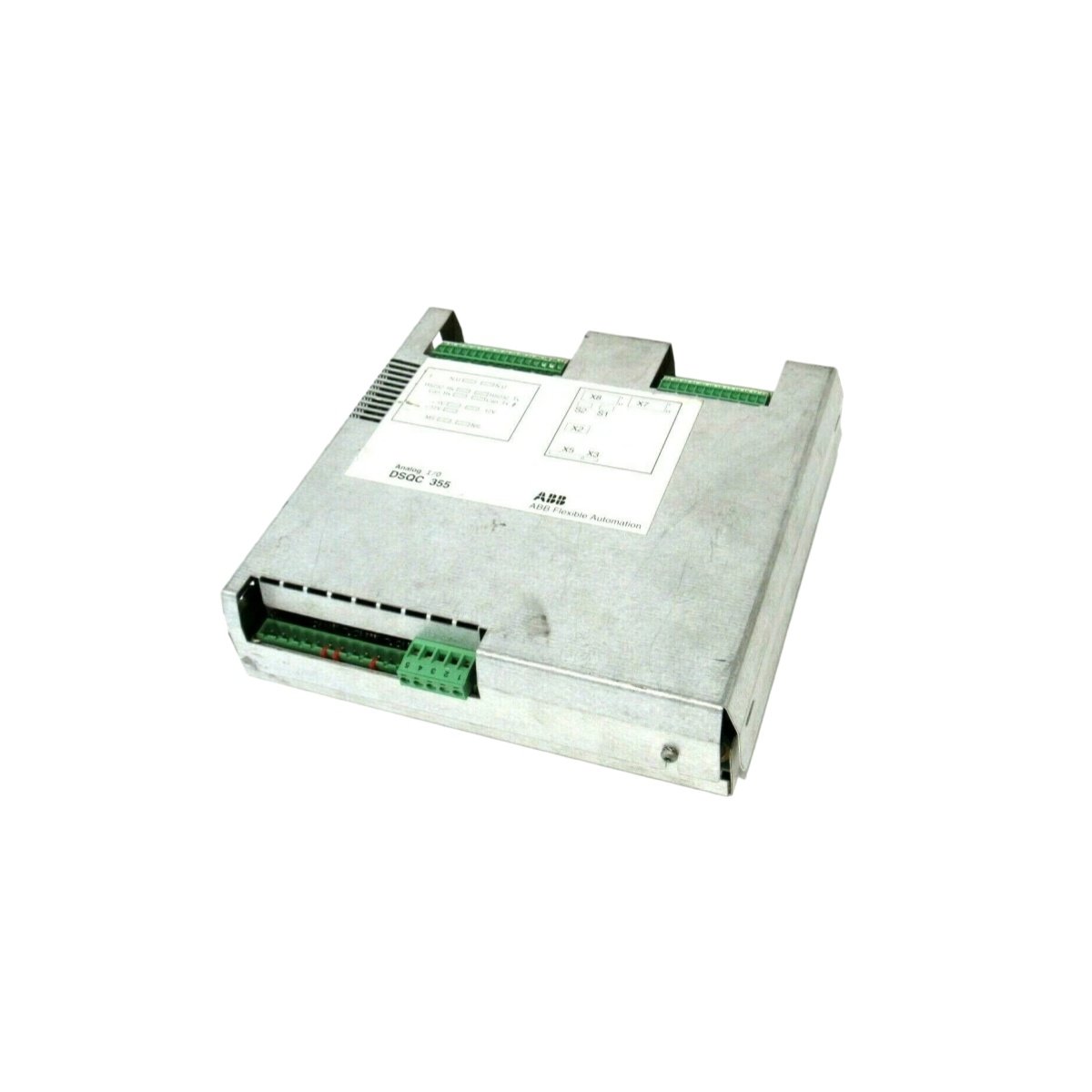

The ABB DSQC355 functions as an analog control I/O board for ABB industrial robot systems. We design this board to interface robots with analog sensors and actuators in manufacturing processes. Its precise circuitry converts analog signals to digital values and digital commands to analog outputs. This I/O board enables robots to interact with continuous process variables for advanced automation.
Key Features and Analog Processing Benefits
The ABB DSQC355 delivers accurate analog signal processing through its high-resolution converters and robust signal conditioning. This board reads analog inputs from sensors and provides analog outputs for controlling external devices. Consequently, robots can monitor process variables and adjust operations based on real-time conditions. Furthermore, the board includes diagnostic features for monitoring signal integrity and connection status.
Detailed Technical Specifications
Manufacturers construct the ABB DSQC355 using industrial-grade components for continuous operation in demanding factory environments. The I/O board measures approximately 160 millimeters in height, 100 millimeters in width, and 30 millimeters in depth. Its compact design mounts directly within the robot controller cabinet for space-efficient installation. Additionally, the board features status indicators for channel activity and fault conditions.
| Technical Parameter | Specification Detail |
|---|---|
| Manufacturer | ABB |
| Model Number | DSQC355 |
| Product Type | Analog Control I/O Board |
| Dimensions (HxWxD) | ~160 mm x 100 mm x 30 mm |
| Unit Weight | Approximately 0.3 kg |
| Analog Inputs | Multiple channels, high-resolution |
| Analog Outputs | Multiple channels, precision control |
| Resolution | High-resolution ADC and DAC |
| Signal Types | Voltage and current loops |
| Isolation | Channel-to-backplane isolation |
| Indicators | Channel status LEDs |
| Diagnostics | Signal integrity monitoring |
| Mounting | Robot controller cabinet |
| Connector | Shielded analog connectors |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Analog Input Processing
The DSQC355 performs precise conversion of analog sensor signals for robot control applications. Its high-resolution analog-to-digital converters capture process variables with excellent accuracy and repeatability. The board accepts standard industrial signal ranges including 0-10V and 4-20mA for broad compatibility. Therefore, it interfaces with pressure sensors, temperature transmitters, and other analog field devices.
Analog Output Control
Engineers designed the ABB DSQC355 with precision analog outputs for commanding external process equipment. Its digital-to-analog converters generate smooth, accurate control signals for valves, drives, and actuators. The outputs support standard industrial ranges for direct connection to analog-controlled devices. Consequently, robots can regulate continuous processes such as flow control, pressure regulation, and speed adjustment.
Robot System Integration
The ABB DSQC355 integrates seamlessly into ABB robot controller architectures for coordinated analog I/O handling. It connects directly to the controller backplane and communicates analog values to the robot operating system. The board’s memory mapping allows simple access to analog data from robot programming languages. Therefore, programmers can easily incorporate analog process control into robotic applications.
Industrial Applications and Use Cases
Manufacturing facilities worldwide rely on the ABB DSQC355 for analog process control in robotic applications. Automotive assembly plants use this board for monitoring weld gun pressure and controlling adhesive dispensing. Process industries employ it for robotic control of chemical dosing and material blending operations. This analog I/O board enables precise continuous control in all these applications.
Installation Guidelines and Best Practices
Proper installation of the ABB DSQC355 ensures accurate analog signal processing and reliable robot operation. First, mount the board securely in the designated slot within the robot controller cabinet. Next, connect analog field wiring using shielded cables for optimal noise immunity. Finally, calibrate input and output channels according to process requirements before placing the system in service.
Maintain System Accuracy with Genuine ABB Components
Choosing the genuine ABB DSQC355 guarantees accurate analog processing and reliable robot performance. Aftermarket boards may lack the precise conversion and isolation characteristics of authentic ABB designs. Therefore, always source this analog control I/O board from authorized ABB distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
