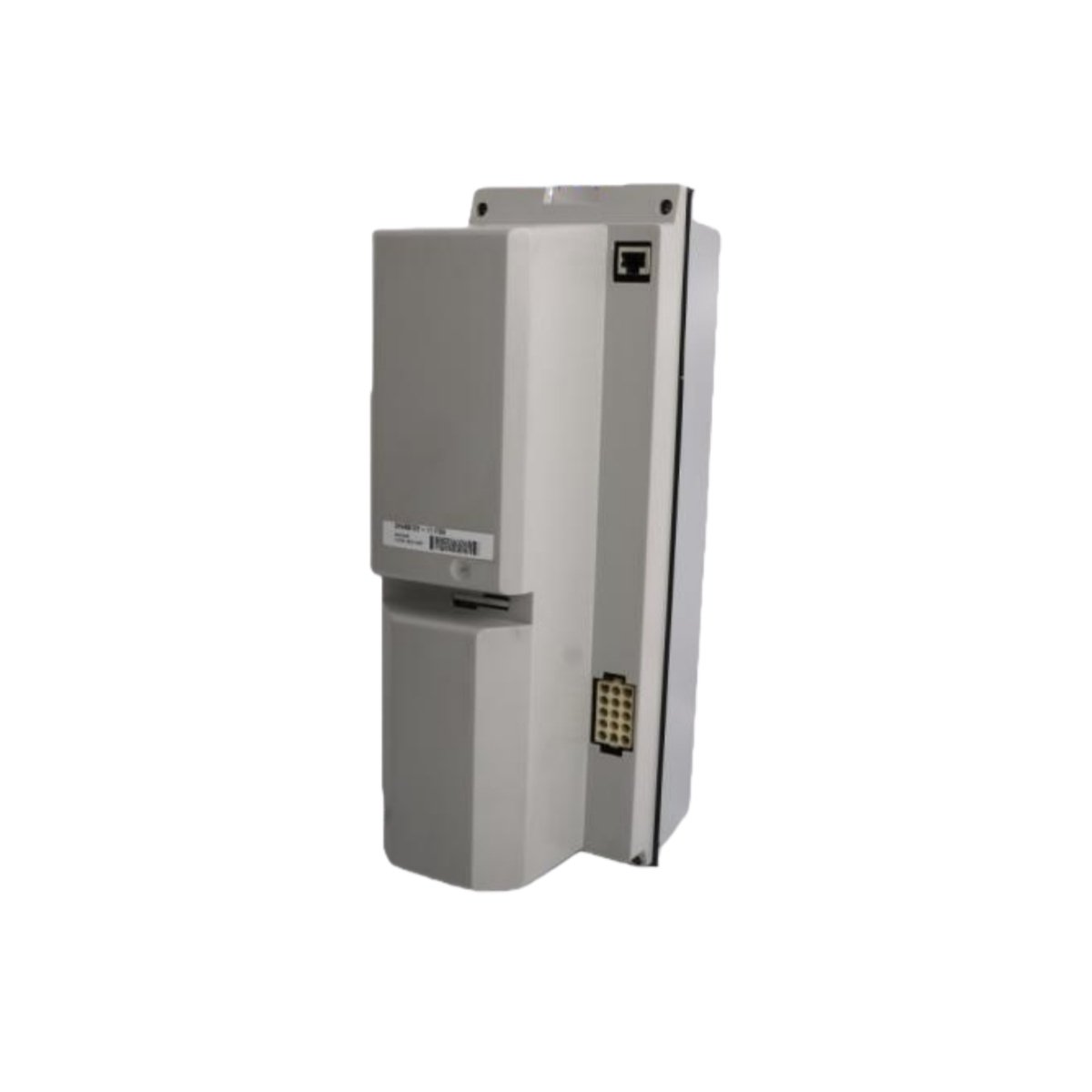

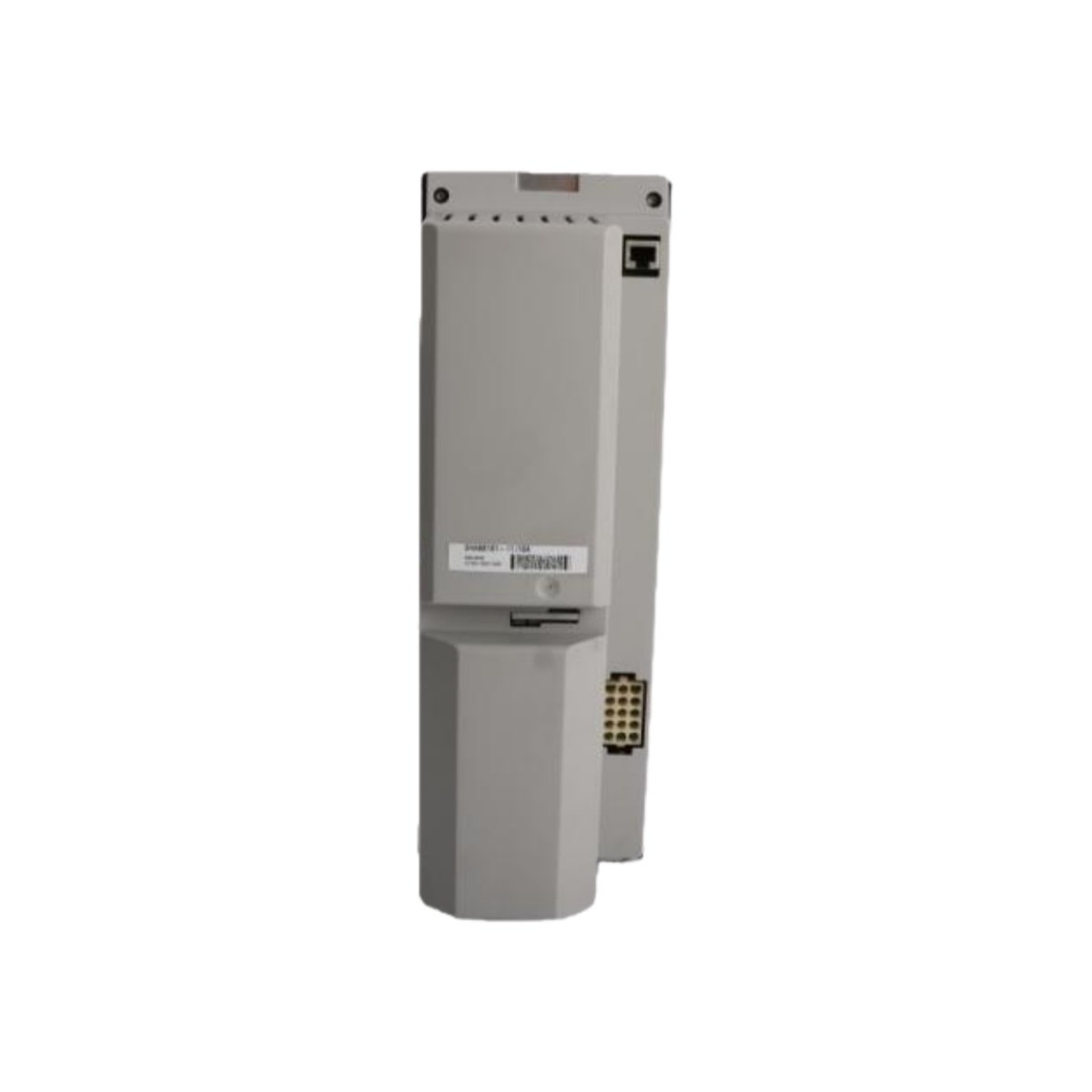

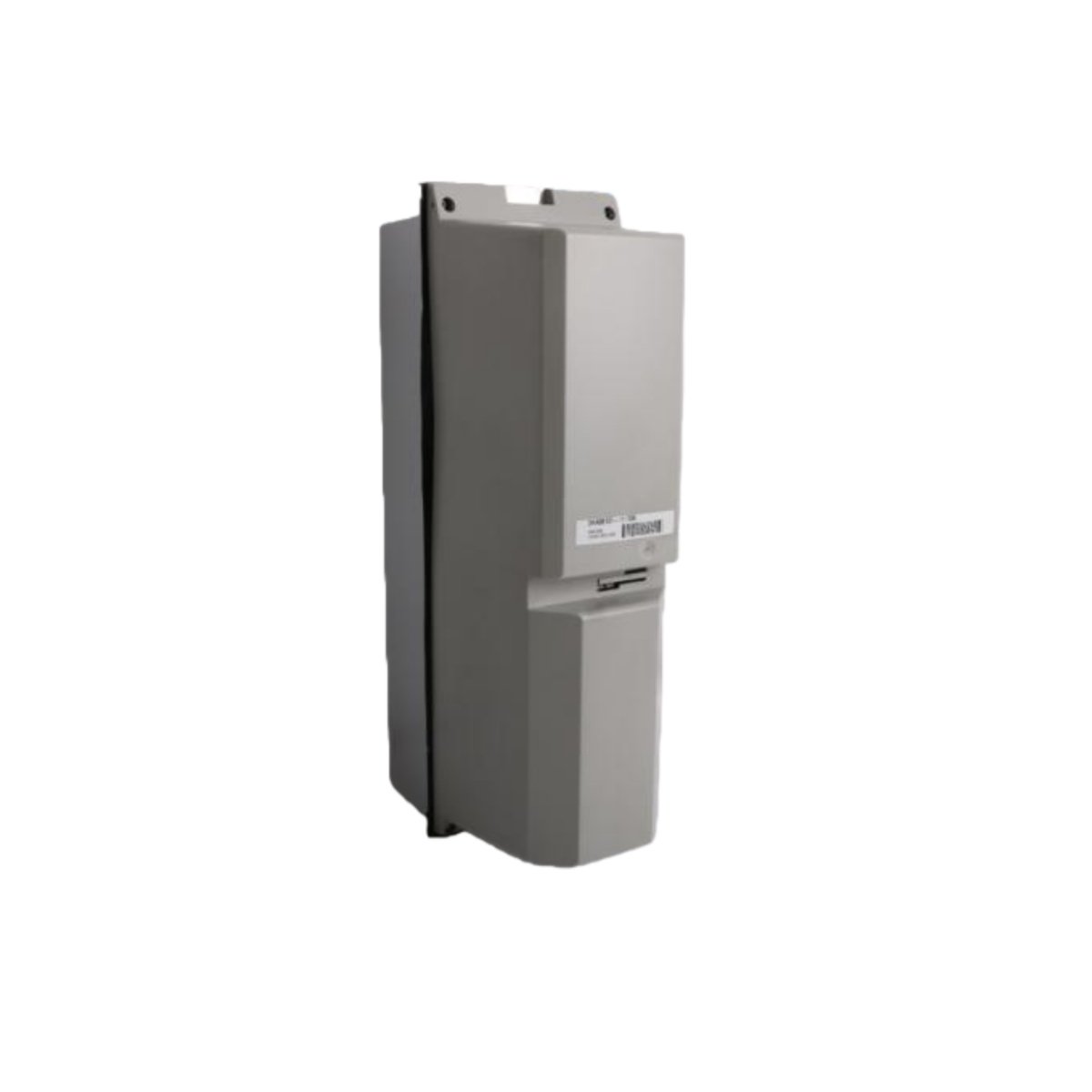

The ABB DSQC346G 3HAB8101-8/08F functions as a high-performance servo drive amplifier unit for ABB industrial robot systems. We engineer this unit to amplify control signals and deliver precise power to robot axis motors. Its advanced architecture ensures smooth, accurate motion for demanding manufacturing applications. This servo drive amplifier maintains tight velocity and position control for consistent robot performance.

Key Features and Motion Control Benefits

The ABB DSQC346G 3HAB8101-8/08F delivers exceptional motion control through its high-bandwidth current loops and advanced commutation algorithms. This amplifier receives low-power command signals from the robot controller and converts them into high-power motor currents. Consequently, it provides smooth torque output across the entire speed range for precise axis control. Furthermore, the unit includes comprehensive protection features to safeguard both itself and the connected motor.

Detailed Technical Specifications

Manufacturers construct the ABB DSQC346G 3HAB8101-8/08F using industrial-grade components for continuous operation in demanding factory environments. The servo drive amplifier measures approximately 250 millimeters in height, 150 millimeters in width, and 100 millimeters in depth. Its rugged design includes substantial heat sinking for effective thermal management without forced cooling. Additionally, the unit features status indicators for power, enable, and fault conditions.

Servo Amplifier Architecture

The DSQC346G 3HAB8101-8/08F implements a sophisticated servo amplifier architecture for precise motor regulation. Its high-bandwidth current loops ensure accurate torque production with minimal ripple across the speed range. The amplifier supports multiple control modes including torque, velocity, and position for application flexibility. Therefore, it provides the precise motion control essential for industrial robot applications.

Robot System Integration

Engineers designed the ABB DSQC346G 3HAB8101-8/08F for seamless integration into ABB robot control systems. It connects directly to the robot controller via dedicated interface cabling for command and feedback signals. The amplifier interfaces with the robot’s servo motor through high-power connections for reliable operation. Consequently, it functions as an integral component of the complete robot motion control solution.

Feedback and Commutation

The ABB DSQC346G 3HAB8101-8/08F accepts feedback from motor-mounted encoders or resolvers for precise commutation and control. It uses this feedback to determine rotor position for optimal motor torque production. The amplifier then commutes the motor phases using sinusoidal or trapezoidal techniques based on application requirements. Therefore, it maintains smooth, efficient motor operation at all speeds and loads.

Protection Features and System Safety

The ABB DSQC346G 3HAB8101-8/08F incorporates multiple protection features to safeguard itself and the connected motor. Overcurrent protection prevents amplifier damage during motor overload or stall conditions. Overtemperature monitoring shuts down the amplifier before excessive heat causes component failure. These features ensure reliable operation and minimize downtime due to fault conditions.

Industrial Applications and Use Cases

Manufacturing facilities worldwide rely on the ABB DSQC346G 3HAB8101-8/08F for precise robot axis control across diverse applications. Automotive assembly plants use this amplifier for welding robot axes requiring high dynamic performance. Material handling applications employ it for precise positioning of robot arms during pick-and-place operations. This servo drive amplifier ensures consistent motion control in all these demanding applications.

Installation Guidelines and Best Practices

Proper installation of the ABB DSQC346G 3HAB8101-8/08F ensures optimal servo performance and long-term reliability. First, mount the amplifier securely on the panel using all mounting points for vibration resistance. Next, ensure adequate clearance around the heat sink for unrestricted airflow and cooling. Finally, verify all power and signal connections before enabling the amplifier for operation.

Maintain System Performance with Genuine ABB Components

Choosing the genuine ABB DSQC346G 3HAB8101-8/08F guarantees proper servo performance and reliable robot operation. Aftermarket amplifiers may lack the precise tuning and protection characteristics of authentic ABB designs. Therefore, always source this servo drive amplifier unit from authorized ABB distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
