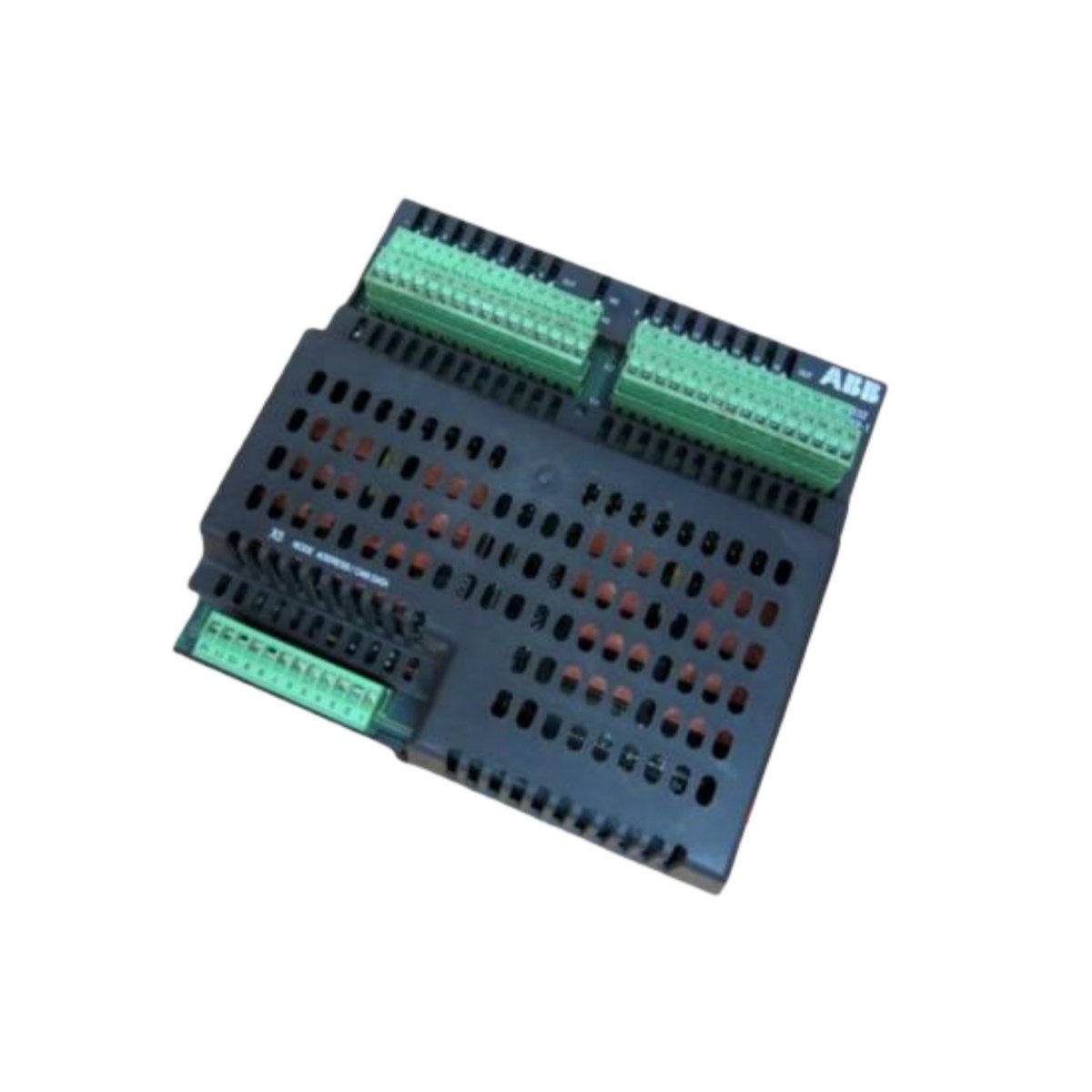

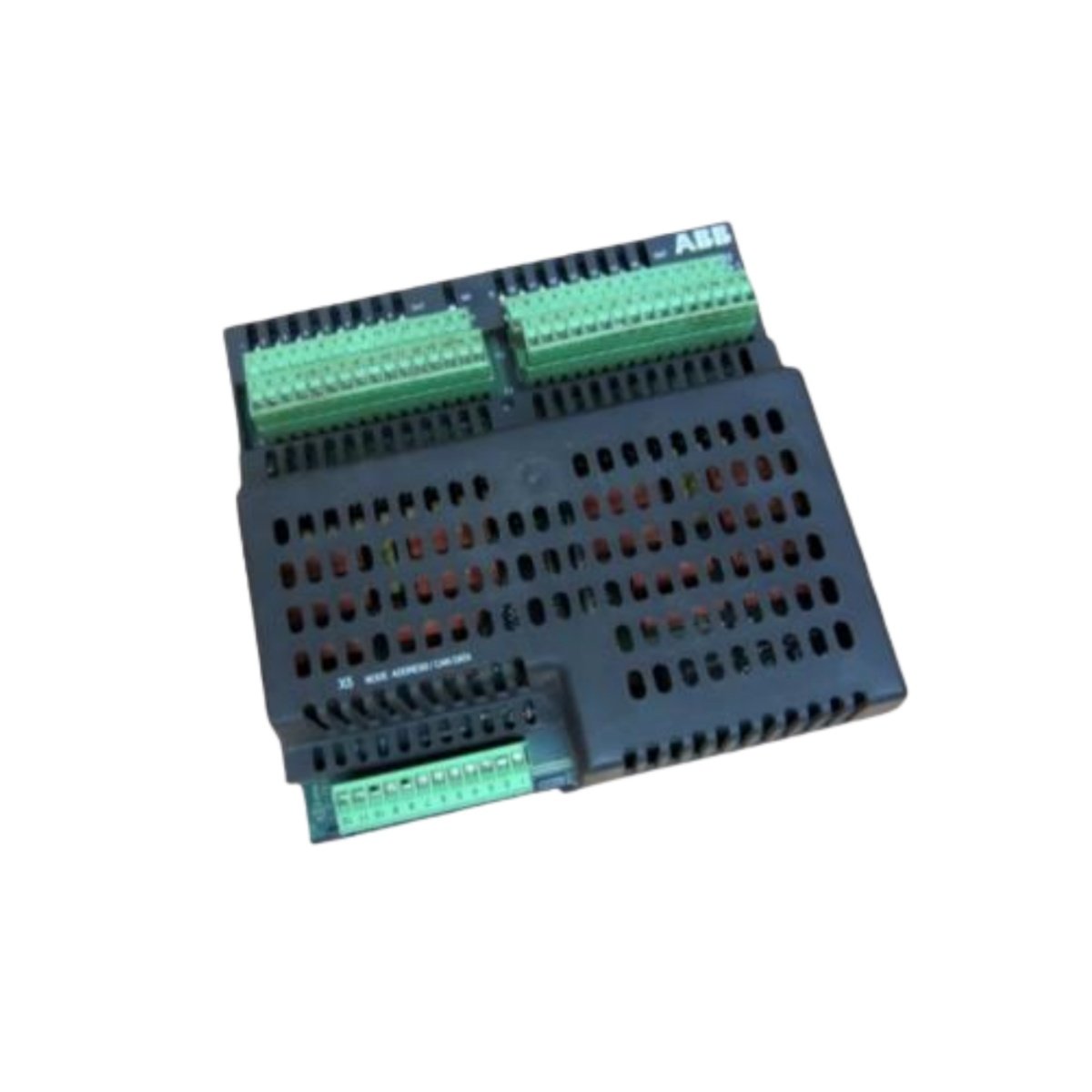

The ABB DSQC332 provides reliable electromechanical switching for industrial robot and automation applications. We engineer this digital relay output module to control external devices based on robot program logic. Its robust design enables direct switching of motors, valves, lights, and other industrial equipment. This module translates controller commands into physical on/off actions for peripheral devices.

Key Features and Operational Benefits

The ABB DSQC332 delivers exceptional value through its isolated relay outputs and rugged industrial construction. Each relay acts as an independent switch for connected equipment, controlled by the robot controller through the module. Consequently, the robot can activate conveyors, clamps, and tools precisely when needed during automated sequences. Furthermore, the module’s opto-isolated design protects the controller from external electrical transients.

Detailed Technical Specifications

Manufacturers construct the ABB DSQC332 using industrial-grade components rated for extended temperature operation. The board measures approximately 200 millimeters in height, 150 millimeters in width, and 50 millimeters in depth. Its compact form factor integrates easily into existing robot controller cabinets without modifications. Additionally, the module includes status indicators for each relay to simplify troubleshooting and commissioning.

Relay Configuration and Switching Capabilities

The DSQC332 provides between four and eight independent relay outputs depending on the specific variant. Each relay features a single-pole, single-throw normally open contact for simple on/off control. The module switches external loads up to the rated voltage and current for each specific version. Therefore, you can directly control a wide range of industrial equipment without intermediate interface relays.

Communication Interface and System Integration

Engineers designed the ABB DSQC332 with flexible communication options for seamless robot controller integration. The module connects to the robot controller using either SBus or CANopen industrial protocols. This communication link carries relay commands from the robot program to the output module in real time. Consequently, the robot program controls external devices with simple output instructions.

Voltage and Current Ratings

The ABB DSQC332 relay outputs operate at typical industrial control voltages with specific current limitations. Most variants use 24 VDC coil voltage with contact ratings appropriate for pilot duty applications. Always verify the exact voltage and current specifications for your particular module variant. This ensures safe and reliable switching of your connected field devices without contact welding or failure.

Mechanical Design and Installation

Technicians can install the ABB DSQC332 directly into the robot controller cabinet using standard mounting hardware. The module connects to the controller backplane through a dedicated interface connector for reliable communication. Field wiring terminates at clearly labeled terminal blocks for easy installation and maintenance. Therefore, integrating this module requires minimal time during system commissioning or upgrades.

Diagnostic Features and Status Monitoring

The ABB DSQC332 incorporates status indicators for immediate visual feedback on relay operation. Individual LEDs show when each relay is energized, simplifying troubleshooting during program development. The module reports communication status and diagnostic information to the robot controller. Consequently, maintenance personnel can quickly identify faulty wiring or device problems.

Industrial Applications and Use Cases

Manufacturing facilities worldwide use the ABB DSQC332 across diverse automation applications. Welding cells employ this module to control clamping devices and part positioners during cycles. Material handling systems use it to activate conveyors, diverters, and stop gates based on robot actions. This relay module enables seamless coordination between robots and surrounding production equipment.

Environmental Specifications and Durability

The ABB DSQC332 operates reliably across a wide temperature range from -25°C to +70°C. Its rugged construction withstands the vibration and shock typical of industrial manufacturing environments. The module’s conformal-coated PCB resists moisture and airborne contaminants found in factories. Therefore, this relay output module delivers years of maintenance-free service in demanding applications.

Maintain System Reliability with Genuine ABB Components

Choosing the genuine ABB DSQC332 guarantees proper fit and reliable performance for your robot system. Aftermarket modules may lack the precise timing and isolation characteristics of original ABB designs. Therefore, always source this digital relay output module from authorized ABB distributors and partners. For additional automation components, explore our selection of PLC modules similar to the RMS-TSG-TZ-C Static Trip Unit.
