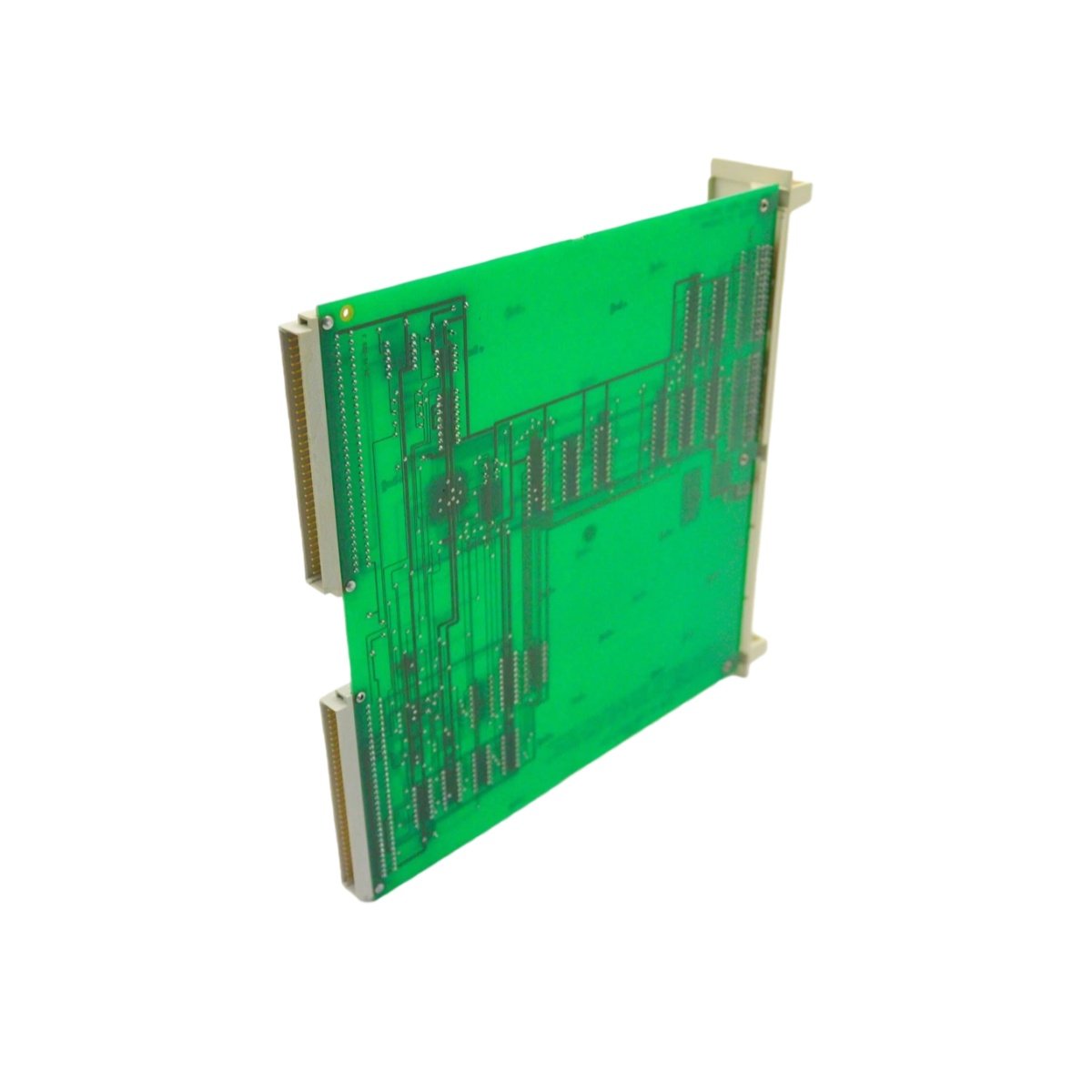

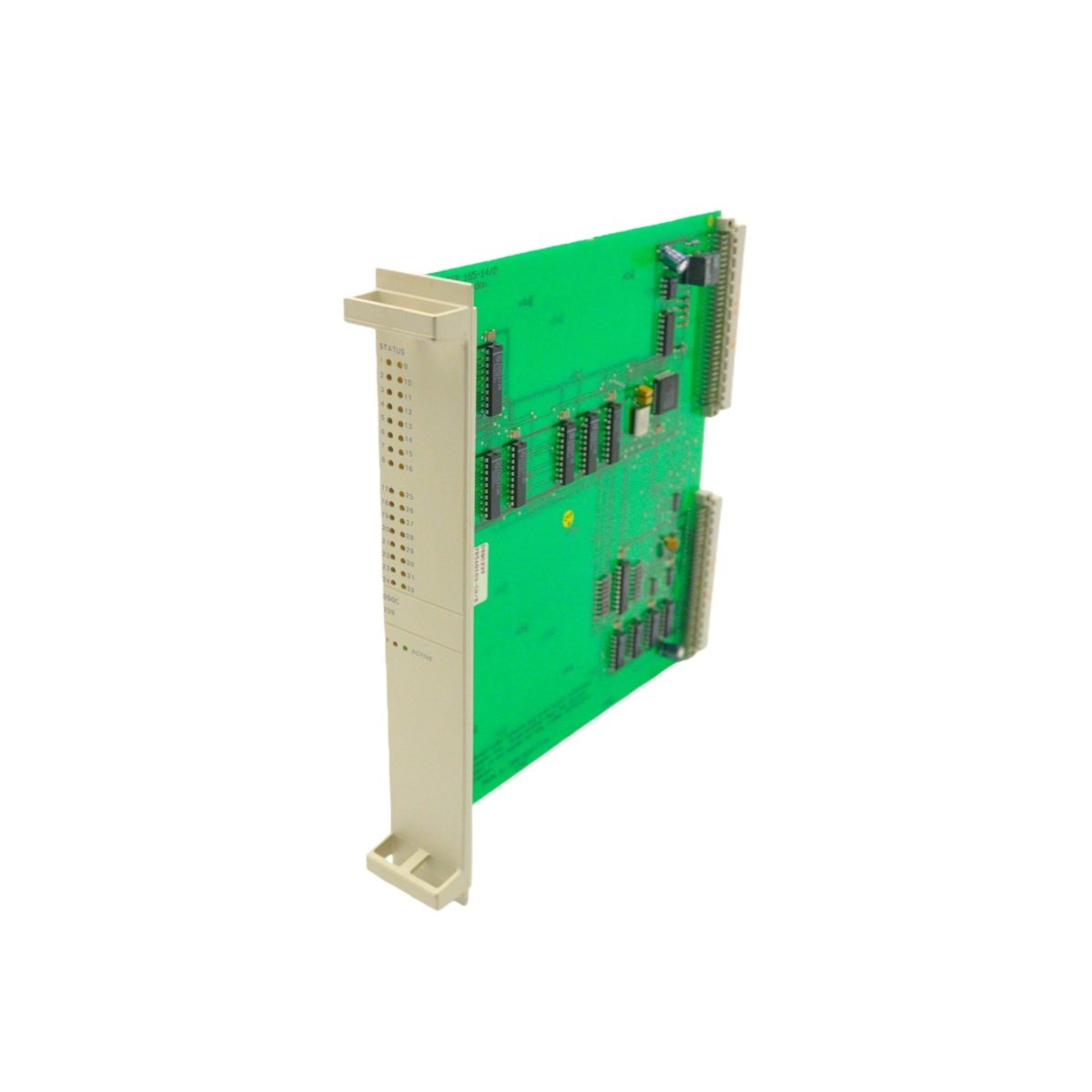

The ABB DSQC239 functions as a dedicated remote input/output interface for ABB industrial robot controllers. We design this communication board specifically for S3 robot systems manufactured from M91A models onward. This module enables seamless data exchange between your robotic system and external programmable logic controllers. Consequently, you can integrate ABB robots into broader automated manufacturing lines with minimal complexity.

Key Features and System Compatibility

The ABB DSQC239 provides reliable remote I/O capabilities through its specialized communication protocol implementation. This board works exclusively with S3 robot systems from M91A and later model years. However, you must note its incompatibility with S4C robots from M97A and subsequent generations. Therefore, always verify your robot controller model before ordering this specific interface module.

Technical Specifications and Physical Attributes

Manufacturers construct the ABB DSQC239 using industrial-grade components for reliable performance on the factory floor. The board measures approximately 200 millimeters in height, 150 millimeters in width, and 40 millimeters in depth. Its compact form factor allows direct mounting within the S3 robot controller cabinet without modifications. Additionally, the unit includes status indicators for power and communication activity monitoring.

Communication Protocol and PLC Integration

The DSQC239 utilizes the RIO protocol under license from Allen-Bradley for reliable industrial communication. This protocol enables direct interfacing with Allen-Bradley programmable logic controllers without additional gateways. Consequently, system integrators can easily connect ABB robots to existing Allen-Bradley-based control architectures. The board handles all protocol translation between the robot controller and the remote I/O network.

Mechanical Design and Installation Requirements

Engineers designed the ABB DSQC239 for straightforward installation within the S3 robot controller enclosure. The board mounts using standard standoffs and includes clearly labeled connectors for all necessary cables. Installation requires basic mechanical assembly and ribbon cable connections to the main controller board. Therefore, maintenance personnel can perform replacements quickly during scheduled service intervals.

Signal Handling and I/O Capacity

The ABB DSQC239 processes remote I/O signals for seamless integration between robot and PLC systems. It manages both digital input and output signals through the RIO protocol communication link. The board interfaces with the robot controller through a dedicated ribbon cable connection. This arrangement provides reliable signal exchange while maintaining electrical isolation between systems.

Industrial Applications and Use Cases

Manufacturing facilities benefit from the ABB DSQC239 when integrating robots with Allen-Bradley control systems. For example, automotive assembly lines often use this board to coordinate robot movements with conveyor control systems. Similarly, material handling applications rely on it for communication between robots and upstream/downstream equipment. This board enables synchronized operation across diverse automation components.

Important Compatibility Considerations

Before purchasing the ABB DSQC239, carefully verify your robot controller model and generation. This board works perfectly with S3 systems from M91A onward but fails with S4C models. Using this board in incompatible systems can result in communication failures or hardware damage. Consequently, always consult your robot documentation or serial number before ordering replacement parts.

Maintain System Reliability with Genuine ABB Components

Choosing the genuine ABB DSQC239 guarantees proper fit and function for your robot system integration. Aftermarket boards may lack the precise timing characteristics required for reliable RIO protocol communication. Therefore, always source this remote I/O board from authorized ABB distributors and partners. For additional automation components, explore our selection of PLC modules similar to the RMS-TSG-TZ-C Static Trip Unit.
