Overview

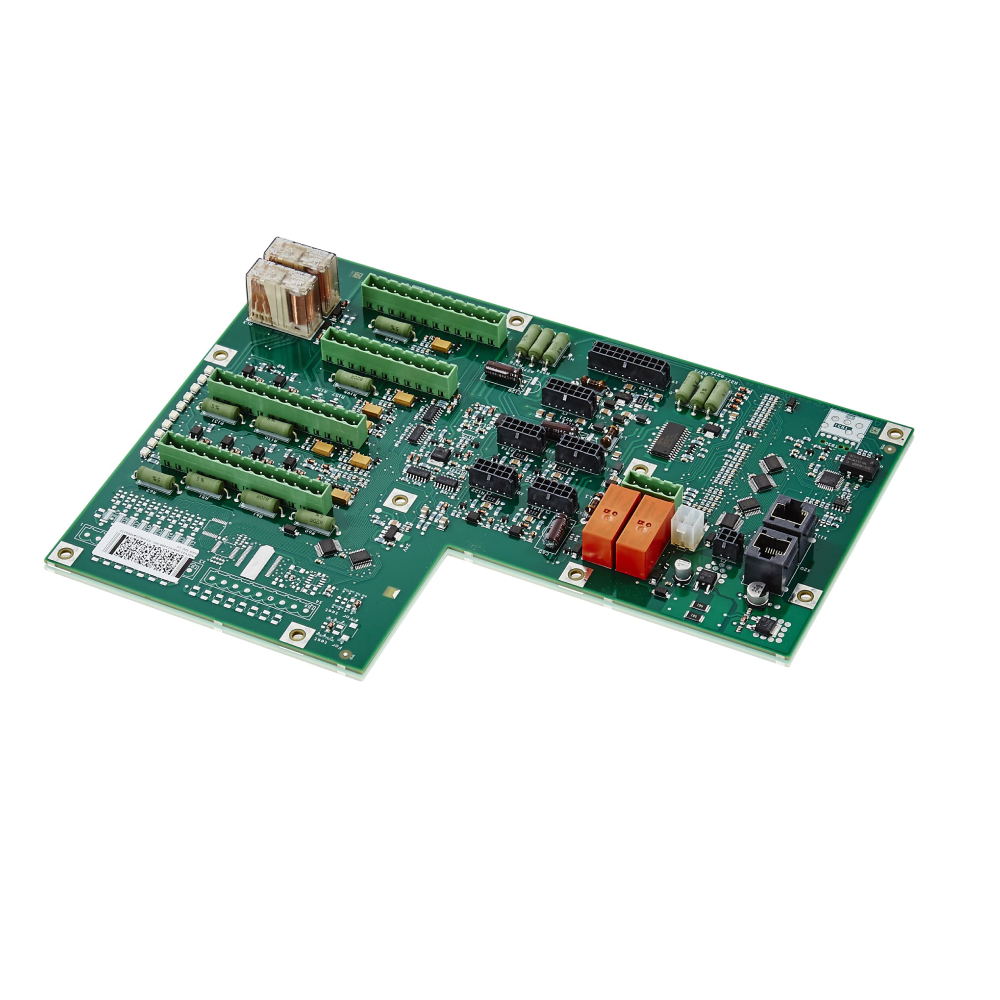

The ABB DSQC 643 (3HAC024488-001) Panel Board is engineered for IRC5 robotics controllers, providing reliable connections for single and dual controller configurations.
It supports both IRC5 M2004 Flexible Controller and IRC5 Design 2006, ensuring consistent performance across multiple robot generations.
Moreover, the included connector kit (3HAC021377-001) facilitates seamless integration with X8, X14, and X17 interfaces.
Its compact design (280 × 218 × 26.8 mm) and lightweight construction (0.34 kg) simplify installation in constrained control cabinets.

Functional Highlights

This panel board ensures high reliability for industrial robotics operations.
Therefore, it minimizes maintenance requirements and supports stable control signals.
Key Benefits include:

• Compatible with IRC5 M2004 and IRC5 2006 robot designs
• Connector kit included for easy wiring and installation
• Lightweight 0.34 kg panel for efficient handling
• Supports controllers 3HAC020536-014 for single robot modules
• High-quality materials enhance durability in demanding industrial environments
  In addition, the board maintains operational integrity during high-frequency control tasks.

Technical Data

System Integration

The DSQC 643 integrates smoothly into ABB IRC5 robotic cells, supporting both single and dual controller configurations.
For instance, it allows easy connection to Advant OCS controllers and other modular automation systems.
It can be combined with peripheral I/O and communication modules to form complete, robust robotic control networks.
Moreover, this board supports quick maintenance and replacement in field service operations, reducing downtime.
