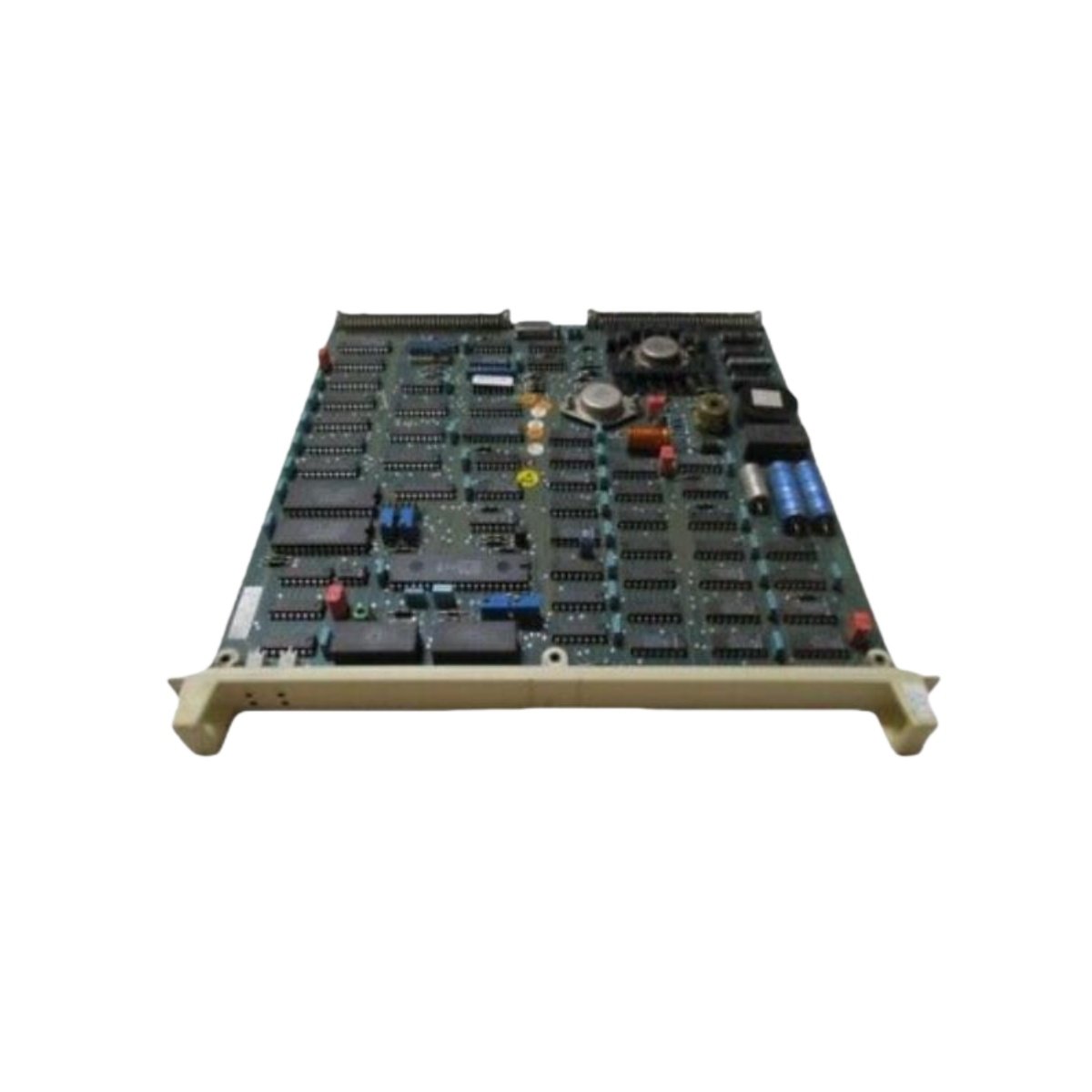

The DSMC112 57360001-HC functions as a specialized floppy disk controller module for ABB industrial systems. This unit manages data transfer between the control processor and external disk drives. Engineers rely on this controller to load programs and retrieve process data reliably. Consequently, the DSMC112 ensures seamless access to legacy storage media in automation environments.

Core Controller Architecture

The 57360001-HC incorporates dedicated floppy disk controller logic for precise media handling operations. ABB designed this module to manage all low-level formatting and data encoding tasks automatically. The controller handles track seeking, sector reading, and write operations without processor intervention. Additionally, it includes data separation circuits for reliable read-back from magnetic media. Such design offloads timing-critical tasks from the main control processor effectively.

Technical Specifications

Understanding the exact specifications of the DSMC112 57360001-HC ensures proper integration into existing ABB systems. Below you will find a detailed breakdown of its physical and electrical characteristics:

Data Management Features

The DSMC112 supports standard floppy disk formats used in legacy ABB control systems. It handles all sector addressing and data formatting tasks automatically during read operations. The controller verifies data integrity using built-in error checking circuits. Write operations include precompensation for reliable data storage on magnetic media. Such features maintain compatibility with existing program libraries and backup disks.

Integration with ABB Control Platforms

Within ABB automation architectures, the 57360001-HC connects directly to the processor backplane. It interfaces with external floppy drives through standard ribbon cable connections. The main processor accesses the controller through memory-mapped I/O techniques. This integration requires no special programming for basic read and write operations. Therefore, the DSMC112 simplifies program transfers in legacy systems.

Reliability in Industrial Environments

The DSMC112 57360001-HC meets ABB specifications for reliable operation in industrial settings. It suits facilities maintaining older automation systems with floppy-based storage. The board includes protection circuits against electrical transients on interface cables. For plants with extensive legacy program archives, this controller provides essential functionality. Its availability supports continued operation without migrating proven control applications.
