Product Overview

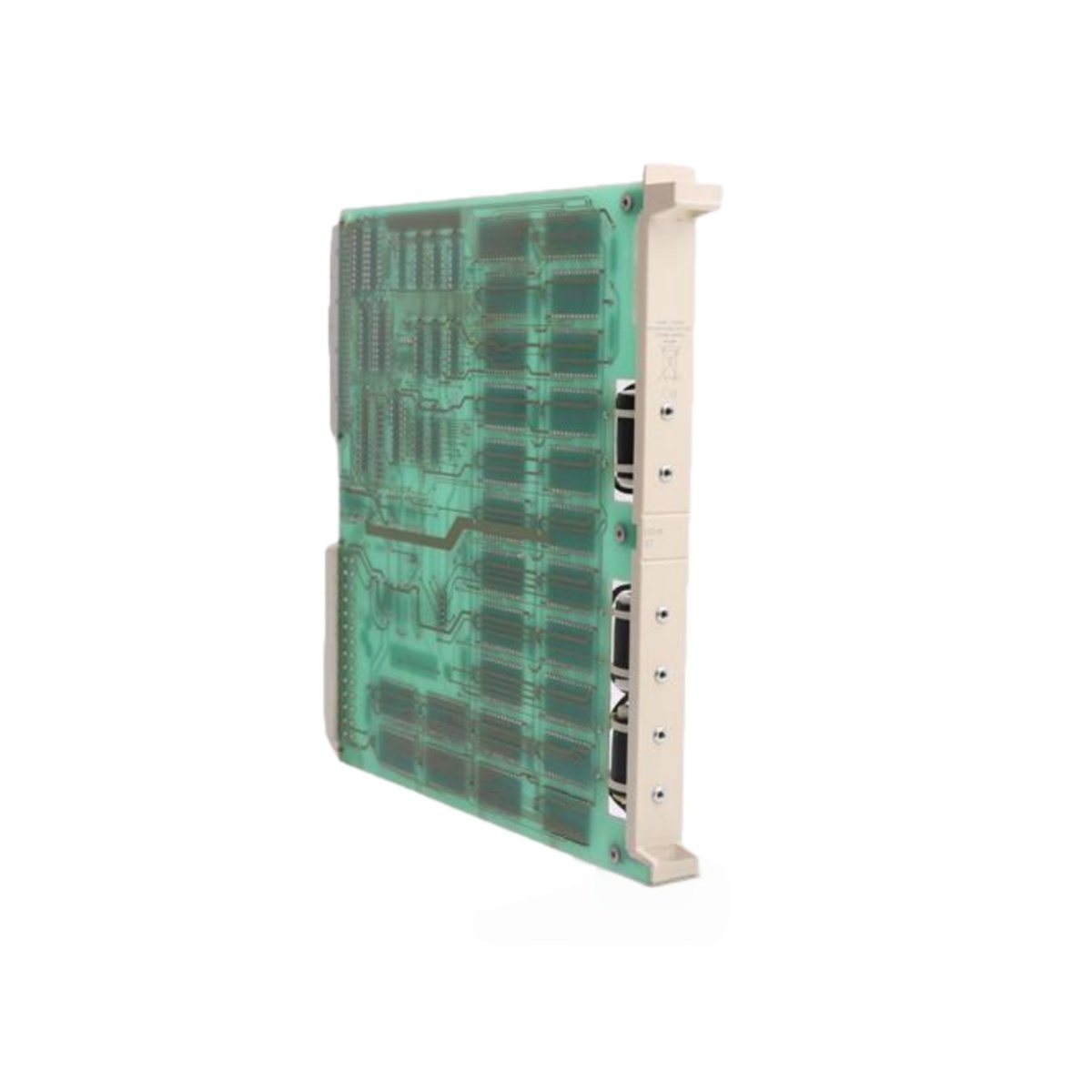

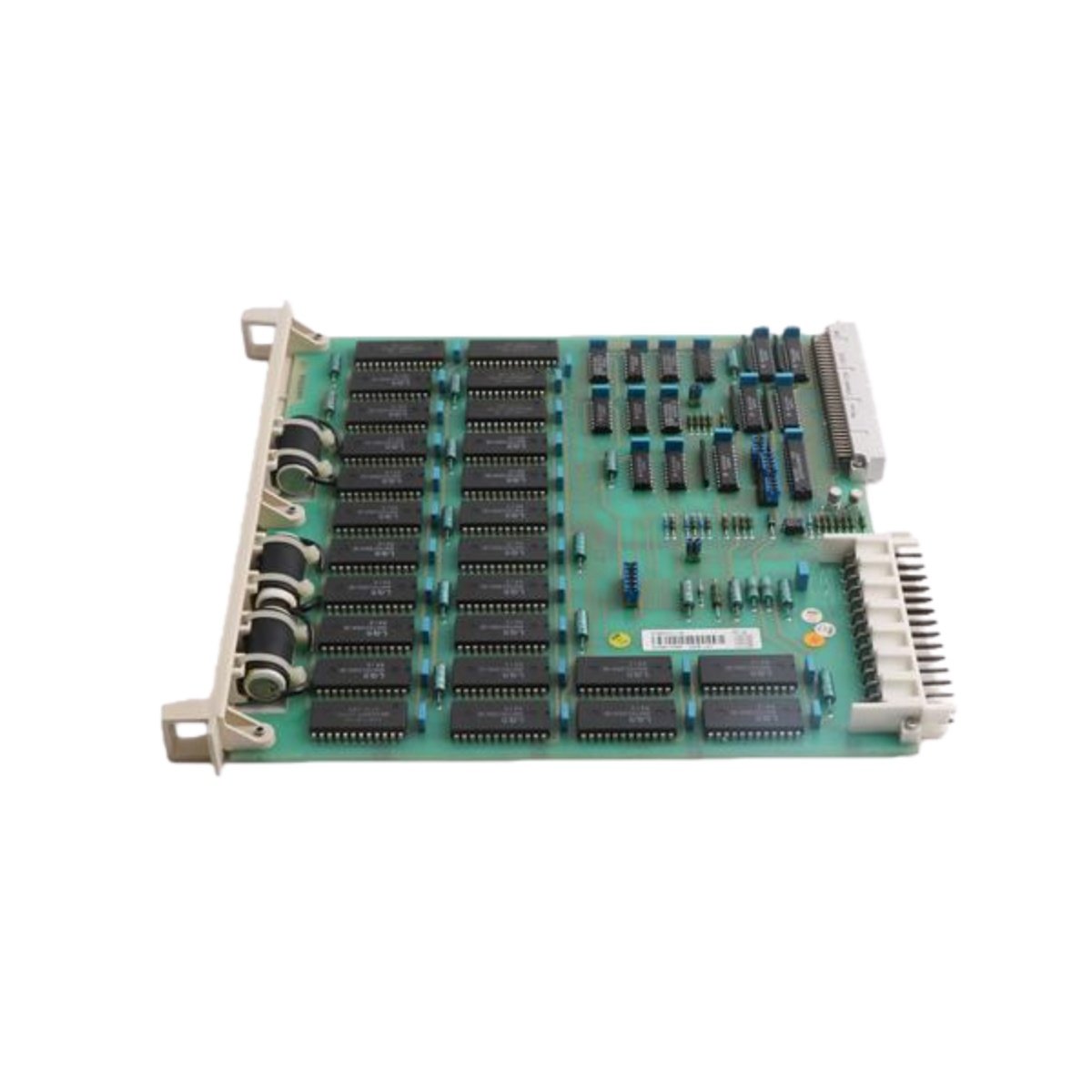

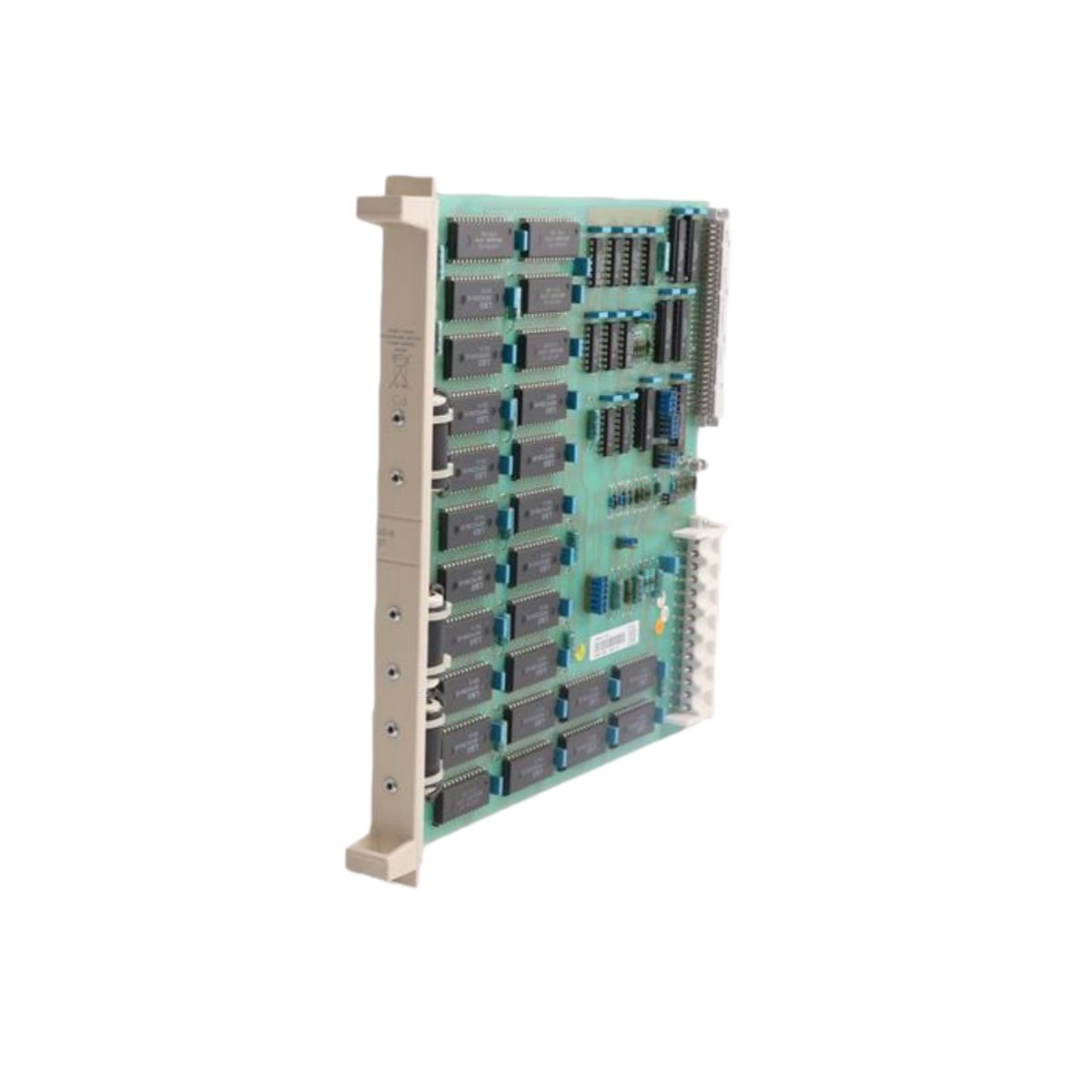

The ABB DSMB127 57360001-HG functions as a multifunction analog module for ABB Advant controller systems. This module processes both input and output signals for seamless integration of field instruments. We engineered the DSMB127 to provide accurate signal conversion and reliable interface with sensors and actuators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | DSMB127 57360001-HG |
| Product Type | Analog Combination Module |
| Series | Advant Controller 400 Series |
| Analog Inputs | 8 channels, differential or single-ended |
| Analog Outputs | 4 channels |
| Input Signal Types | ±10 V, 0-10 V, 0-20 mA, 4-20 mA, ±20 mA |
| Output Signal Types | ±10 V, 0-10 V, 0-20 mA, 4-20 mA |
| Input Resolution | 14 bits (including sign) |
| Output Resolution | 12 bits |
| Overall Accuracy | ±0.1% of full scale at 25°C |
| Input Impedance | > 10 MΩ (voltage), 250 Ω (current) |
| Output Load | > 2 kΩ (voltage), < 600 Ω (current) |
| Update Rate | 5 ms per channel (typical) |
| Isolation | 500 VAC channel-to-channel, channel-to-backplane |
| Power Supply | 24 VDC ±20% (field side), 5 VDC (logic) |
| Power Consumption | 4.5 W maximum |
| Status Indicators | Module OK, input active, output active, fault |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 230 mm x 30 mm x 200 mm (approx.) |
| Weight | 0.55 kg (1.21 lbs) |
| Mounting | Rack-mounted in Advant I/O chassis |
| Connectors | 64-pin DIN 41612 backplane, 2 x 20-pin front connectors |
| Certifications | CE, UL, CSA, ATEX (Zone 2) |
Key Features and Benefits
Integrated I/O Functionality: The DSMB127 57360001-HG combines eight inputs and four outputs in a single module. You save rack space and reduce system cost compared to separate input and output modules.
Flexible Signal Configuration: Each channel individually configures for voltage or current signals. Consequently, you connect various sensor types without external signal conditioners or jumpers.
High-Resolution Conversion: Fourteen-bit input resolution captures fine process details for precise monitoring. Twelve-bit outputs provide smooth, accurate control of valves and actuators.
Channel-to-Channel Isolation: Each input and output electrically isolates from others and the backplane. This design prevents ground loops and protects against faults on individual channels.
Comprehensive Diagnostics: The module continuously monitors signal quality and reports wire breaks or out-of-range conditions. You receive immediate alerts for proactive maintenance response.
Detailed Functional Description
The primary function of the ABB DSMB127 57360001-HG involves converting field analog signals to digital values and vice versa. Specifically, it reads signals from transmitters, positioners, and analyzers on its input channels. It then makes these values available to the controller through the backplane for use in control strategies. Simultaneously, it receives digital setpoints from the controller and converts them to analog output signals for valves, drives, and actuators. The module performs these conversions continuously with high accuracy and low latency.
Input Characteristics and Performance
We designed the input section of the DSMB127 for accurate signal acquisition:
| Parameter | Value |
|---|---|
| Input Ranges | ±10V, 0-10V, 0-20mA, 4-20mA, ±20mA |
| Resolution | 14 bits (1 part in 16,384) |
| Accuracy | ±0.1% of full scale |
| Temperature Drift | ±50 ppm/°C |
| Common Mode Rejection | > 80 dB at 50/60 Hz |
| Normal Mode Rejection | > 40 dB at 50/60 Hz |
| Input Filter | Programmable, 1 Hz to 100 Hz cutoff |
Output Characteristics and Performance
The output section of the ABB DSMB127 57360001-HG delivers precise control signals:
| Parameter | Value |
|---|---|
| Output Ranges | ±10V, 0-10V, 0-20mA, 4-20mA |
| Resolution | 12 bits (1 part in 4,096) |
| Accuracy | ±0.2% of full scale |
| Settling Time | < 2 ms to 0.1% |
| Output Protection | Short circuit, overvoltage to ±30V |
| Load Capability | 2 kΩ min (voltage), 600 Ω max (current) |
Installation and Configuration
Engineers install the DSMB127 directly into any I/O slot in the Advant controller rack. The process involves:
Inserting the module into the guided card guides
Engaging the backplane connector firmly
Securing with front-panel locking screws
Connecting field wiring to front-panel terminal blocks
Configuring channel types and ranges via software
The module stores configuration in non-volatile memory, retaining settings through power cycles.
Mechanical Details
The ABB DSMB127 57360001-HG features a rugged Eurocard format with robust construction. Its front panel provides:
Two 20-pin connectors for field wiring
LED indicators for module and channel status
Captive mounting screws for vibration resistance
Label area for channel identification
The module includes a metal ejector handle for easy insertion and removal from the rack.
Compatibility Information
The DSMB127 57360001-HG operates with the following ABB control platforms:
Advant Controller 410 series
Advant Controller 450 series
MOD 300 systems (with appropriate base)
Compatible with S100 I/O and S800 I/O via adapters
Common Industrial Applications
The ABB DSMB127 57360001-HG serves diverse applications requiring both analog input and output:
| Application Area | Typical Use Case |
|---|---|
| Chemical Processing | Monitoring pressures and controlling valves |
| Power Generation | Reading temperatures and positioning dampers |
| Water Treatment | Measuring flow and adjusting chemical feed |
| Oil & Gas | Monitoring wellhead pressures and controlling chokes |
| HVAC | Reading duct pressures and positioning VAV boxes |
| Manufacturing | Monitoring machine forces and controlling hydraulics |
Why Choose This Module?
Selecting the ABB DSMB127 57360001-HG means choosing a versatile, space-saving analog solution for your ABB system. You handle both input and output functions with a single module, reducing rack space and sparing costs. The flexible per-channel configuration adapts to mixed signal types without hardware changes. High-resolution conversion ensures accurate monitoring and smooth control of field devices. Channel isolation protects against fault propagation, enhancing system reliability. For Advant controllers requiring analog I/O, the DSMB127 57360001-HG delivers the integration and performance you need.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
