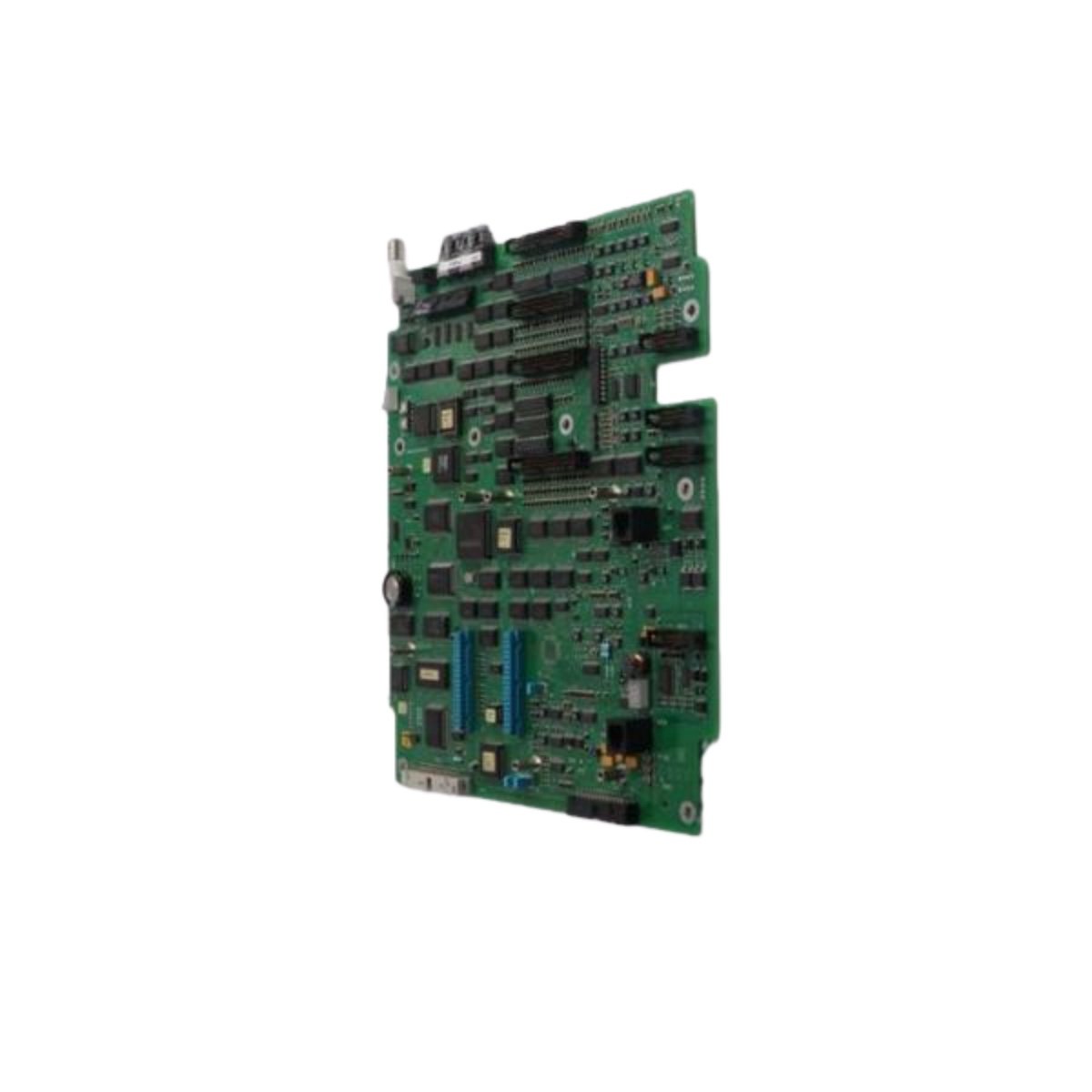

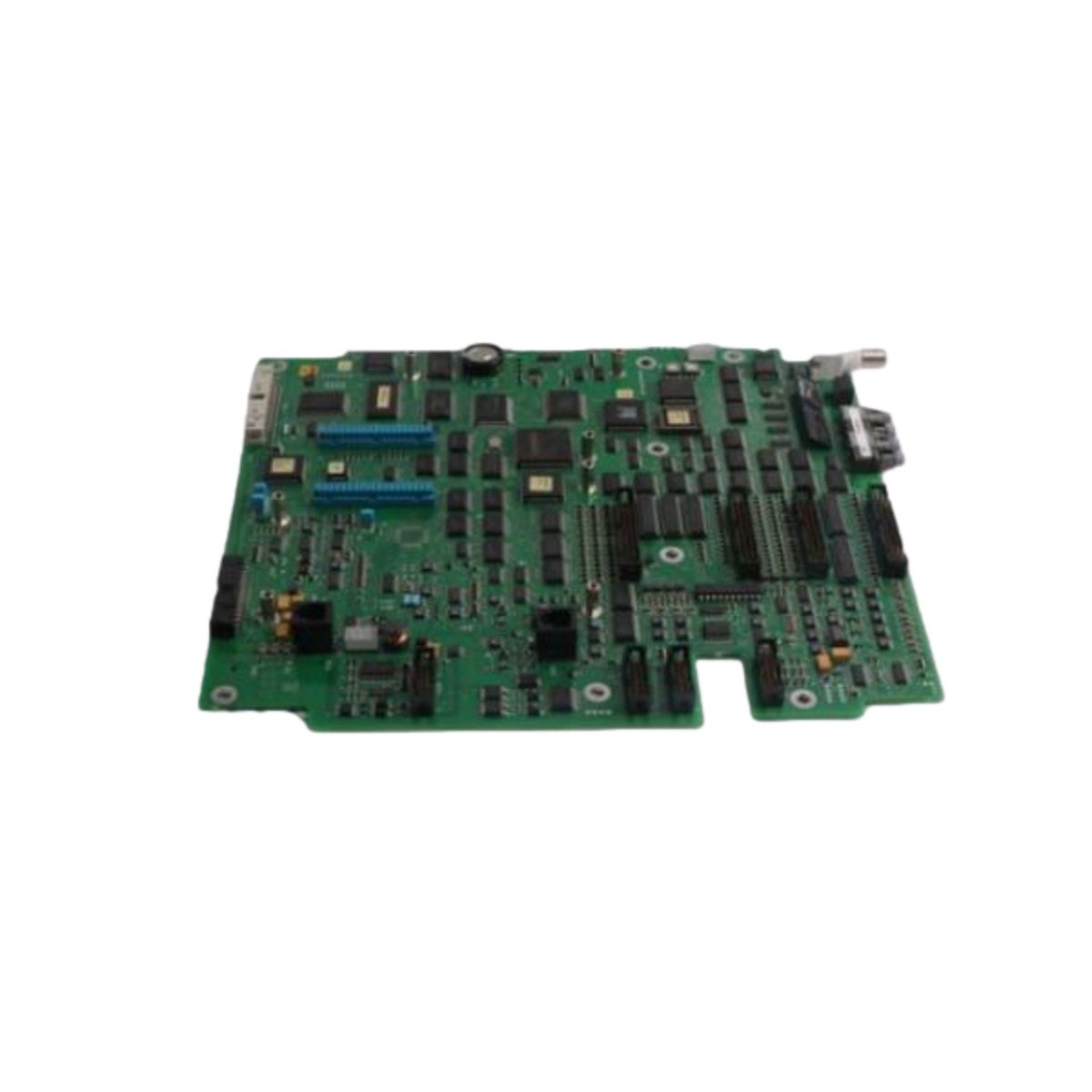

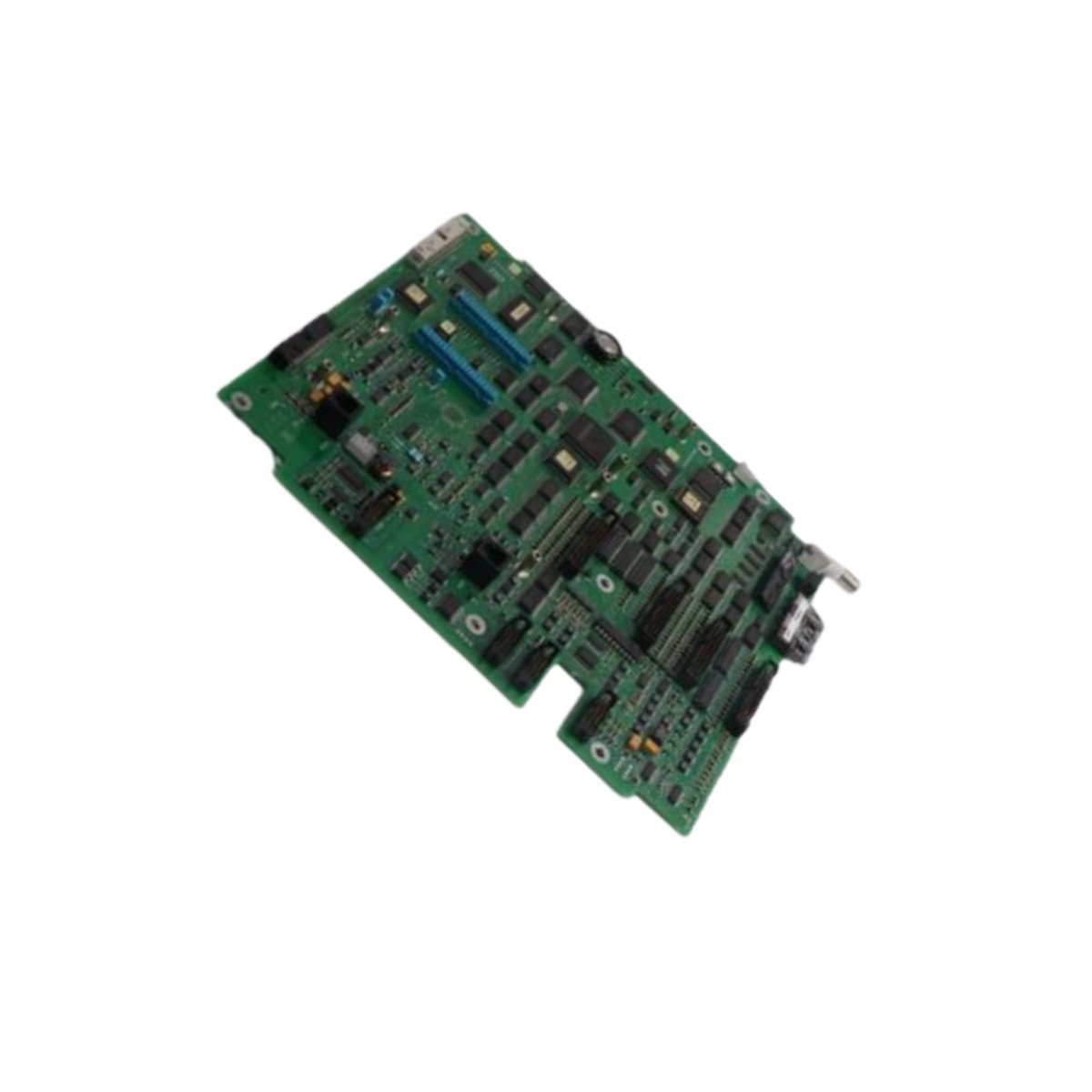

The ABB DSDX454 5716075-AT operates as a robust Remote In/Out Basic Unit for demanding industrial automation environments. This module specifically accommodates higher-voltage input signals while delivering substantial output current for actuator control. It consequently serves as an ideal interface between 48 V DC field devices and your central control system.
Key Technical Specifications
We engineered the ABB DSDX454 5716075-AT to handle rigorous industrial applications requiring reliable signal acquisition and switching. Its design prioritizes electrical robustness and long-term operational stability.
| Parameter | Specification |
|---|---|
| Catalog Description | Remote In/Out Basic Unit |
| Product Type | I/O Module |
| Digital Inputs | 20 channels, 48 V DC |
| Digital Outputs | 12 channels, 0.1 A to 3 A |
| Input Voltage Range | 48 V DC nominal (suitable for higher-voltage sensors) |
| Output Type | Solid-state or relay switching (0.1 A to 3 A capacity) |
| Mounting Configuration | Direct panel mounting or DIN rail attachment |
| Field Connections | Pluggable terminal blocks with screw termination |
| Dimensions (Height) | 180 mm |
| Dimensions (Width) | 94.5 mm |
| Dimensions (Depth) | 216 mm |
| Unit Weight | Approximately 2.9 kg |
| Ambient Operating Temperature | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Ingress Protection | IP20 (requires enclosure installation) |
| RoHS Status | Exempt under EU Directive 2011/65/EU |
| Customs Tariff Number | 85389091 |
| WEEE Classification | Small Equipment (≤50 cm external dimension) |
Input and Output Configuration
The ABB DSDX454 5716075-AT provides 20 digital inputs specifically designed for 48 V DC control signals. This higher voltage tolerance makes it particularly suitable for legacy systems or specialized industrial sensors. Furthermore, the module delivers 12 digital outputs capable of switching loads from 0.1 A up to 3 A per channel.
Mechanical Integration Details
The ABB DSDX454 5716075-AT features standardized dimensions of 180 mm height by 94.5 mm width by 216 mm depth. Its 2.9 kg weight allows for straightforward handling during cabinet assembly or field replacement. The unit’s pluggable connector design significantly reduces wiring time during initial installation.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
