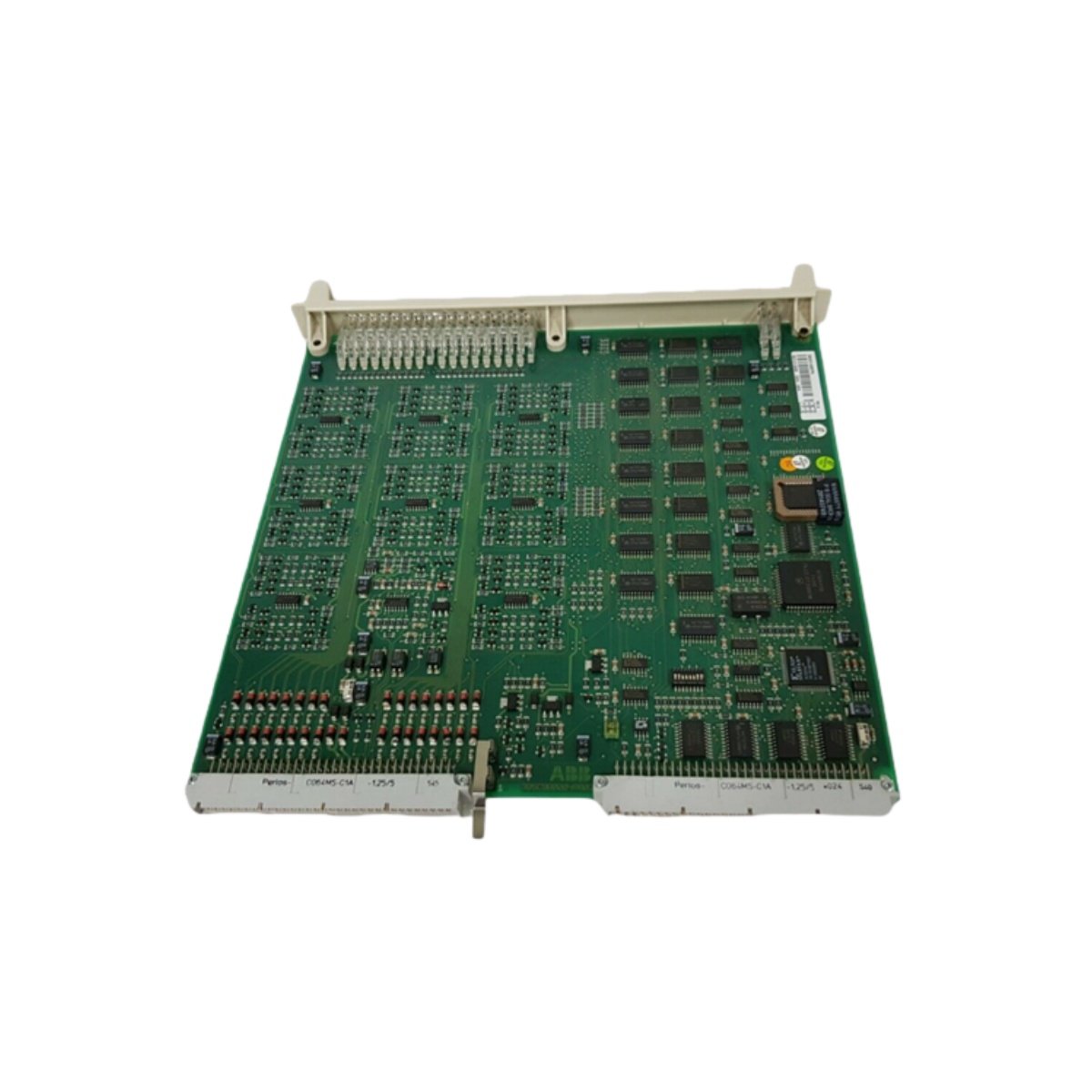

The ABB DSDX180 3BSE003859R1 serves as a versatile digital combination module within the S100 I/O system. It offers significant flexibility for industrial control applications by allowing each channel to act as either a sink/source input or a solid-state output. This device helps streamline cabinet design by reducing the need for multiple, separate interface modules.

Key Technical Specifications

We designed the ABB DSDX180 3BSE003859R1 for high-density applications without compromising on diagnostic capabilities. Its robust construction ensures reliable operation even in demanding environments.

• Channel Configuration: 32 channels, individually configurable via software as digital input or output.

• Input Voltage Rating: Nominally accepts 24 VDC (according to EN 61131-2, Type 1/3).

• Output Type: Provides digital outputs with both sinking and sourcing capabilities per channel.

• Communication Protocols: Integrates seamlessly with DeviceNet and EtherCAT networks through the backplane interface of the S100 I/O rack.

• Power Supply Requirements: Requires a nominal 24 VDC external power supply for field-side logic.

• Channel Isolation: Features individual electrical isolation per channel to protect against ground loops and voltage transients.

• Diagnostic Indicators: Includes per-channel status LEDs and a dedicated module health LED for immediate visual feedback.

• Physical Mounting: Directly mounts onto a standard S100 I/O rack for secure installation.

• Enclosure Protection: Complies with IP20 protection rating for use within a grounded control cabinet.

• Operating Environment: Functions reliably within an ambient temperature range of -20°C to +55°C.

• Regulatory Compliance: Holds RoHS exemption status as per EU Directive 2011/65/EU.

Dimensional and Mechanical Details

The ABB DSDX180 3BSE003859R1 features a compact footprint optimized for the S100 system. It measures approximately 130 mm in height, 45 mm in width, and 100 mm in depth. Its lightweight polycarbonate housing weighs roughly 0.2 kg, facilitating easy handling during installation or replacement.
