Core Function and Application Role

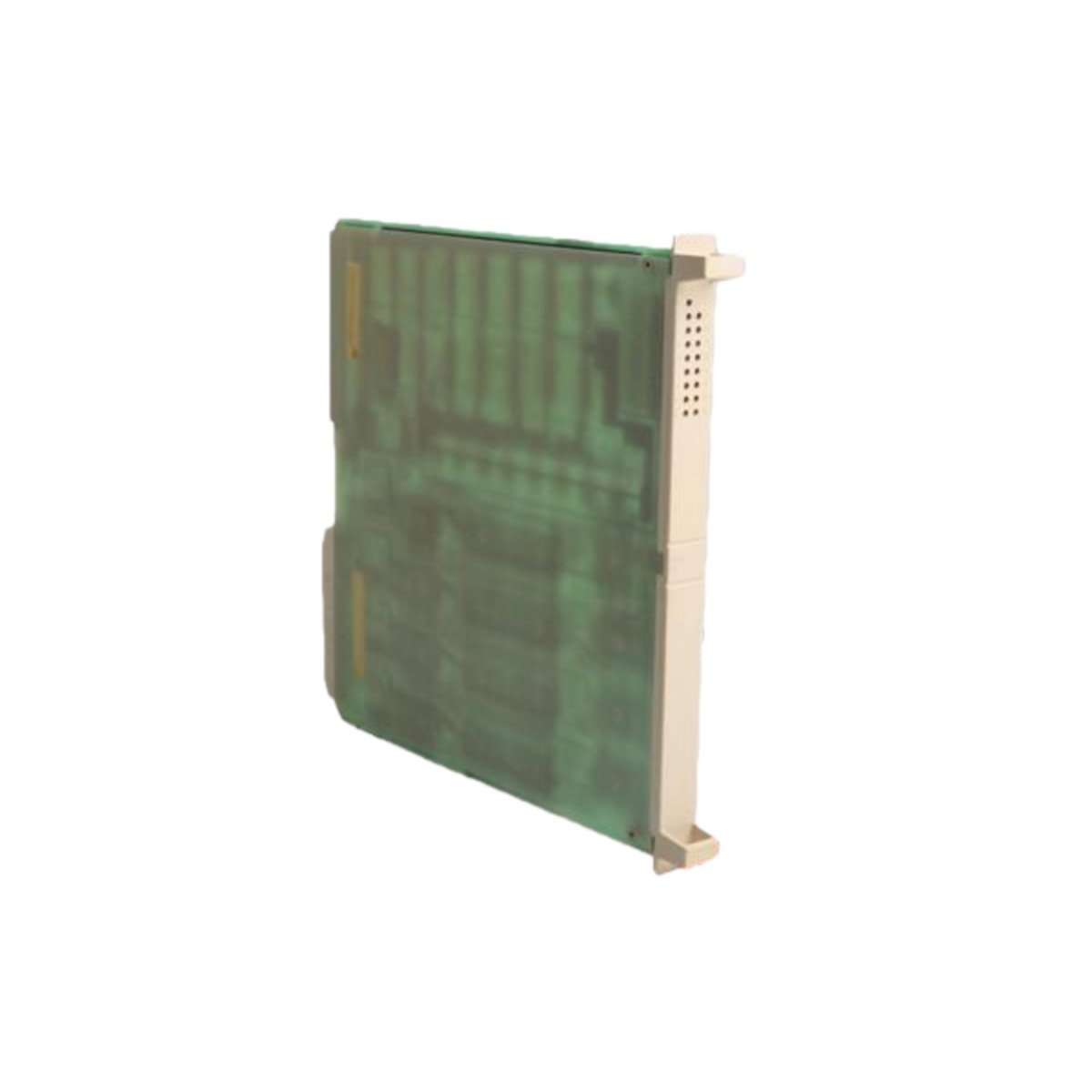

The ABB DSDC110B 57310001-FT serves as a dedicated communication interface board. Consequently, it facilitates reliable data exchange within complex automation architectures. This board specifically manages protocol conversion and signal conditioning tasks. Therefore, it enables seamless integration between different system layers and device types.
Designed for Robust Data Handling
This interface board efficiently processes serial or parallel data streams. Furthermore, its design incorporates robust isolation and noise suppression features. This ensures signal integrity in electrically noisy industrial environments. Ultimately, the board provides a stable and dependable communication gateway for critical control signals.
Detailed Technical Specifications
The DSDC110B 57310001-FT features a compact PCB design for slot-mounted installation. The following table details its comprehensive technical and physical specifications.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | DSDC110B 57310001-FT |
| Product Type | Communication Interface Board / PCB Module |
| Compatible System Series | Designed for ABB Symphony DCS or Advant OCS controller racks |
| Primary Function | Protocol interface & signal conditioning |
| Interface Type | Likely includes RS-232/422/485 or proprietary bus interfaces |
| Power Requirement | +5 VDC & ±12 VDC (typically from system backplane) |
| Board Dimensions | Standard Eurocard format, approx. 100 mm x 160 mm |
| Net Weight | Approximately 0.15 kg |
| Operating Temperature | 0°C to +70°C (component side temperature) |
| Storage Temperature | -40°C to +85°C |
| Isolation Voltage | 1500 Vrms (typical channel-to-channel or channel-to-ground) |
| Connector Type | High-density pin header or DIN 41612 connector |
| Status Indicators | LED indicators for power and channel activity |
| Component Count | Features multiple ICs, optocouplers, and discrete components |
| Certification | Complies with relevant industrial EMC standards |
Design for Integration and Reliability
The board’s layout prioritizes clean signal paths and effective heat dissipation. Moreover, its component selection ensures long-term reliability for continuous operation. This design approach minimizes communication errors and maximizes system uptime. For complete system protection, integrating reliable components like the RMS-TSG-TZ-C static trip unit is a common practice.
Application and Value
This interface board is essential for adding specific communication capabilities to ABB controller racks. It offers a flexible and cost-effective solution for system expansion or customization. Choosing the genuine ABB DSDC110B 57310001-FT guarantees electrical and mechanical compatibility. Furthermore, its proven design supports the high availability required in process industries.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
