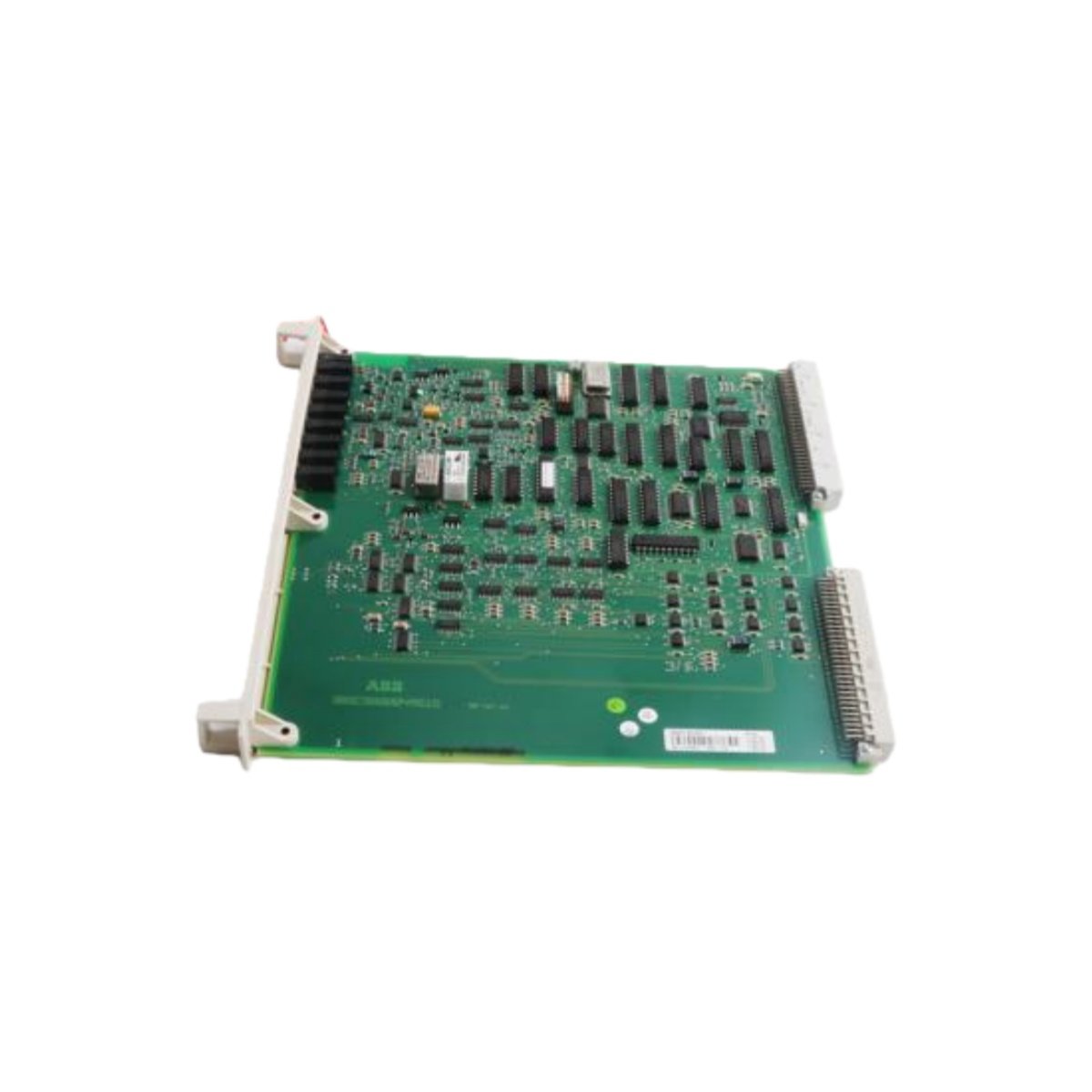

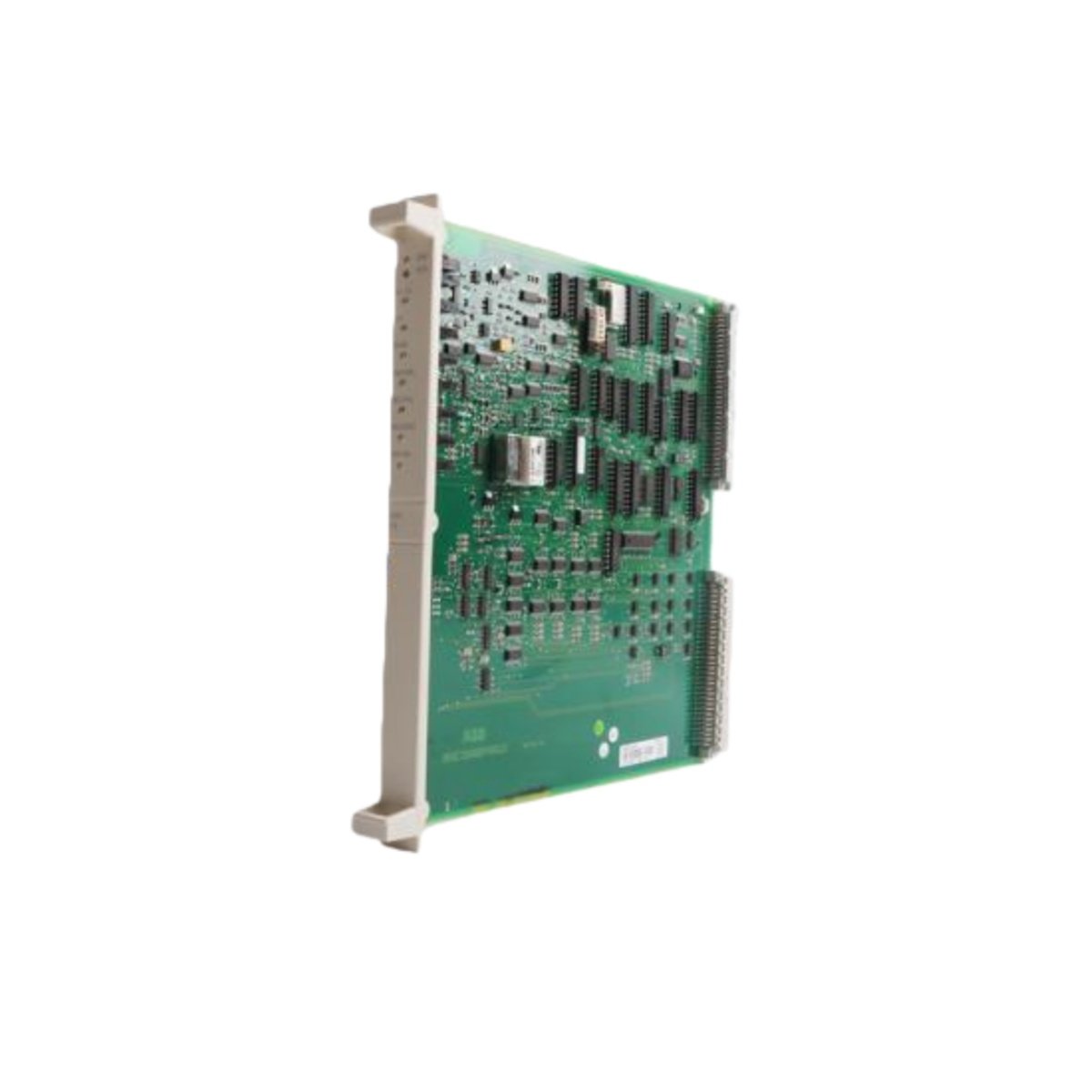

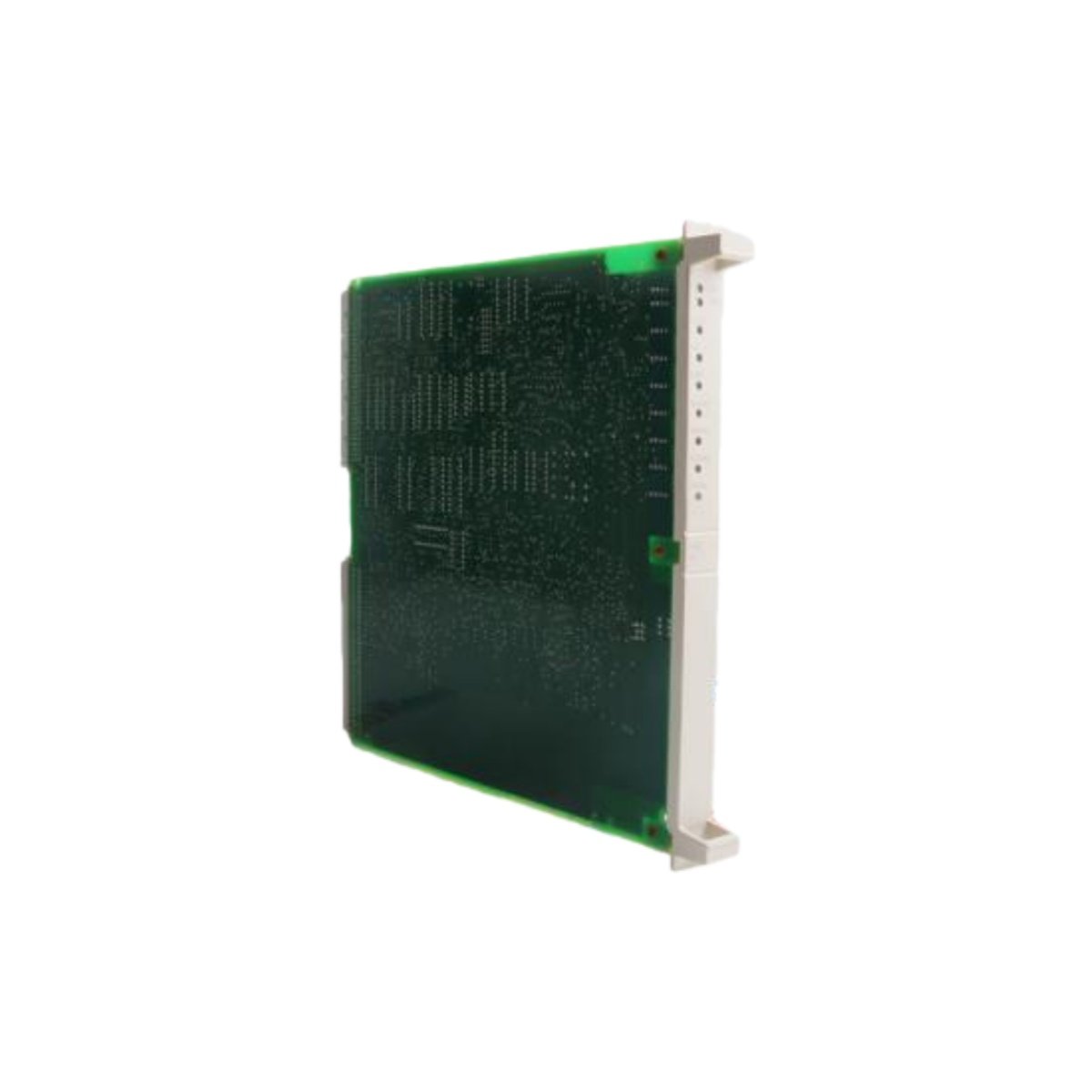

The ABB DSBC176 3BSE019216R1 actively extends and reinforces critical communication pathways within ABB automation systems. This dedicated bus extender board reliably maintains signal integrity across expanded networks. Consequently, system integrators achieve greater modularity and flexibility in their control architecture.
Core Purpose and Functional Role
This board primarily functions as a signal repeater and line driver for proprietary ABB bus systems. Moreover, it facilitates the modular expansion of I/O capacity and network reach. Therefore, engineers can integrate more devices or span longer distances without data loss. This capability is essential for building scalable and resilient industrial control solutions.
Detailed Technical Specifications
The table below provides the precise engineering and dimensional data for the DSBC176 3BSE019216R1.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Full Article Number | DSBC176 3BSE019216R1 |
| Catalog Description | Bus Extender Board |
| Part Condition | New |
| Made to Order | No (Standard Stock Item) |
| Primary Function | Communication Bus Signal Extension |
| Typical Mounting | Board-to-Backplane Connector |
| Operating Voltage | +5 V DC (Typically from backplane) |
| Power Consumption | < 2 W (Typical, varies with load) |
| Operating Temperature | 0°C to +55°C (Commercial Grade) |
| Storage Temperature | -25°C to +70°C |
| Board Dimensions (Est.) | Approx. 160 mm x 100 mm (Standard Eurocard) |
| Board Weight | Approx. 0.15 kg |
| Connector Type | High-density DIN 41612 or equivalent |
| Pin Count | 96 pins (Dependent on specific variant) |
| Compatibility | Designed for specific ABB controller backplanes |
Key Application Benefits and Integration Notes
Integrating this board directly enhances your system’s scalability and reliability. Furthermore, it ensures stable communication, which is paramount for real-time control loops. The board interfaces directly with the system backplane, simplifying installation. However, always verify compatibility with your specific ABB controller model and series. For systems incorporating protection devices like the RMS-TSG-TZ-C Static Trip, confirm the communication protocol alignment.
Ordering and Procurement Information
This component is a standard catalog item readily available for procurement. It is not a made-to-order product, which typically ensures shorter lead times. Always source genuine ABB parts to guarantee performance and system integrity.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
