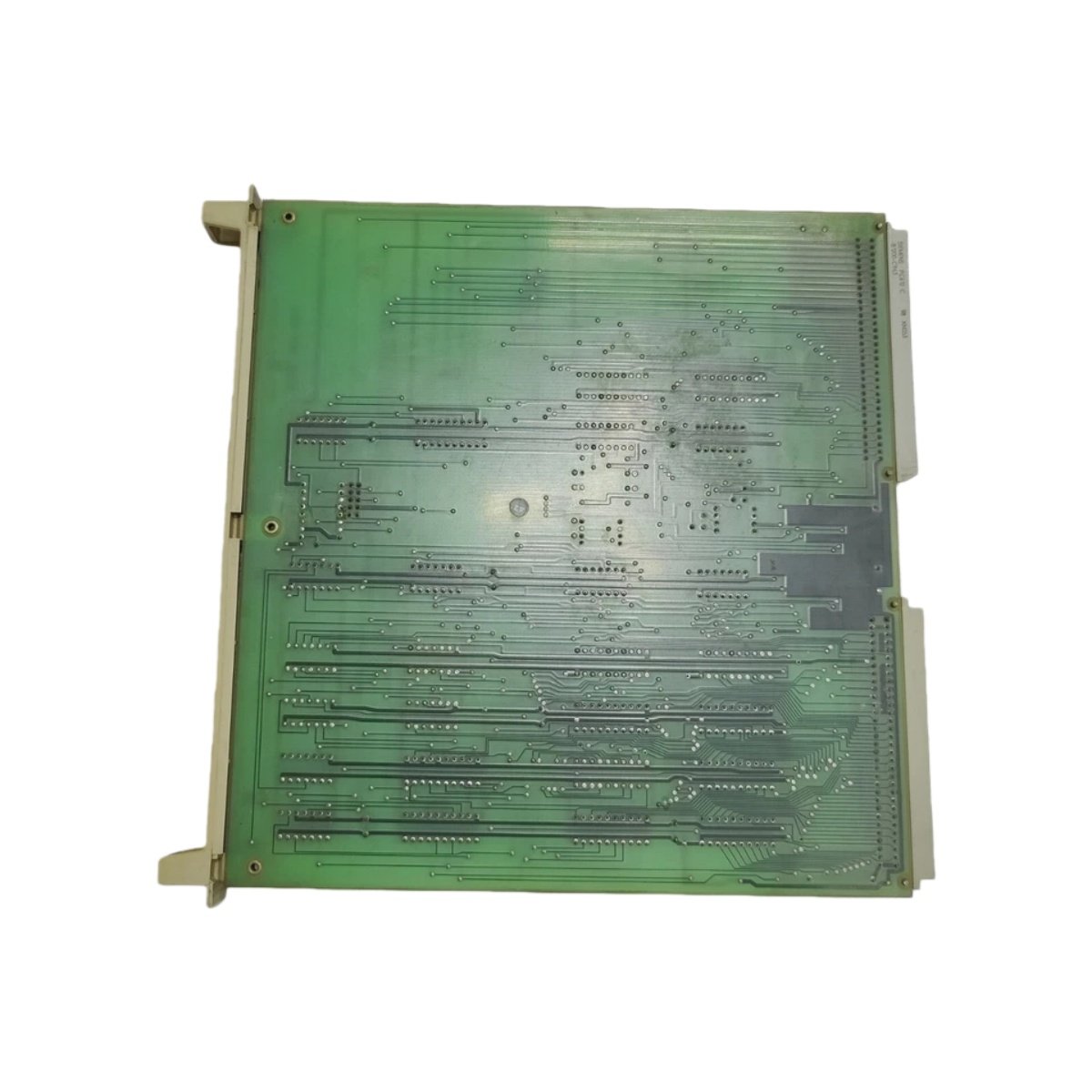

The ABB DSBC 110 ensures signal integrity at the end of your industrial communication bus. This termination module provides the correct electrical impedance for reliable high-speed data transmission. Consequently, it prevents signal reflections that can cause data errors and network instability.

Core Technical Specifications and Role

This module plays a vital role in the physical layer of an industrial control network. It terminates the bus cable to maintain signal quality across all connected devices. The following table details its primary function and system integration parameters.

Ensuring Reliable Network Communication

The DSBC 110 is a fundamental component for any robust ABB control system network. Its correct installation is crucial for achieving noise-free digital communication. Furthermore, this passive module requires no configuration or external power to perform its function. Therefore, it provides a simple yet effective solution for a common network engineering challenge.

Integration and Complementary System Components

You typically install this termination module at both ends of a linear bus topology. It works silently to support the active communication of controllers and I/O cards. For comprehensive system design, engineers pair it with other critical modules. These include network interfaces and protection devices like the RMS TSG TZ C Static Trip unit available on Alibaba. Ultimately, the ABB DSBC 110 is an indispensable part of building a stable and error-resistant industrial network.
