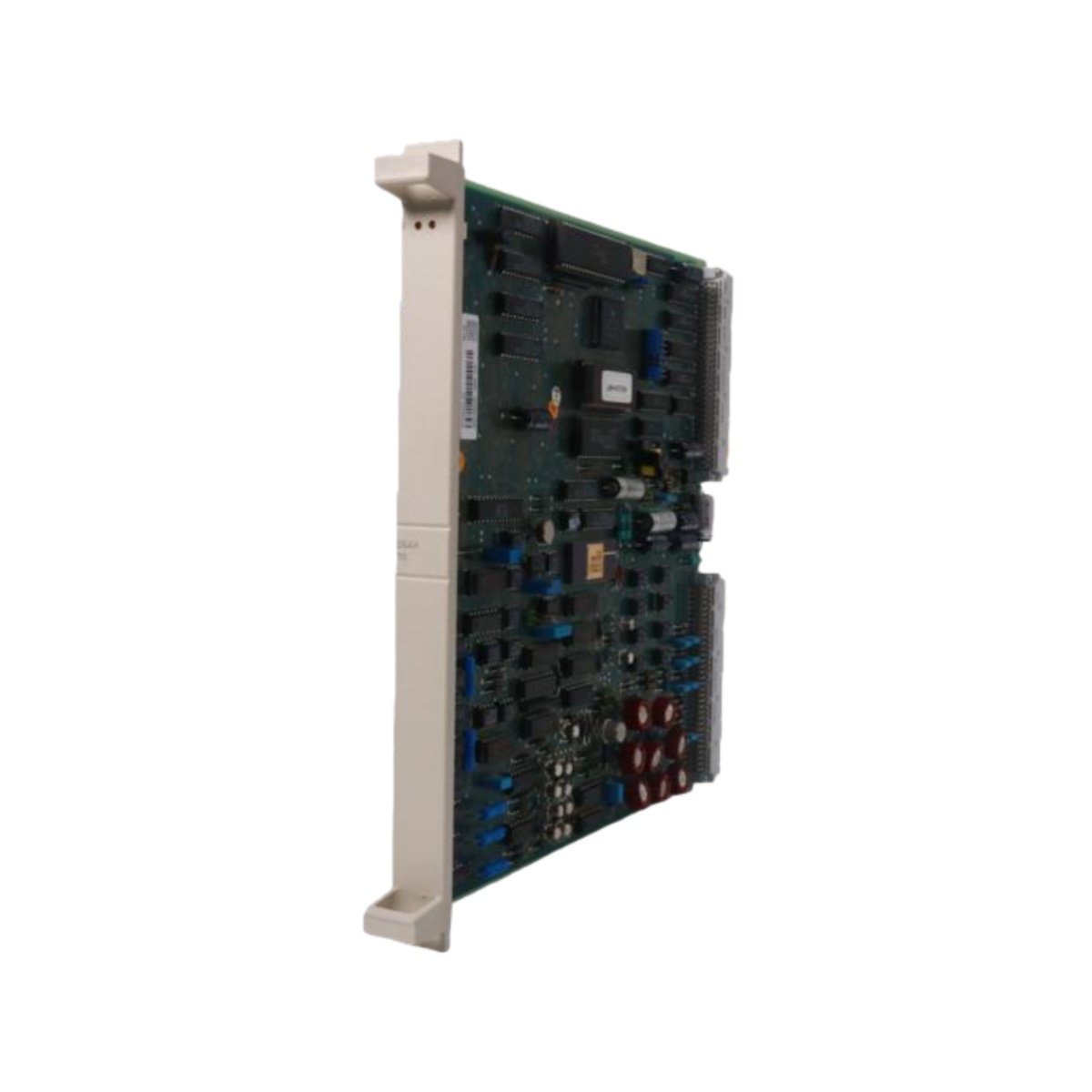

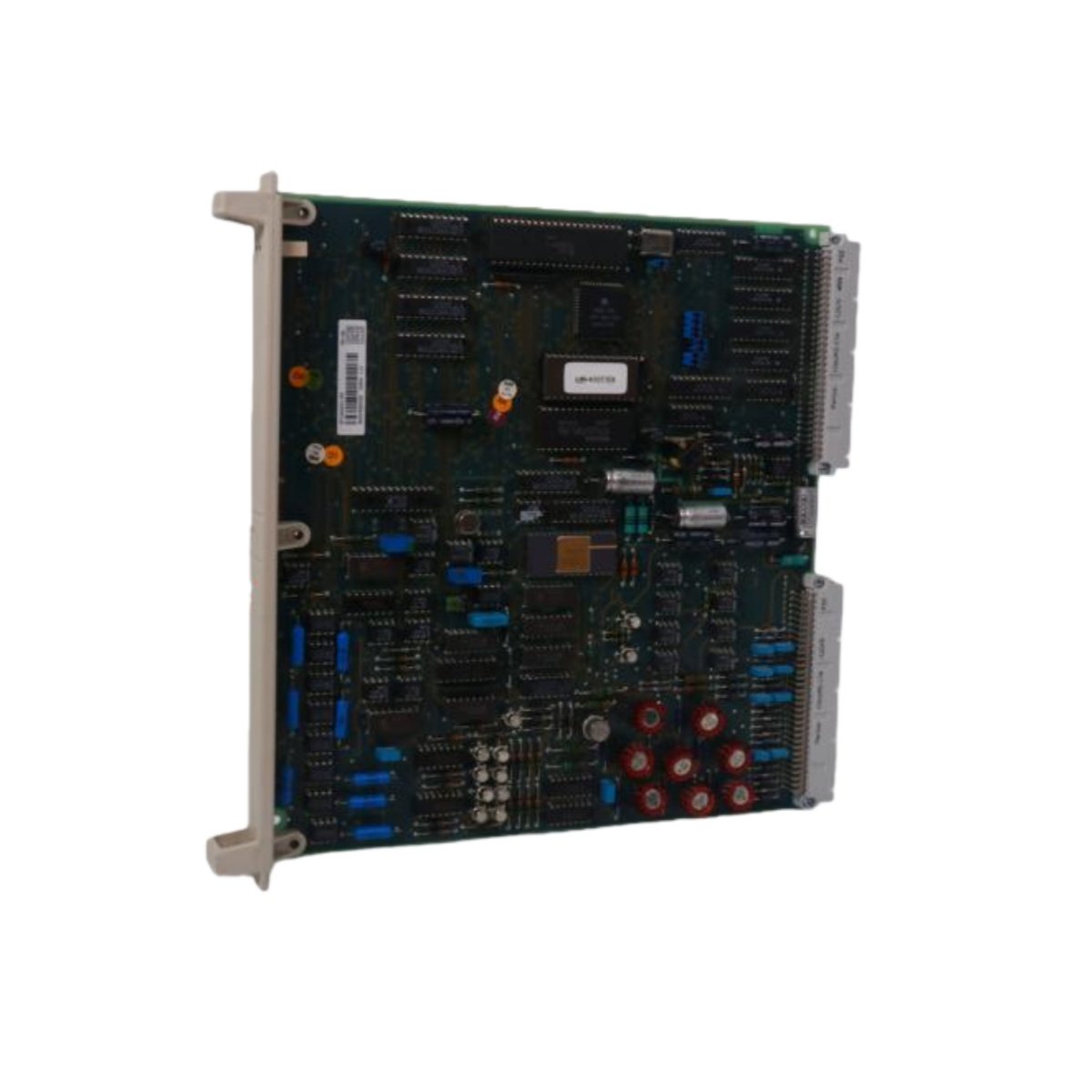

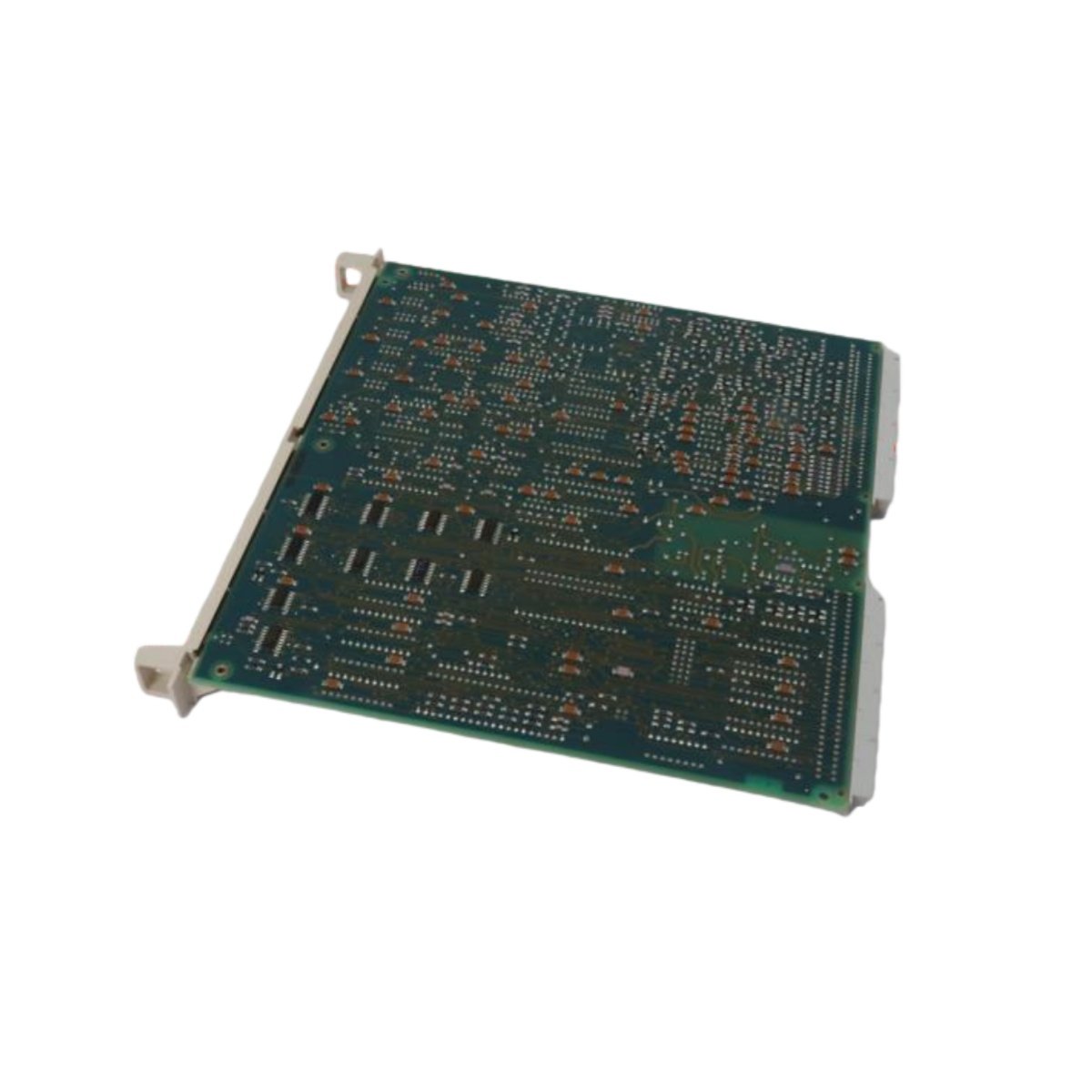

The ABB DSAX110 57120001-PC is a versatile mixed-signal interface board for automation. This module combines both analog input and output functionality on a single, compact card. Consequently, it provides an efficient solution for space-constrained control cabinet installations.
Core I/O Functionality and System Integration
This hybrid board excels at simultaneous signal acquisition and command generation. It handles multiple analog signals for comprehensive monitoring and control in one unit. Moreover, the DSAX110 series ensures reliable operation through integrated signal isolation and conditioning.
The module integrates directly into the ABB control system backplane for seamless data exchange. Therefore, it simplifies wiring and reduces the overall component count in your industrial rack.
Detailed Physical and Electrical Specifications
The 57120001-PC variant features a specific design optimized for reliable industrial performance. Below are its complete technical, dimensional, and compliance specifications.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | DSAX Series |
| Ordering Number / Model | 57120001-PC |
| Module Category | Mixed Analog Input/Output Board (I/O Module) |
| Analog Input Channels | 8 channels (typical configuration) |
| Analog Output Channels | 4 channels (typical configuration) |
| Input Signal Types | 4-20 mA, 0-10V, Thermocouple (Type J, K) |
| Output Signal Types | 4-20 mA, 0-10V |
| A/D & D/A Resolution | 16-bit (Typical for this series) |
| Typical Accuracy | ±0.1% of full scale |
| Channel Isolation | 500 V AC (Input to Output to System) |
| Product Dimensions (H x W x D) | ~185 mm x 25 mm x 120 mm (Eurocard) |
| Product Net Weight | 0.28 kg (Estimated) |
| Primary Component Count | 1x MPU, 8x ADC, 4x DAC, 12x Isolation Amplifiers |
| Electrical Interface | Dual high-density front connector blocks |
| Power Supply | +5V & ±15V from system backplane |
| Power Consumption | 2.8 W (Typical operation) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Signal Update Rate | Inputs: 50ms, Outputs: 10ms (All channels) |
| Diagnostic Coverage | Channel fault, over-range, under-range, wire break |
| Internal Energy Storage | 0 Joules (No internal batteries or capacitors) |
Application and Industry Sourcing Context
This mixed I/O module is ideal for compact control systems in packaging, batch processing, and water treatment. For sourcing specialized industrial spares, consider platforms like Alibaba. You may find related components, such as the RMS-TSG-TZ-C Static Trip unit, for electrical system protection.
