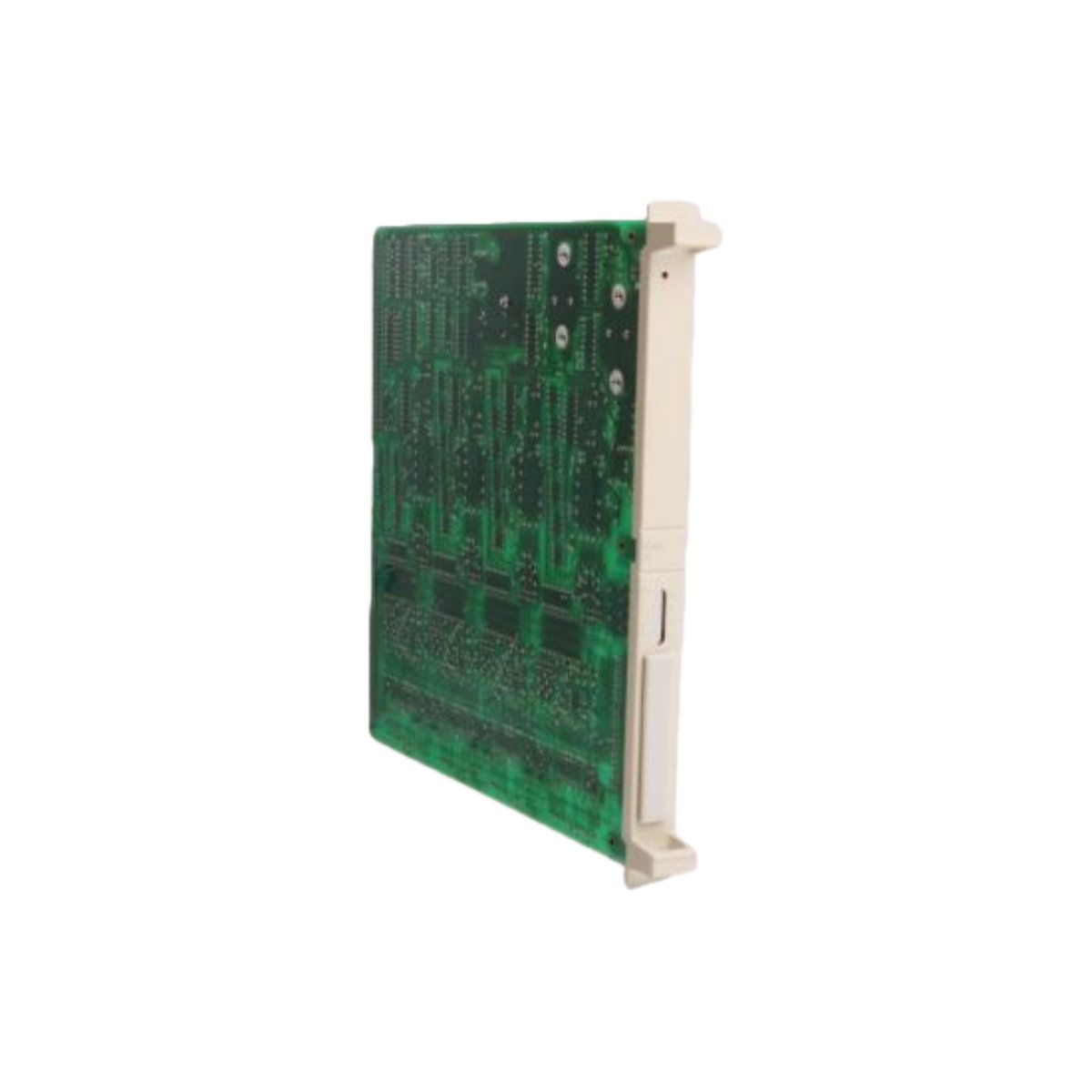

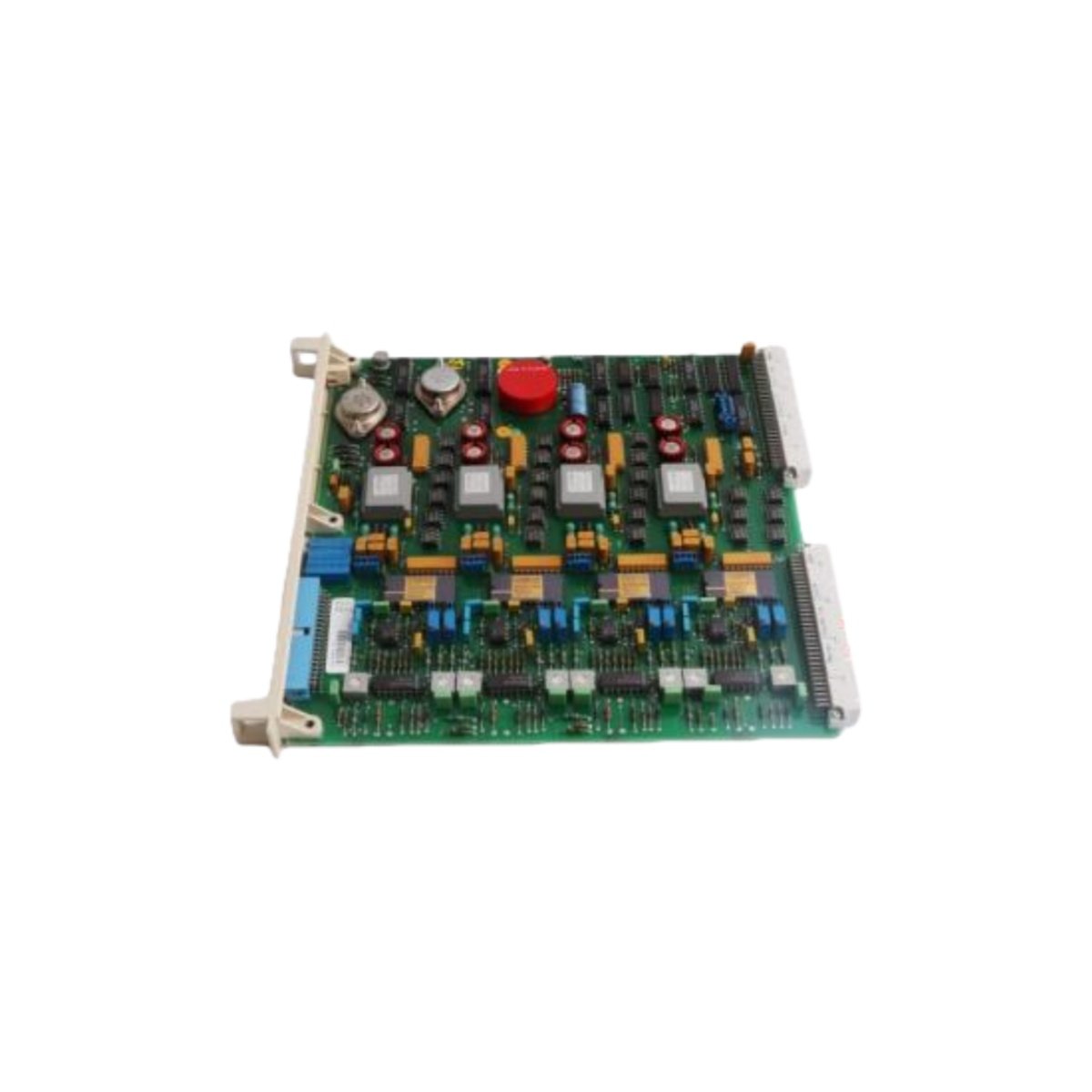

The ABB DSAO110 57120001-AT is a four-channel analog output module for industrial control. This precise module generates standard control signals to command field actuators and valves. Consequently, it forms a critical link in your automated process control loop.
Core Functionality and Signal Output
This module converts digital commands from the controller into stable analog outputs. It reliably provides both voltage and current signals for diverse industrial devices. Moreover, the DSAO110 features isolated outputs to ensure signal integrity and safety.
Its high accuracy ensures that your final control elements receive the exact intended command. Therefore, processes maintain precise regulation for variables like flow, pressure, and temperature.
Replacement Information and System Upgrade
ABB designates the 57120001-AT as a legacy module with specific upgrade paths. The manufacturer recommends the DSAO 120A combined with a DSTA 171 base unit as a direct replacement. However, this upgrade requires careful reconnection of field wiring during the retrofit process.
For compatible legacy parts, specialists often source from industrial suppliers. For instance, platforms like Alibaba list components such as the RMS-TSG-TZ-C Static Trip unit for electrical systems.
Detailed Physical and Technical Specifications
The module has a compact, robust design suitable for installation in ABB system racks. Below are its complete technical and dimensional specifications.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | DSAO Series |
| Full Model Number | DSAO110 57120001-AT |
| Exchange Number | EXC57120001-AT |
| Module Category | Analog Output Module (I/O Module) |
| Number of Channels | 4 Isolated Output Channels |
| Output Signal Types | 0-10V DC, 0-20 mA, 4-20 mA |
| Output Accuracy | ±0.05% of Full Scale |
| Channel Isolation | Yes, between channels and system |
| Product Dimensions (H x W x D) | 18 mm x 225 mm x 209.7 mm |
| Product Net Weight | 0.595 kg |
| Electrical Connection | Requires compatible front plate (e.g., 29491274-11) |
| Recommended Replacement | DSAO 120A + DSTA 171 Base Unit |
| Replacement Note | Wire reconnection is necessary during upgrade |
| WEEE Category | 5 – Small Equipment |
| Internal Battery Count | 0 |
| Primary Components | 4 x DAC, isolation circuitry, communication ASIC |
Application and Integration Context
This module is essential for driving final control elements in continuous process industries. It interfaces directly with devices like control valves, variable speed drives, and analog indicators. The ABB DSAO110 ensures your control strategy executes with precision and reliability.
Details
| Weight | 0.595 kg |
|---|---|
| Dimensions | 18 × 225 × 209.7 mm |
