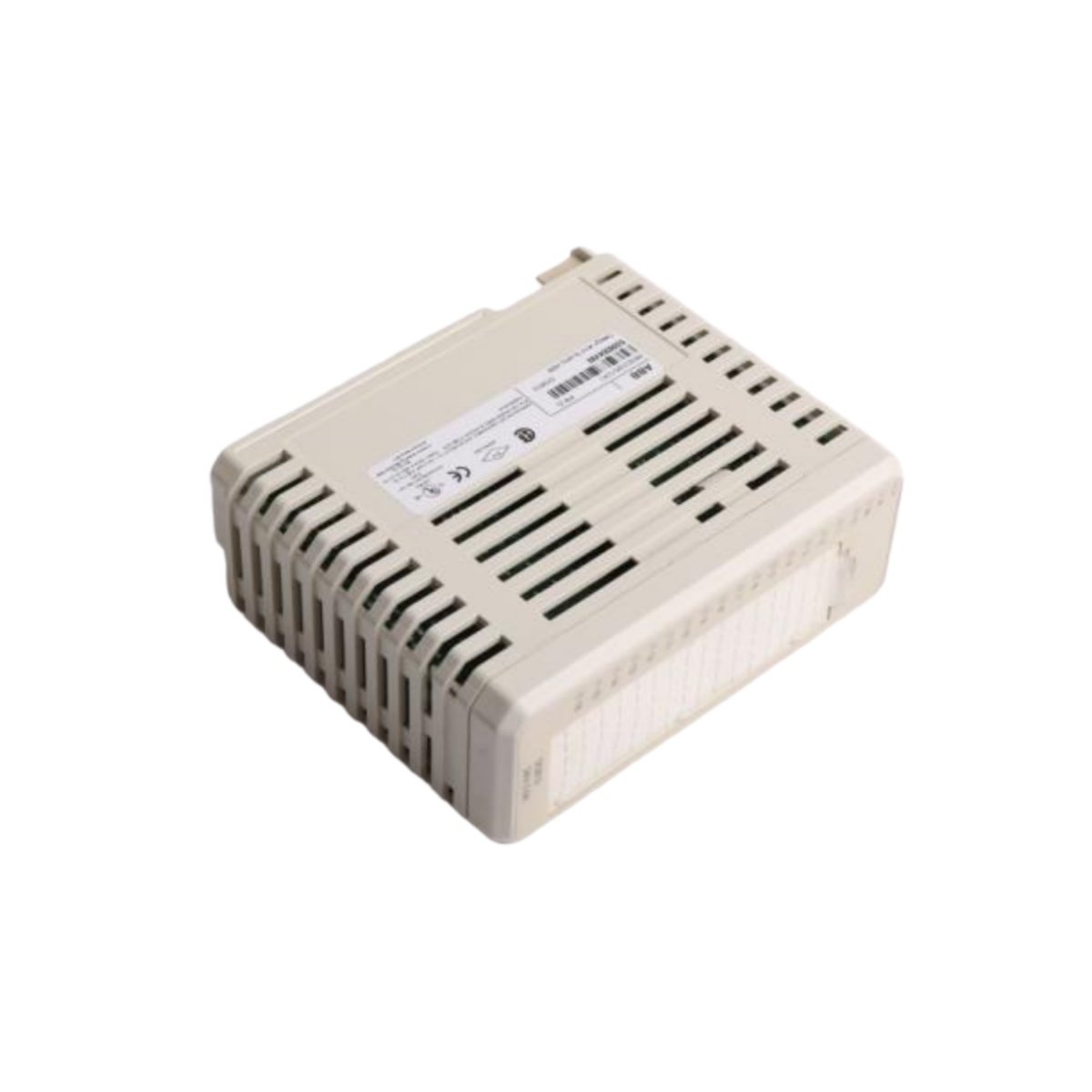

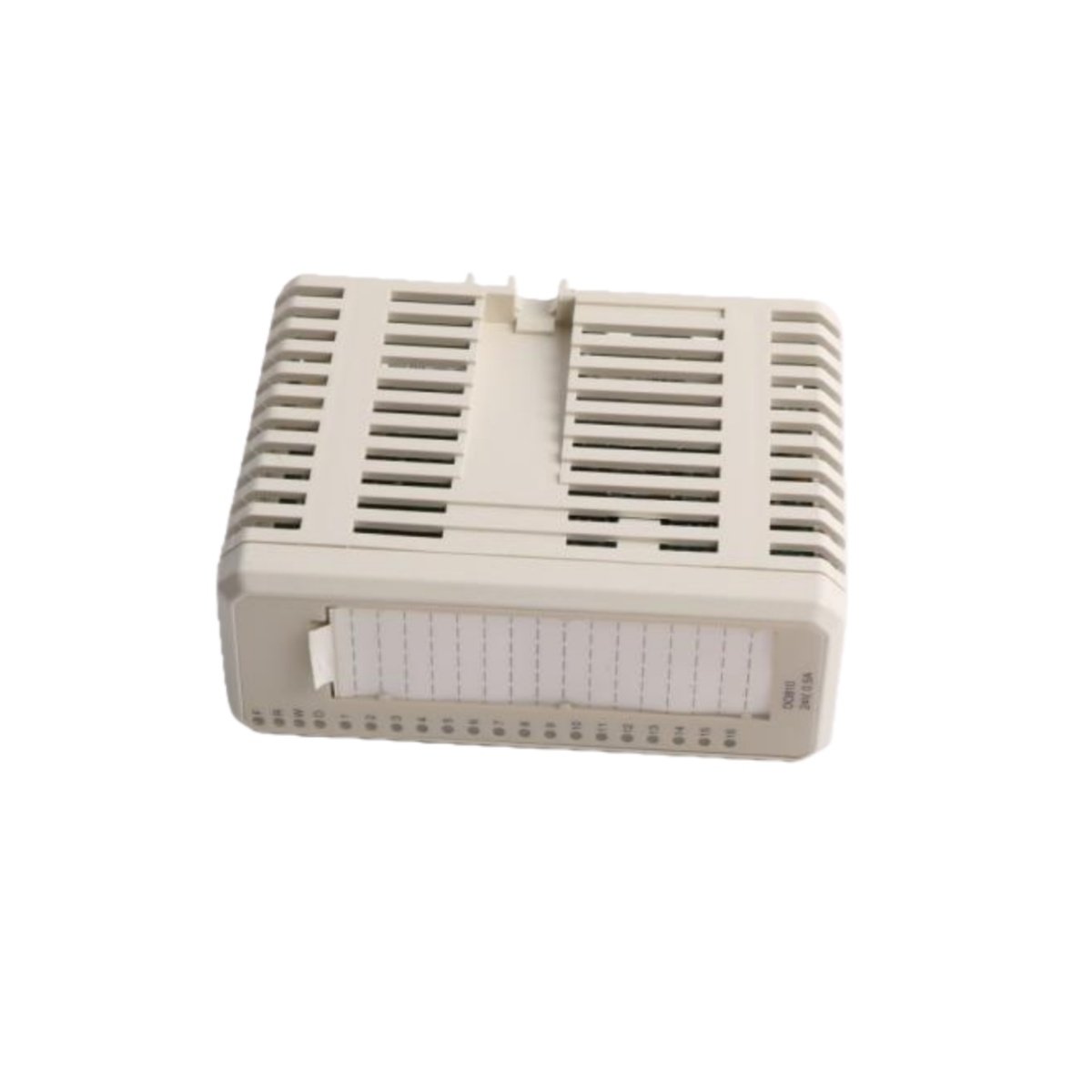

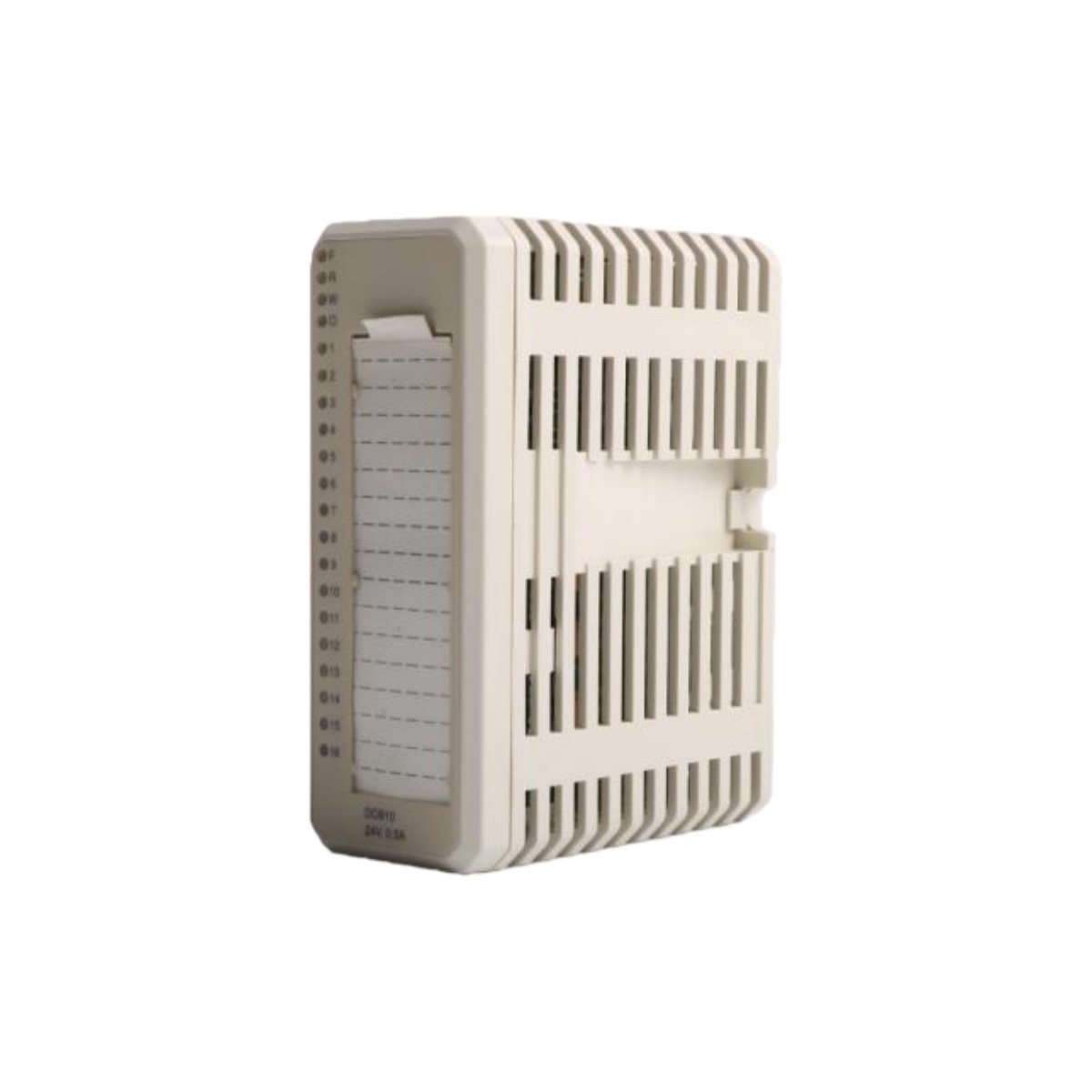

The ABB DO810 3BSE008510R1 is a versatile digital output module from ABB’s renowned Advant/800xA family. This module provides reliable switching for actuators, valves, and indicators within automated processes. Its robust design ensures consistent performance in demanding environments like power generation or chemical plants.
Core Functionality and Electrical Specifications
Engineers value this module for its ability to interface directly with field devices. Each output channel can switch a defined load, typically at 24VDC, with clear short-circuit and overload protection. The DO810 module communicates seamlessly with the controller via a fast internal system bus.
Furthermore, the module supports diagnostic feedback to the control system, which enhances overall plant safety and maintenance. This immediate status reporting allows for quick fault identification and resolution, minimizing potential downtime.
Detailed Physical and Installation Parameters
The module features a compact, rugged housing designed for DIN rail mounting in standard control cabinets. Its front panel includes clear LED indicators for channel status and module health. The terminal connections use a secure screw-clamp design for reliable wiring.
For example, the unit draws a minimal amount of power from the system backplane, contributing to an efficient overall energy design. Its specific dimensions and weight allow for high-density installations within system racks.
Comprehensive Technical Specifications
The following table details the critical technical parameters for the ABB DO810 3BSE008510R1.
| Parameter Category | Specification |
|---|---|
| Manufacturer | ABB |
| Full Model Number | DO810 3BSE008510R1 |
| Product Series | Advant/800xA |
| Module Type | Digital Output Module |
| Output Type | Sourcing, 24 VDC |
| Channel Count | Typically 16 channels |
| Rated Load per Channel | e.g., 0.5 A |
| Backplane Power Consumption | Low voltage, typically 5V logic supply |
| Electrical Isolation | Channel-to-channel and channel-to-system |
| Diagnostics | Per-channel status LED, module fault indication |
| Connection Type | Removable terminal block (screw-clamp) |
| Physical Mounting | DIN Rail |
| Primary Applications | Process Control, Motor Starters, Alarm Signaling |
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 234 × 108 × 18 mm |
