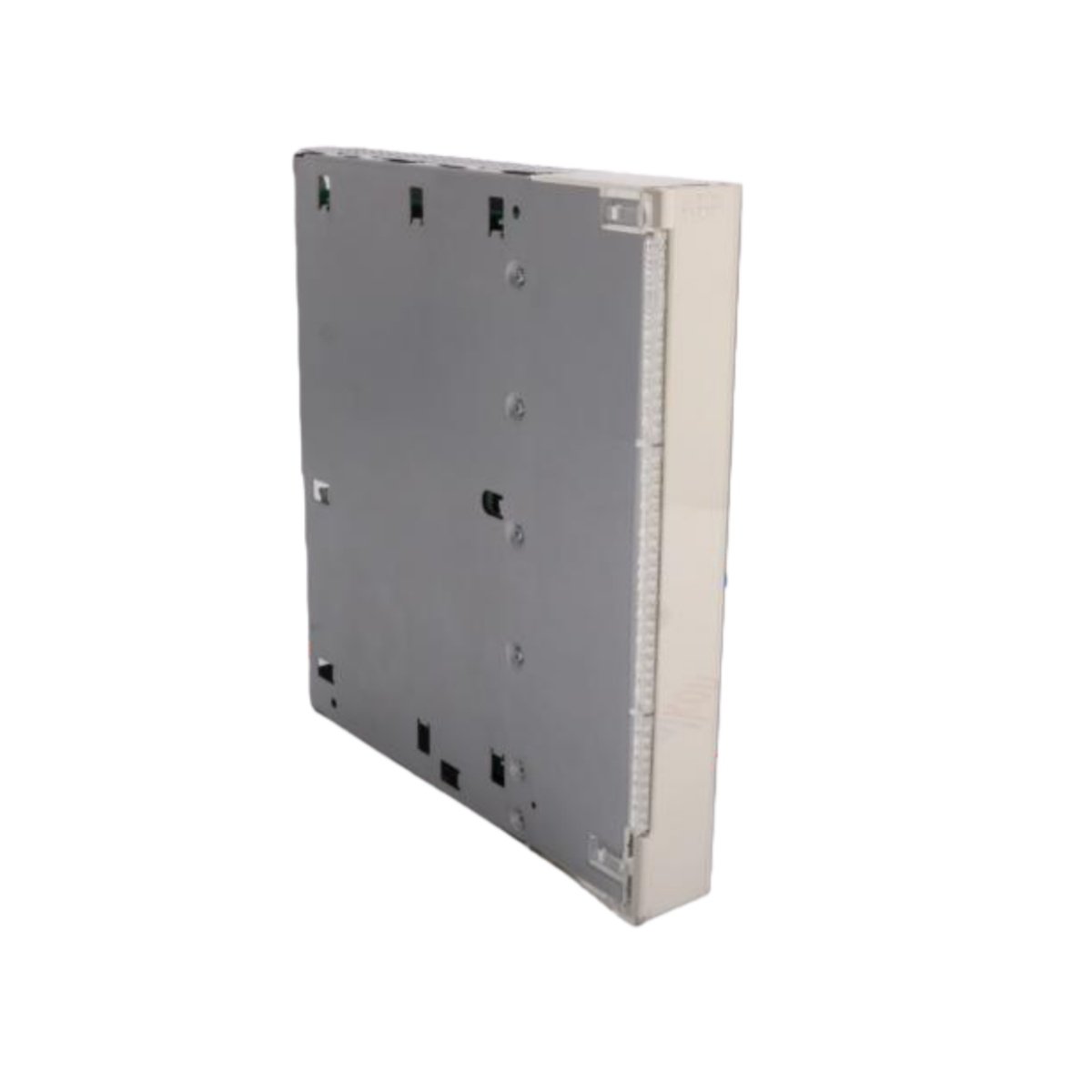

The ABB DO630 3BHT300007R1 is a 16-channel digital output module for high-voltage control. This module provides individual isolation for each of its sixteen output channels. Moreover, it supports switching voltages up to 250VAC for demanding industrial applications. Consequently, you gain precise and safe control over a wide array of AC-powered devices.

Unmatched Channel Isolation and Safety

Every channel on the DO630 3BHT300009R1 features its own independent isolation group. This design offers maximum protection against cross-channel interference and ground faults. Furthermore, this architecture significantly simplifies troubleshooting and enhances overall system safety. Therefore, it is ideal for complex applications where channel independence is critical.

Key Electrical Specifications

This digital output module is specifically engineered for alternating current loads. Each isolated channel can reliably switch voltages at the 250VAC level. Additionally, the module integrates seamlessly into the broader ABB automation system architecture. Its design ensures consistent performance with inductive loads like contactors and motor starters.

Detailed Technical and Compliance Data

Complete Specifications for ABB DO630 3BHT300007R1:

• Manufacturer & Full Model: ABB DO630 3BHT300007R1

• Product Type: Digital Output Module (I/O Module)

• Number of Channels: 16 independent output channels.

• Isolation Scheme: 16 groups (Fully isolated, 1 channel per group).

• Rated Switching Voltage: Up to 250 Volts AC.

• Output Type: Likely relay or solid-state for AC switching.

• Compliance: Fully follows EU RoHS Directive 2011/65/EU.

• WEEE Category: 5 – Small Equipment (No dimension > 50cm).

• Battery Content: Contains 0 batteries.

• SCIP Substance ID: 7aede7df-d7c6-44c3-9b86-d9065269424a (Sweden).

• HS Code / Tariff Number: 85389091 (Parts for apparatus of heading 8535-8537).

• Typical Loads: Control of AC solenoids, pilot lights, contactors, and small motors.

• Primary Benefit: Eliminates risk of cascading failures due to perfect channel separation.

Regulatory Compliance and Global Integration

The module complies fully with modern environmental directives like RoHS. Its assigned HS code facilitates smooth international shipping and customs clearance. Ultimately, the ABB DO630 3BHT300007R1 provides a compliant and highly reliable solution for global industrial projects.
