Precise Regulation for Essential Industrial Processes

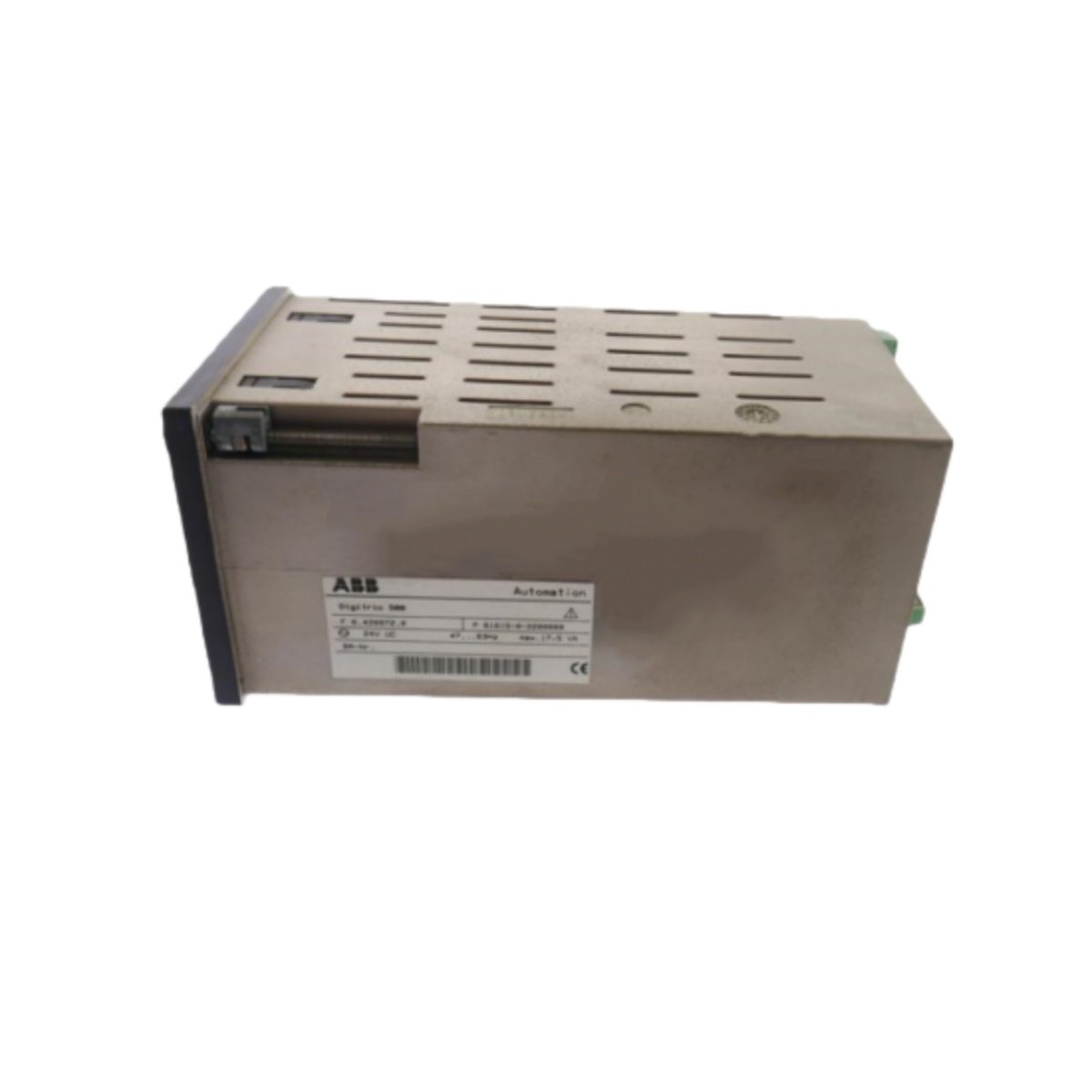

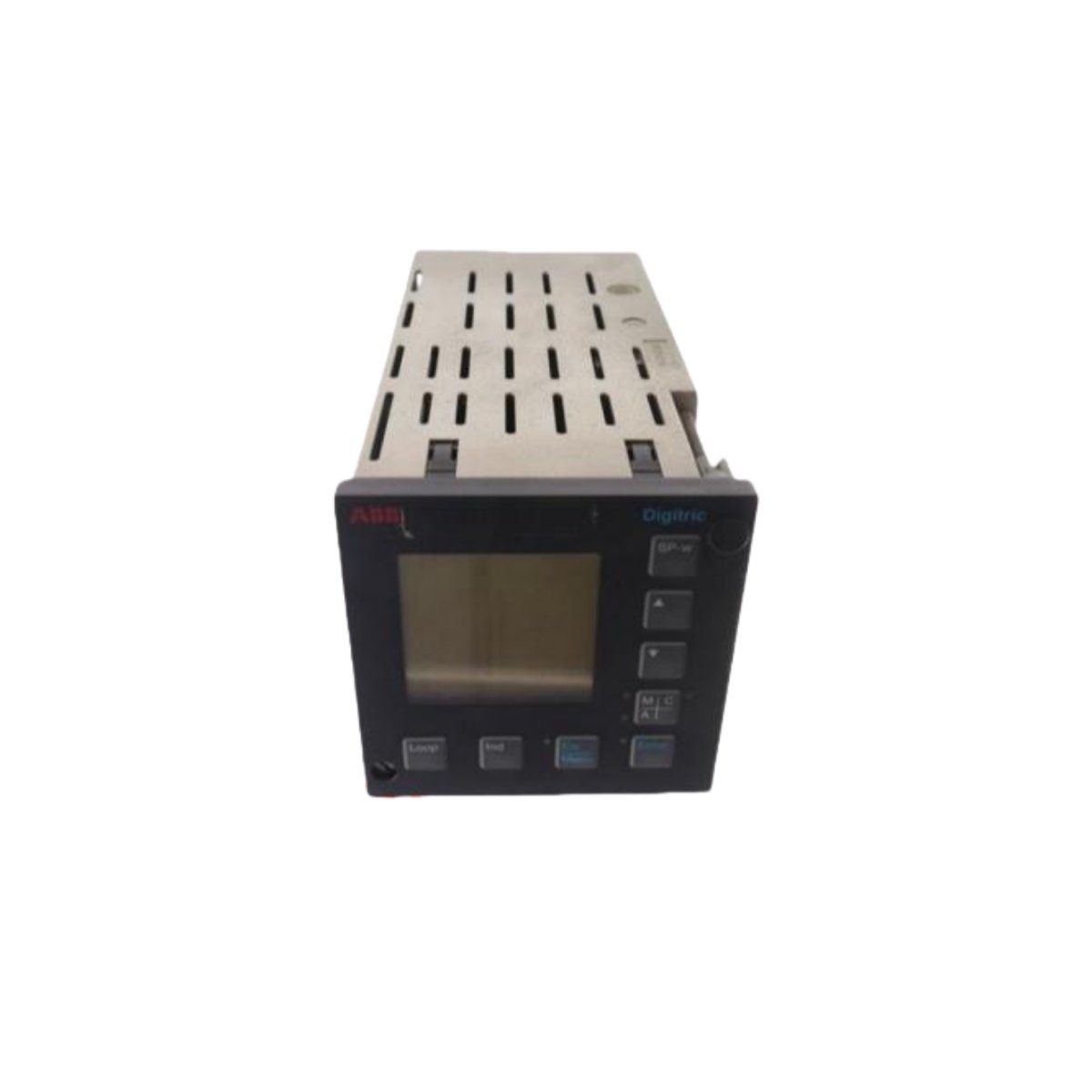

The ABB DIGITRIC 500 61615-0-1200000 is a dedicated industrial process controller. This unit belongs to the reliable ABB DIGITRIC 500 series for loop regulation. It specifically manages single control loops in small to medium-sized applications. Consequently, it delivers straightforward and accurate process automation for critical parameters.
Technical Specifications and Functional Design
This controller from ABB provides all necessary functions for autonomous loop control. Its design integrates signal input, processing, and output within a single compact device. Furthermore, the unit features a clear local interface for configuration and operator interaction.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | DIGITRIC 500 61615-0-1200000 |
| Product Series | DIGITRIC 500 |
| Product Category | Single-Loop Process Controller / Temperature Controller |
| Primary Function | PID Control for Single Process Loops |
| Number of Control Loops | 1 |
| Typical Input Signals | Thermocouple (J, K, S, etc.), RTD (Pt100), 0-20mA, 0-10V |
| Input Resolution | 16-bit or higher for precise measurement |
| Control Output Types | Relay, SSR drive, 0-20mA, 4-20mA (model dependent) |
| Output Rating (Relay) | Typically 5A @ 230VAC (Resistive) |
| Power Supply | 100-240 VAC, 50/60 Hz (or 24 VAC/VDC, varies) |
| Power Consumption | Typically 5-10 VA (Depends on model and output type) |
| Control Algorithm | Advanced PID with autotune and adaptive features |
| Display | Digital LED or LCD display with process value and setpoint |
| Front Panel Interface | Tactile keys or membrane for programming and operation |
| Communication Option | Optional serial communication (e.g., Modbus RTU) |
| Operating Temperature Range | 0°C to 55°C (Standard for panel-mounted devices) |
| Storage Temperature Range | -20°C to 70°C |
| Panel Cutout Dimensions | 92 mm x 92 mm (1/8 DIN standard) or 96 mm x 96 mm (1/4 DIN) |
| Module Depth Behind Panel | Approximately 100 mm |
| Unit Weight | Approximately 0.5 kg |
| Mounting | Front panel mounting in a standard DIN cutout |
| Internal Energy Storage | Non-volatile memory for parameters; no power backup for control |
| Relay Life Expectancy | > 100,000 cycles (mechanical) |
| Certifications | CE, cULus, and other international standards |
Key Features and Application Versatility
The DIGITRIC 500 controller performs reliable PID regulation for temperature, pressure, or flow. Its built-in autotune function automatically calculates optimal PID parameters. The device also provides alarm outputs for high/low limit warnings or process deviations. Moreover, its universal input accepts various sensor types without external transmitters. Therefore, it is ideal for applications in plastic extrusion, packaging machinery, and heat treatment ovens.
Application Context and Typical Use
Engineers deploy this controller for tasks requiring precise and stable setpoint maintenance. For example, it can regulate the temperature of an industrial furnace or a chemical reactor. The 61615-0-1200000 variant typically includes specific input/output combinations. Users select the exact model based on their sensor type and required output signal. Thus, it offers a cost-effective standalone solution for non-networked process loops.
Installation and Configuration Process
First, prepare a standard DIN cutout in the control panel door for the device. Next, wire the process sensor, power supply, and final control element (e.g., heater, valve) to the terminal blocks. Then, use the front panel keys to configure the input type, setpoint, and PID parameters. Finally, initiate the autotune function to allow the controller to optimize its performance for the specific process.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 234 × 108 × 18 mm |
