Product Overview

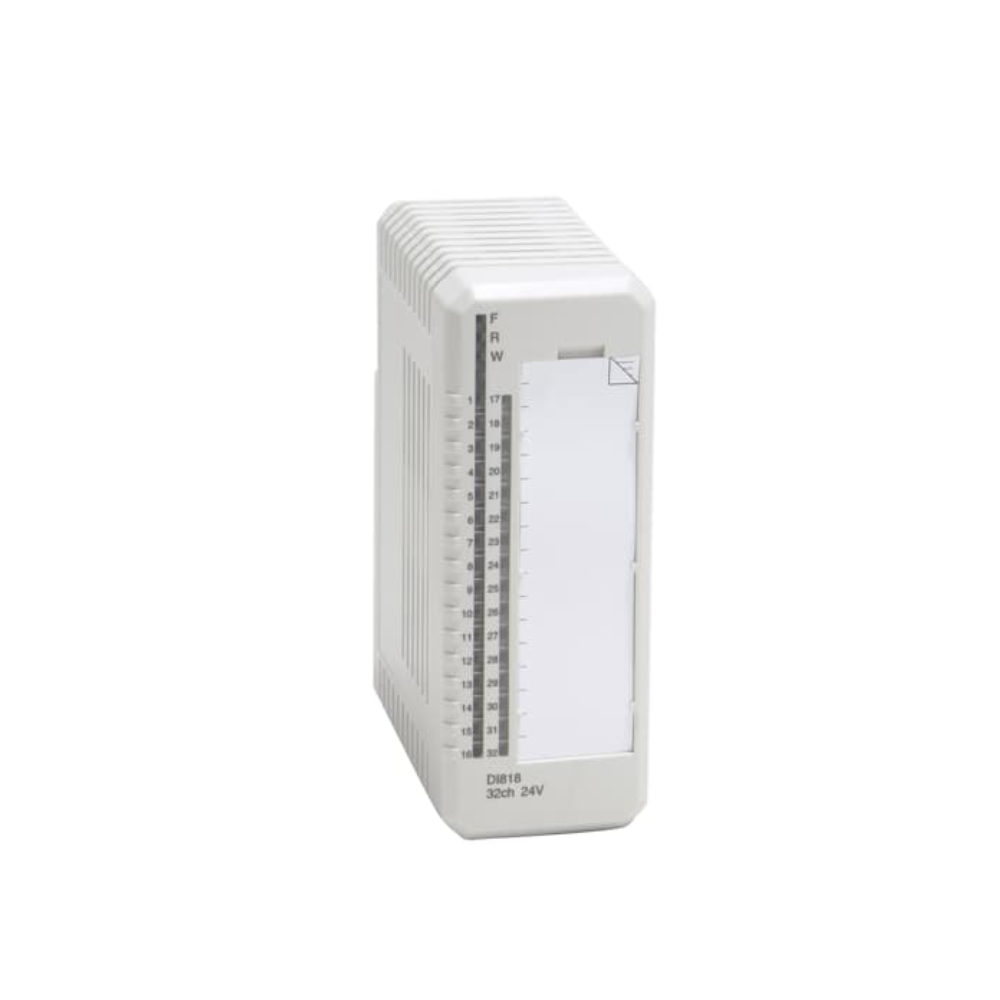

The ABB DI818 (3BSE069052R1) is a 32-channel digital input module designed for 24 V DC signals in the S800 I/O system. Moreover, it features two isolated groups of 16 channels each, providing enhanced safety and voltage supervision. This configuration ensures reliable signal acquisition even in demanding industrial environments.
In addition, built-in voltage supervision actively detects input drops and generates error signals for immediate operator awareness. Therefore, DI818 ensures high system reliability and consistent process monitoring.
Key Functional Highlights
- 32 Input Channels: Handles 24 V DC signals with current sinking capability.
- Two Isolated Groups: Each group of 16 channels is individually monitored for voltage and errors.
- Voltage Supervision: Continuously checks input voltage to improve system reliability.
- Signal Filtering: Selectable digital filter times (2, 4, 8, 16 ms) maintain signal integrity.
- Front-Panel Diagnostics: LEDs display fault, run, warning, and channel states.
- Marine & Industrial Certifications: Certified by ABS, BV, DNV, LR for demanding conditions.
Furthermore, these features make the module ideal for both new installations and retrofits, reducing maintenance efforts.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | DI818 |
| Article Number | 3BSE069052R1 |
| System Type | S800 I/O |
| Input Channels | 32 (Two groups of 16 isolated) |
| Signal Type | 24 V DC, current sinking |
| Input Voltage Range (“0”) | -30 to +5 V |
| Input Voltage Range (“1”) | 11 to 30 V |
| Input Impedance | 5.6 kΩ |
| Filter Time Settings | 2, 4, 8, 16 ms |
| Current Limiting | Sensor power current limited by MTU |
| Max Field Cable Length | 600 m |
| Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Power Dissipation | Typ. 3.1 W |
| Current Consumption | +5 V Modulebus: 70 mA, +24 V External: 25 mA |
| Dimensions (W×H×D) | 45 × 119 × 102 mm |
| Weight | 0.15 kg |
| Protection Class | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5–95%, non-condensing |
| Compliance | CE, RoHS, WEEE, EN 61000-6-4, EN 61000-6-2 |
Consequently, the module provides ISA-S71.04 G3 corrosion protection, suitable for offshore and humid industrial environments.
System Integration & Typical Applications
The DI818 module integrates seamlessly into the S800 I/O system. Moreover, its compact design and detachable terminals simplify installation, whether for new systems or retrofits.
Typical Applications:
- Automation Control Systems: Monitors distributed digital inputs.
- Power Plants: Tracks status of switchgear and circuit breaker signals.
- Process Industries: Integrates into control cabinets for water, chemical, or pulp processes.
- Marine Systems: Approved for shipboard automation with ABS, DNV, LR certification.
Therefore, DI818 ensures reliable signal acquisition and real-time monitoring across industrial applications.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 1143 × 2591 × 3023 mm |
