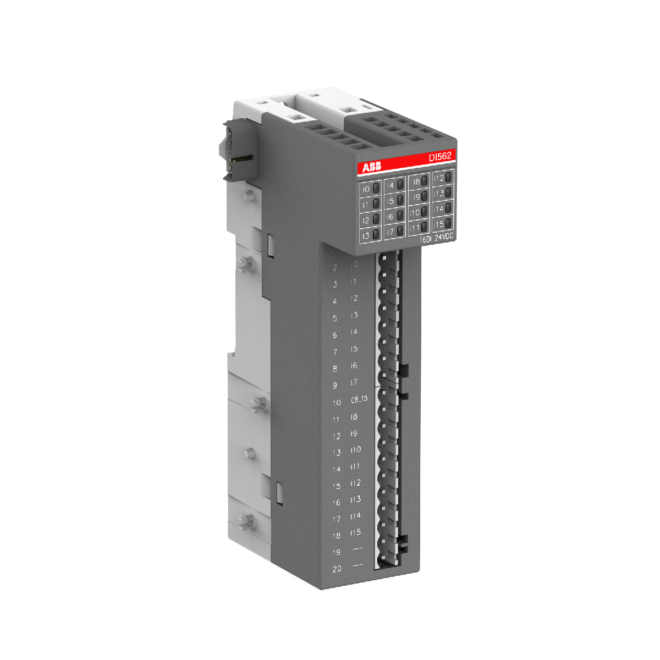

The ABB DI562 is a 16-channel digital input module designed for the S500-eCo PLC system. It supports both sink and source input configurations at 24V DC, ensuring stable and accurate digital signal acquisition for industrial automation tasks. Compact and reliable, it’s ideal for machine control and distributed I/O applications.

Key Specifications

• Model: DI562
• Channels: 16 digital inputs
• Input Type: 24V DC sink/source
• Input Current: 5 mA
• Max Input Voltage: 0 – 30 V
• Response Delay: 8 ms
• Connection Type: Pluggable
• Protection Rating: IP20
• Operating Temp: 0°C to +60°C
• Storage Temp: -40°C to +70°C
• Net Weight: 0.116 kg
• Package Weight: 0.215 kg
• Dimensions (L x H x W): 135 x 74 x 34 mm
• HS Code: 85371091
• UNSPSC: 32151705
• Country of Origin: China
• Minimum Order Quantity: 1 piece
• WEEE Category: Small Equipment
• SCIP Reference: 2a5298d5-fdc0-42f2-82a6-f96a09eb394f
