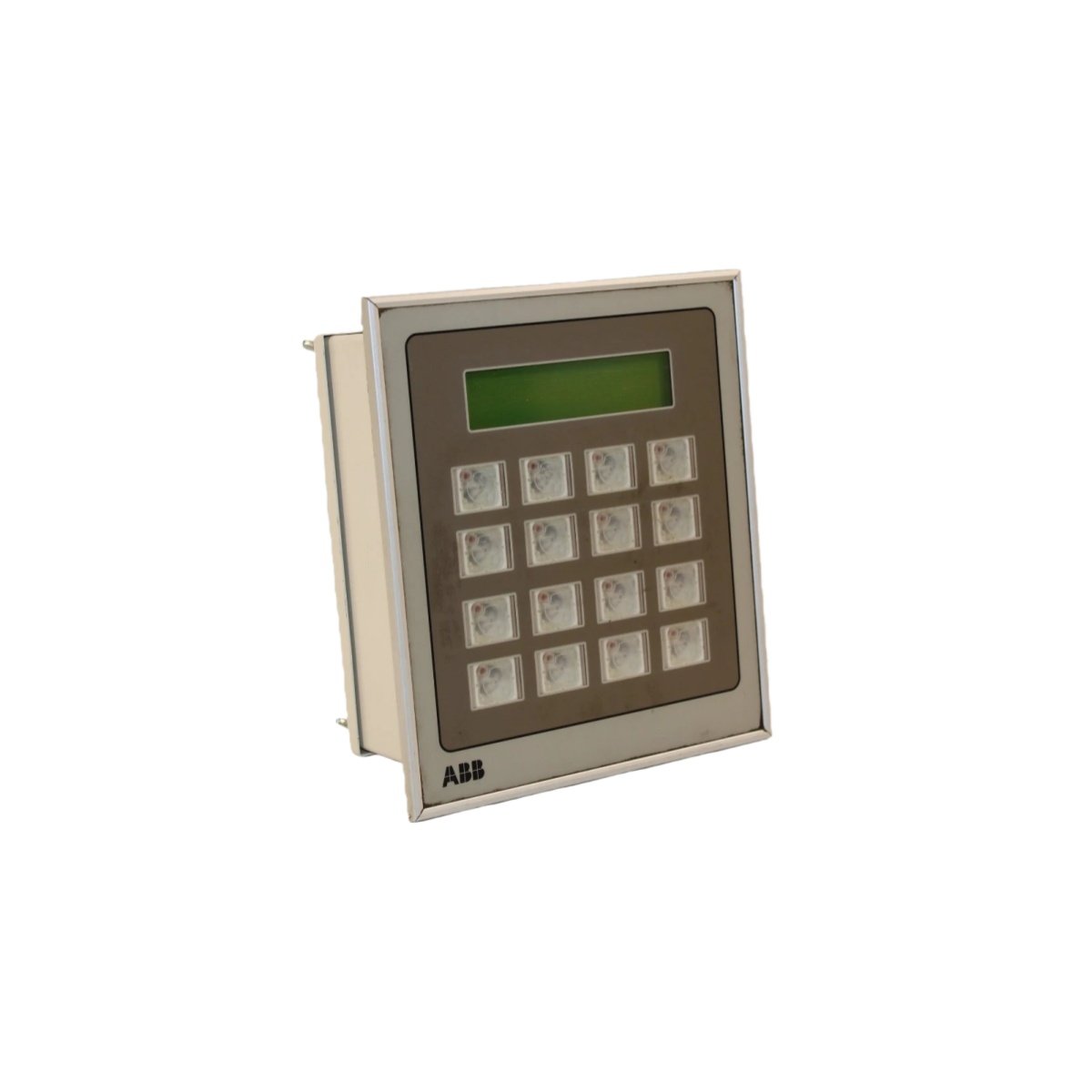

The ABB DCU30/7 provides a centralized local interface for industrial drive systems. This desk-mounted unit offers direct operator control and real-time system monitoring. It serves as a primary command station for ABB’s DC drive technology.
Designed for Intuitive Operator Interaction

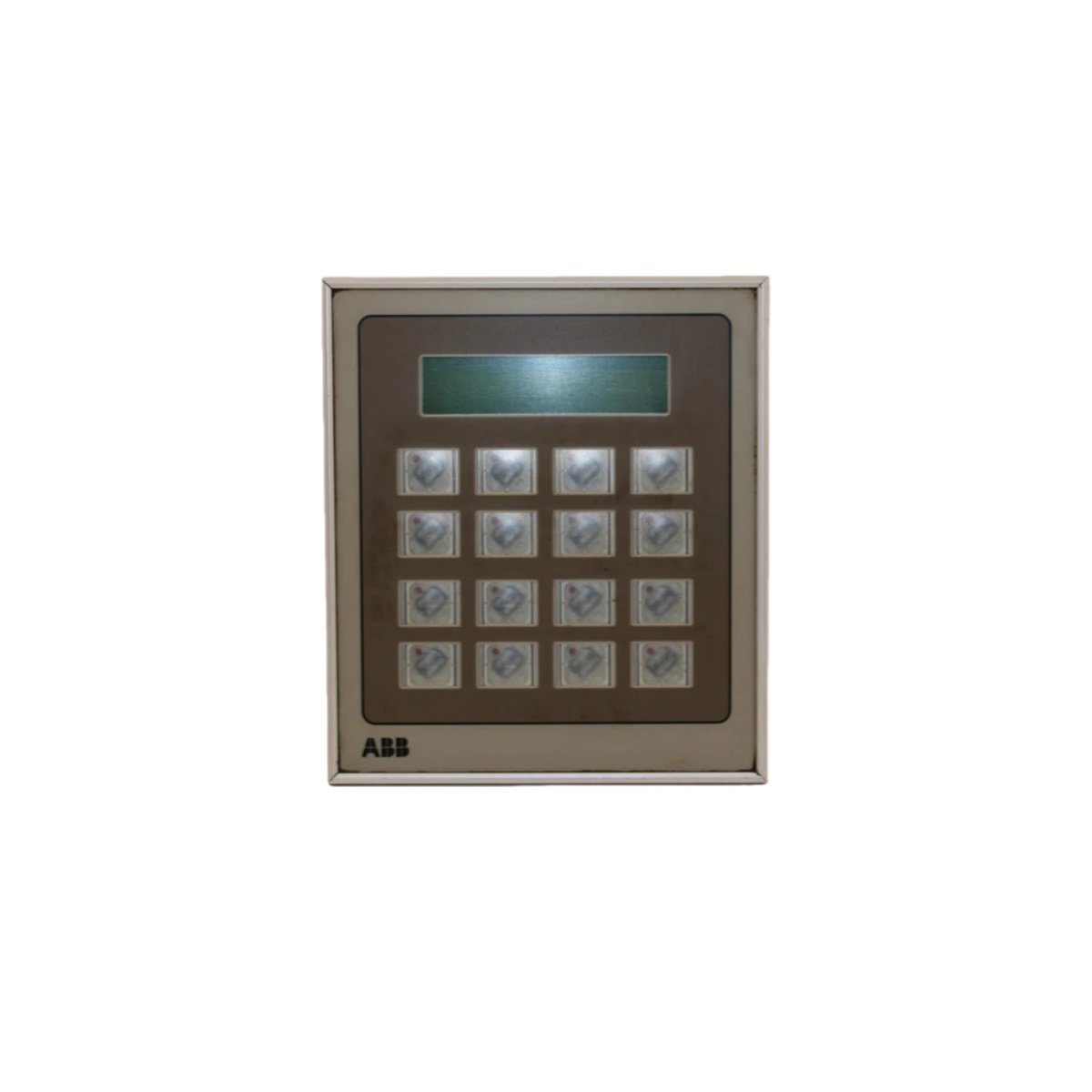

This control unit features a clear display and dedicated function keys. Consequently, operators can easily start, stop, and adjust drive parameters on-site. The ABB DCU30/7 delivers immediate status feedback for informed decision-making.
Complete Technical Specifications
The following table details the construction and interface specifications of the ABB DCU30/7 unit.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | ABB DCU30/7 |
| Product Type | Desk Control Unit (Local Operator Interface) |
| Primary Function | Local Control & Monitoring for DC Drives |
| Display Type | Alphanumeric or segmented LED/LCD display |
| Control Elements | Dedicated push buttons, potentiometers, and switches |
| Interface Connection | Hardwired cable to the main drive controller |
| Typical Indicators | Run/Stop, Ready, Fault, and speed/current indicators |
| Enclosure Material | Industrial-grade metal or robust plastic |
| Mounting Style | Designed for fixed installation on a desk or panel |
| Front Panel Rating | Typically IP54 for dust and water splash protection |
| Communication | Direct wired connection to drive I/O terminals |
A Robust Interface for Direct Drive Management
Engineers value this unit for its straightforward layout and durable construction. Furthermore, its local control capability provides essential manual oversight during setup and maintenance. The DCU30/7 is a reliable and tactile interface for critical drive operations.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 234 × 108 × 18 mm |
