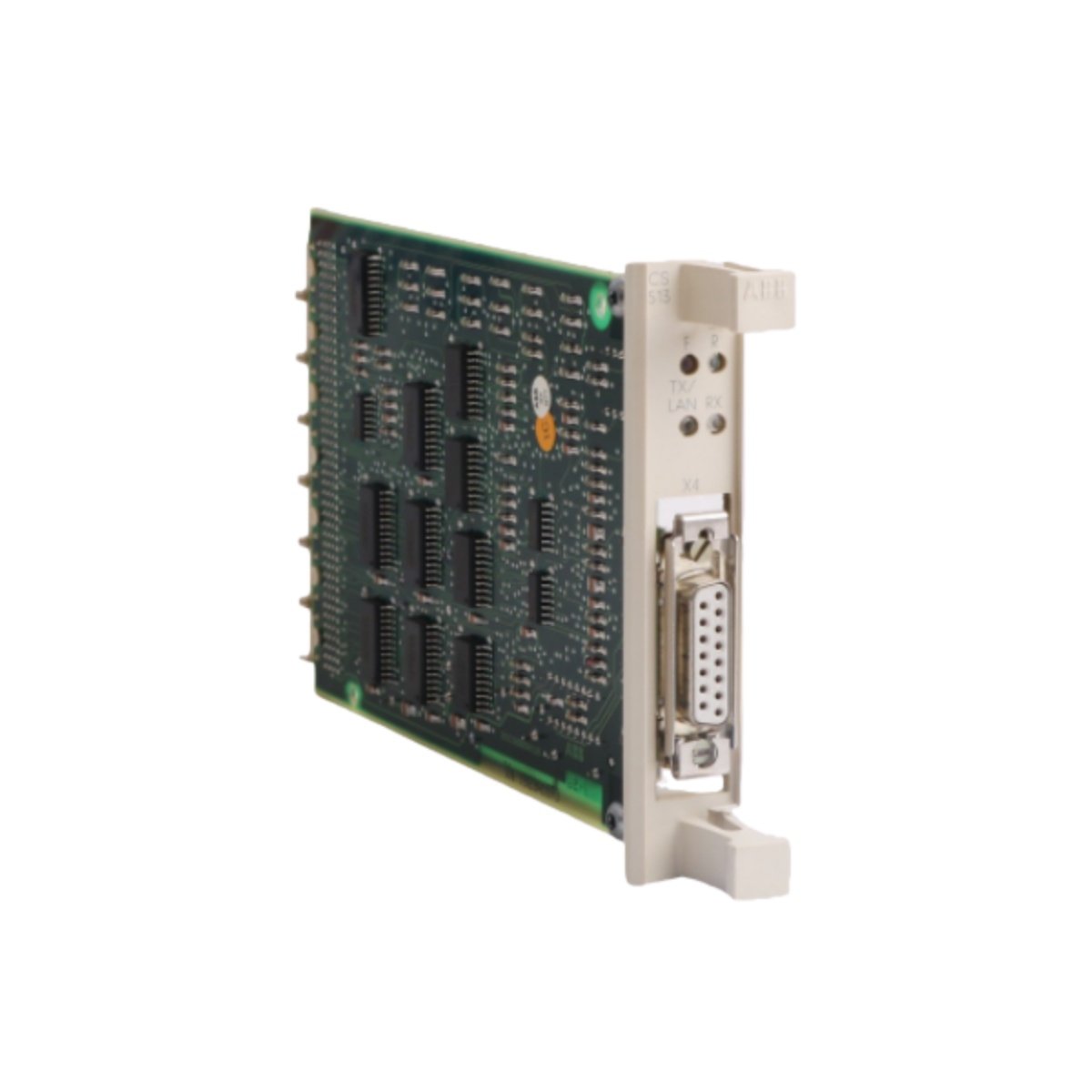

The ABB CS513 3BSE000435R1 provides robust Ethernet connectivity for ABB industrial control systems. This LAN module implements the IEEE 802.3 standard to ensure reliable network communication. Consequently, it seamlessly integrates AC 410, S400, and AC 450/460 controllers into modern plant networks.
Compact Design with Precise Dimensions
This communication module features a compact and lightweight form factor. It measures 234 mm in length, 108 mm in width, and only 18 mm in height. The unit weighs a mere 0.2 kg, making it ideal for dense control panel installations.
Flexible Configuration and Compatibility
The module includes configuration switches to set its operational mode. Position 1 selects the standard BIN=MB300 memory bin setting for typical use. Alternatively, Position 3 selects the extended BIN=MB300E mode for greater data capacity.
Detailed Technical Specifications
The table below lists the complete technical and physical parameters for this ABB module.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | ABB |
| ABB Type Designation | CS513 |
| Product ID / Article Number | 3BSE000435R1 |
| Product Type | Communication Module (IEEE 802.3 LAN) |
| Compatible Systems | ABB AC 410, S400, AC 450, AC 460 |
| Network Standard | IEEE 802.3 (Ethernet) |
| Configuration Switch 1 | BIN=MB300 (Standard) |
| Configuration Switch 3 | BIN=MB300E (Extended) |
| Dimensions (L x W x H) | 234 mm x 108 mm x 18 mm |
| Net Weight | 0.2 kg |
| RoHS Status | Compliant (EU Directive 2011/65/EU) |
| WEEE Category | 5 (Small Equipment) |
| Battery Count | 0 |
| Key Replacement Part | AC450: 3BSE091971R1 (CS513AK01) |
Key Features and System Integration
The CS513 module enables high-speed data exchange between controllers and supervisory systems. It supports essential industrial protocols for real-time control and monitoring. Furthermore, its RoHS-compliant design adheres to stringent environmental and safety standards.
This module acts as a critical backbone for distributed control architectures. It links multiple ABB controllers to form a cohesive and responsive automation network. Technicians can also replace it with specific kits like the 3BSE091971R1 for legacy AC450 systems.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 234 × 108 × 18 mm |
