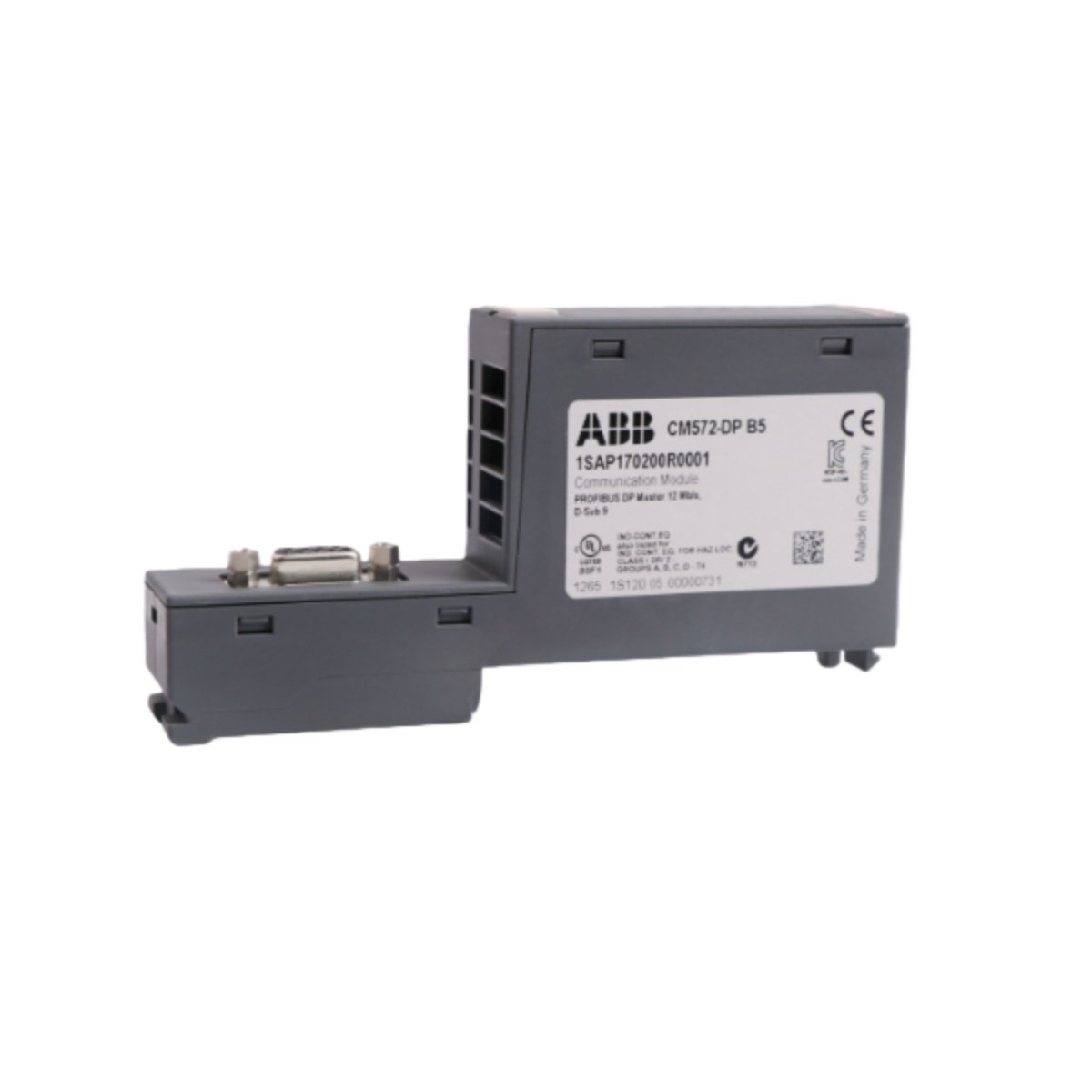

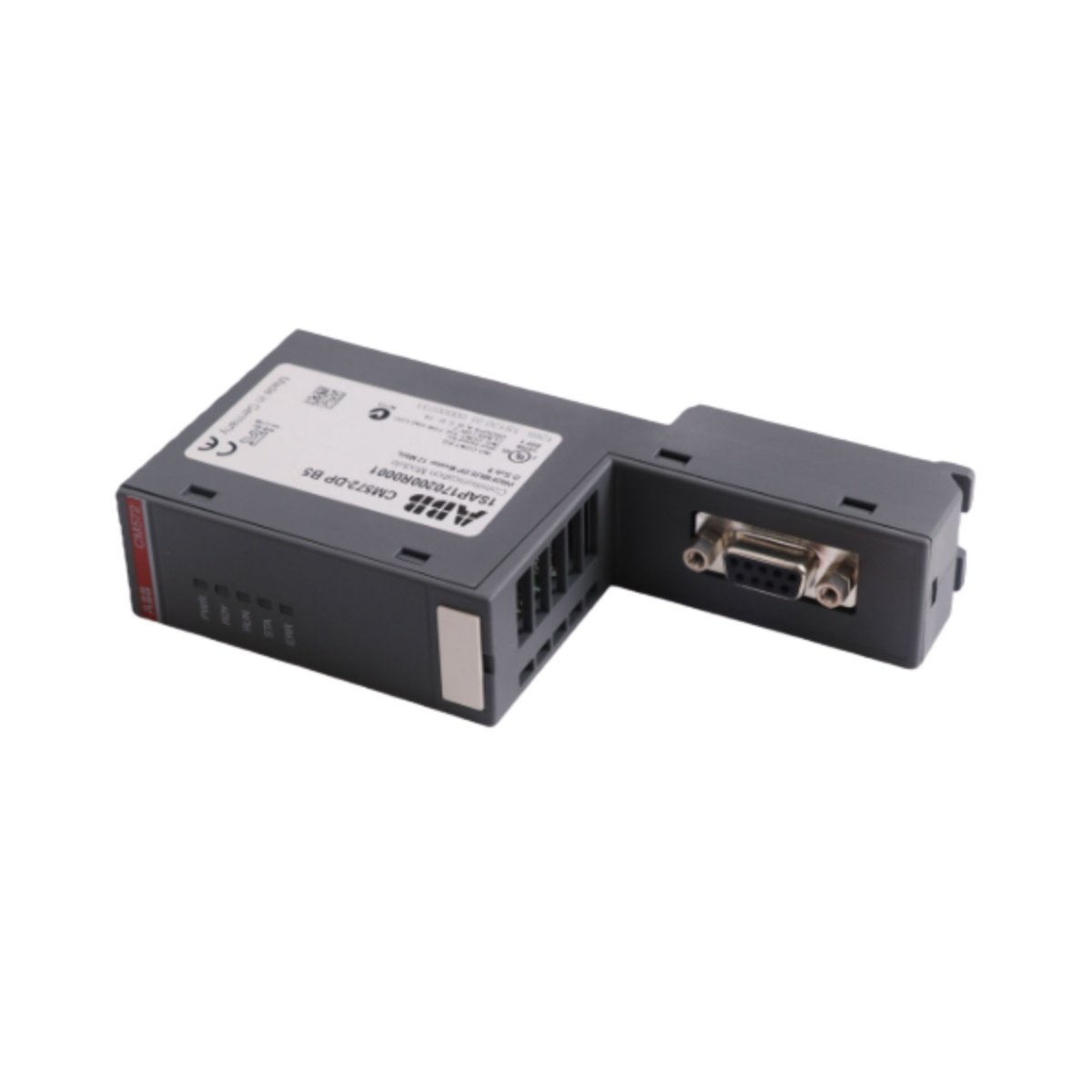

The ABB CM572-DP 1SAP170200R0001 is a key communication module for the Advant AC500 PLC family. It functions as a dedicated PROFIBUS DP Master, enabling robust connections to a wide array of field devices. This module integrates seamlessly into distributed automation systems to manage high-speed data transfer. Furthermore, its reliable performance makes it essential for complex industrial networking and control tasks.
Core Technical Specifications and Physical Design
Engineers select this module for its proven interoperability within the ABB AC500 ecosystem. The CM572-DP 1SAP170200R0001 establishes a centralized master station on the PROFIBUS DP network. It communicates efficiently with sensors, drives, and other intelligent slave devices across the factory floor. The module features industry-standard D-SUB connectors for secure and durable physical cable connections.
The following table outlines the primary technical and physical parameters for the ABB CM572-DP 1SAP170200R0001:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | ABB |
| Product Family / Series | Advant AC500 PLC |
| Model Designation | CM572-DP |
| ABB Part Number | 1SAP170200R0001 |
| Module Type | PROFIBUS DP Master Communication Module |
| Primary Application | Industrial Automation & System Integration |
| Network Protocol | PROFIBUS DP (Decentralized Peripherals) |
| Physical Interface | D-SUB 9-pin Connector (typically) |
| Data Transfer Rate | Up to 12 Mbps (supports standard PROFIBUS DP speeds) |
| Compatible PLC | ABB AC500 Series CPUs |
| Module Dimensions (approx.) | Standard AC500 module form factor |
| Module Weight (approx.) | 0.2 kg |
| Operating Voltage | 24 VDC (via PLC baseplate) |
| Isolation | Galvanic isolation for bus interface |
System Integration and Application Context
This module acts as a critical bridge between the central ABB AC500 controller and distributed peripherals. It simplifies the architecture of large-scale automation projects in manufacturing and process industries. Consequently, the CM572-DP 1SAP170200R0001 is ideal for applications requiring synchronized control of motors, valves, and I/O stations over a single cable. Users must configure it with appropriate software like ABB’s Automation Builder.
While some distributors may list it as discontinued, the module remains available in the new and surplus markets for system expansion or maintenance. Always verify firmware compatibility with your specific AC500 CPU model to ensure optimal network performance and stability.
