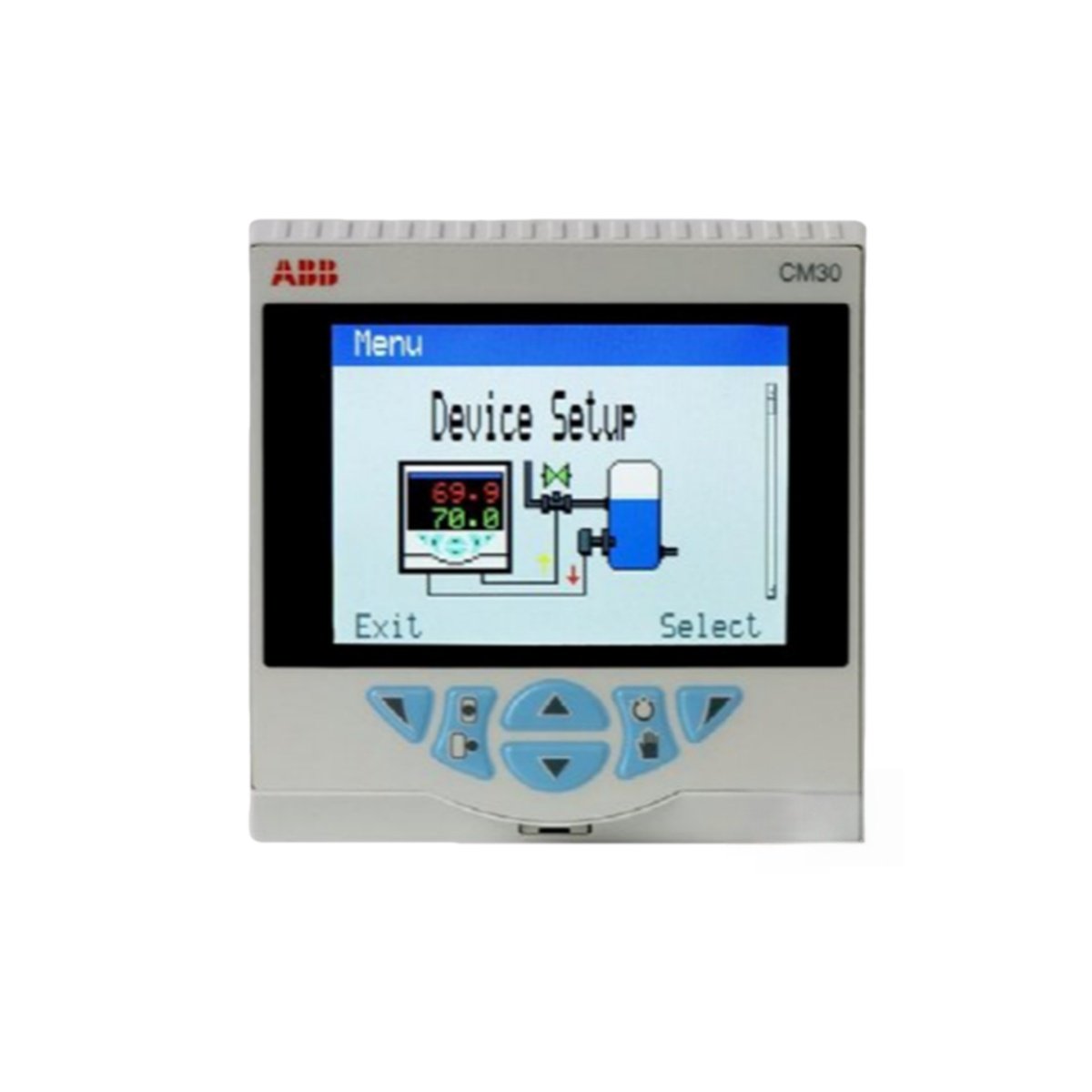

The ABB CM30/000S0E0/STD is a versatile 1/8 DIN process controller. This unit from the ABB ControlMaster CM30 series manages temperature and general process variables. Its compact design fits standard panels while delivering reliable control functionality.
Engineers select this basic version controller for straightforward regulation tasks. It accepts two analog inputs and provides one analog output and one relay output. Consequently, it can handle common control loops for heating, cooling, or pressure regulation.
General Product Information
This controller is part of ABB’s renowned Commander line of control products. Its identification details ensure correct sourcing and system documentation.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Line | Commander |
| Model / Series | ControlMaster CM30 |
| Version | Basic Version |
| Full Part Number | CM30/000S0E0/STD |
| Product Type | Universal Process Controller |
| Primary Category | Controls & Indicators |
| Subcategory | Temperature / Process Control |
Physical Dimensions & I/O Configuration
The ABB CM30/000S0E0/STD features a compact footprint for space-constrained panels. Below are its exact physical specifications and input/output capabilities.
| Parameter | Specification |
|---|---|
| Panel Cutout (Width) | 9.5 cm |
| Panel Cutout (Height) | 9.5 cm |
| Overall Depth / Length | 14.6 cm |
| Unit Weight | 0.5 kg (approx. 1.1 lbs) |

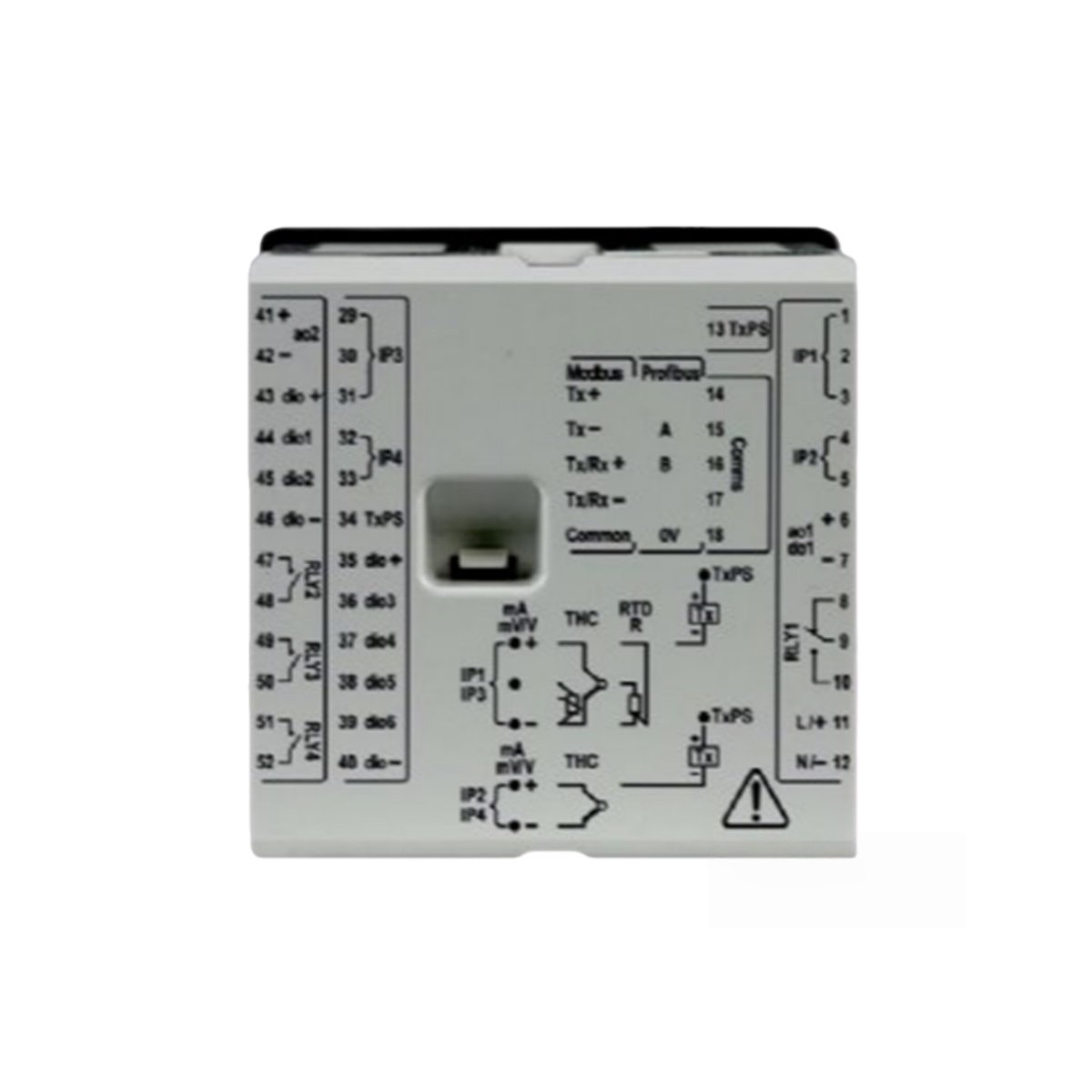

| Number of Analog Inputs | 2 |
| Number of Analog Outputs | 1 |
| Number of Relay Outputs | 1 |
This controller provides a cost-effective solution for standalone control applications. Its simple I/O structure is ideal for ovens, environmental chambers, or small process tanks. The ABB CM30 design ensures easy integration and operation for maintenance personnel.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 95 × 95 × 146 mm |
