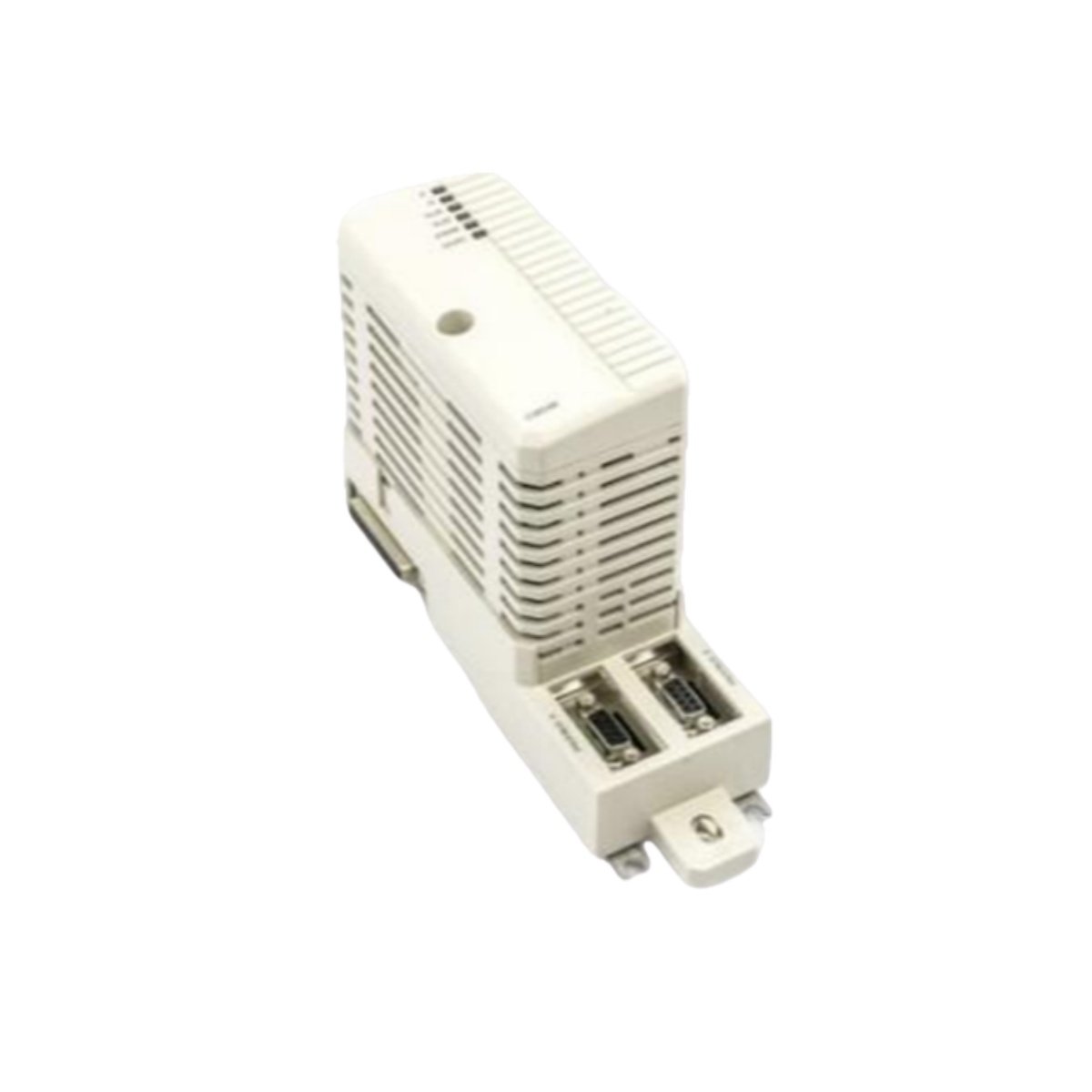

The ABB CI860 CI860K01 3BSE032444R1 is a FOUNDATION Fieldbus High-Speed Ethernet (HSE) interface. This module connects ABB AC 800M series controllers to high-performance fieldbus networks. Its design supports demanding industrial applications requiring robust, high-speed data transfer.
This HSE interface enables reliable communication within process automation systems. Furthermore, its rugged construction ensures stable operation in harsh industrial environments. The module supports flexible network topologies including linear, star, and redundant ring configurations.
Technical Specifications & Dimensions
The ABB CI860 CI860K01 3BSE032444R1 provides a compact and efficient communication solution. Below are its key technical and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer Article Number | 3BSE032444R1 |
| ABB Type Designation | CI860K01 |
| Communication Protocol | FOUNDATION Fieldbus HSE |
| Data Transfer Rate | Up to 100 Mbps |
| Supported Topologies | Linear, Star, Redundant Ring |
| Module Width | 59 mm |
| Module Height | 185 mm |
| Module Depth/Length | 127.5 mm |
| Module Weight | 0.55 kg |
Key Features and Availability
This interface includes comprehensive diagnostic features for network troubleshooting. Consequently, maintenance personnel can quickly identify and resolve communication issues. The CI860K01 module’s robust design meets the physical demands of industrial control cabinets.
Note: The manufacturer, ABB, has discontinued production of the CI860 CI860K01 3BSE032444R1. However, replacement components and refurbished units remain available through specialized vendors. This module continues to be a critical spare part for maintaining existing AC 800M system installations.
Details
| Weight | 0.55 kg |
|---|---|
| Dimensions | 59 × 185 × 127.5 mm |
