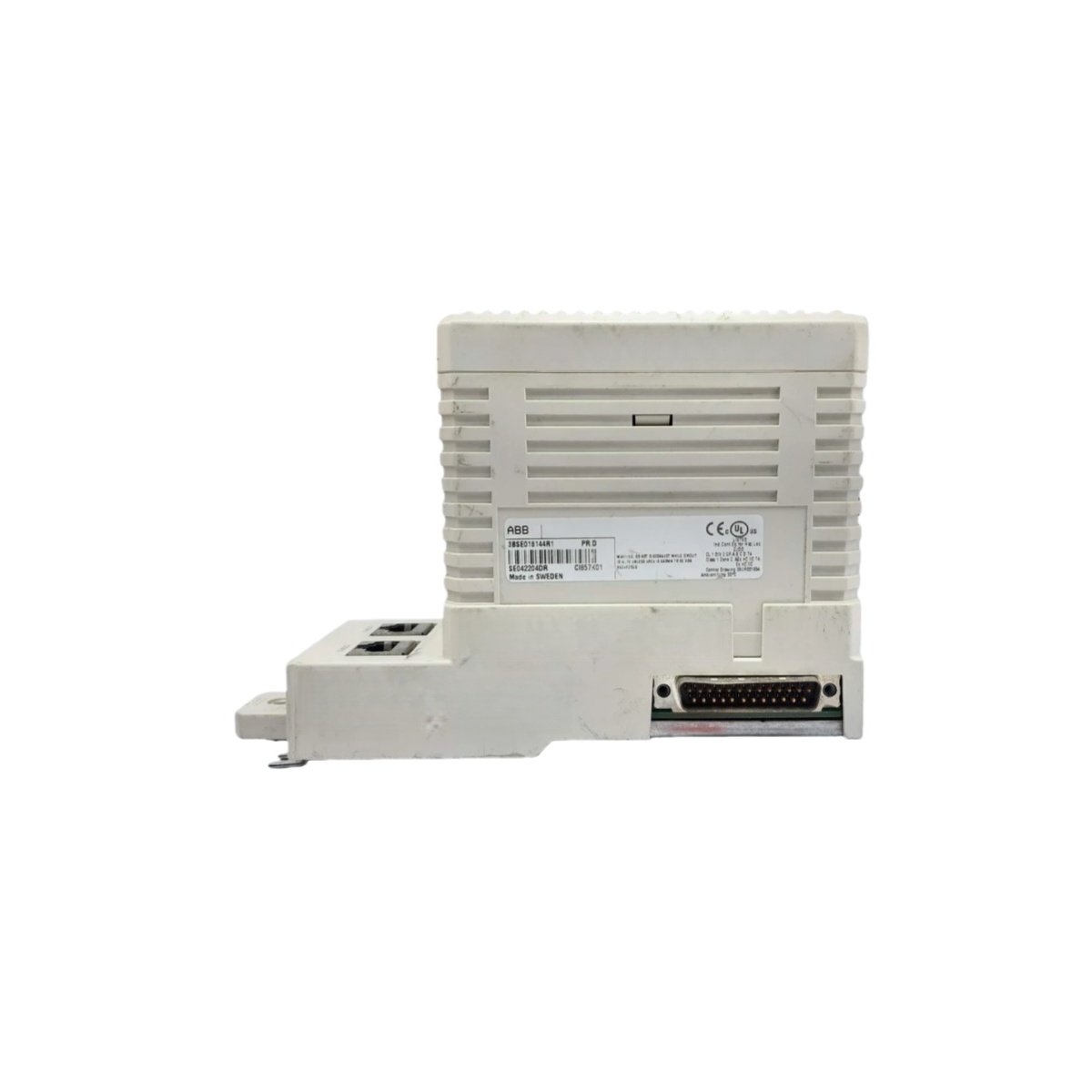

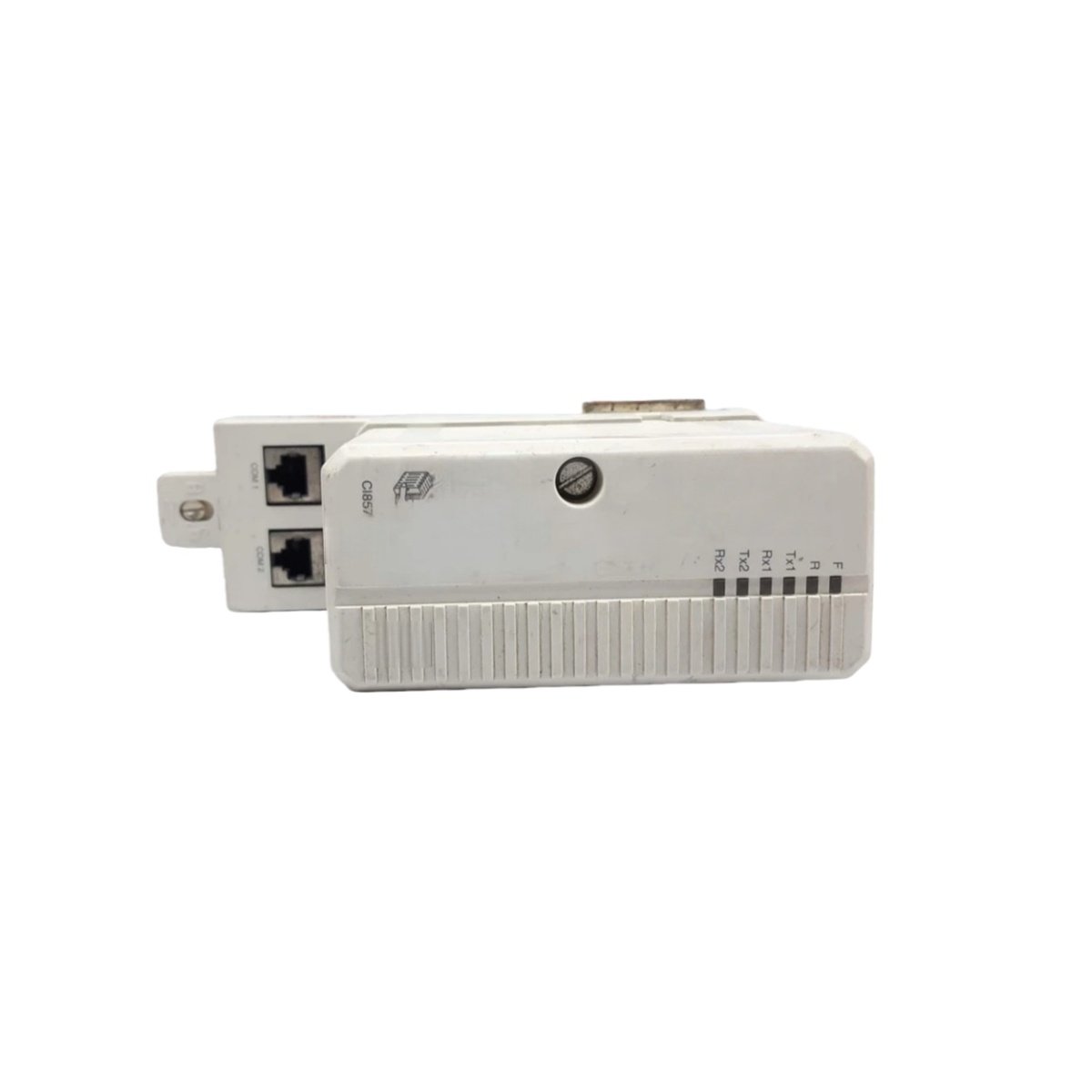

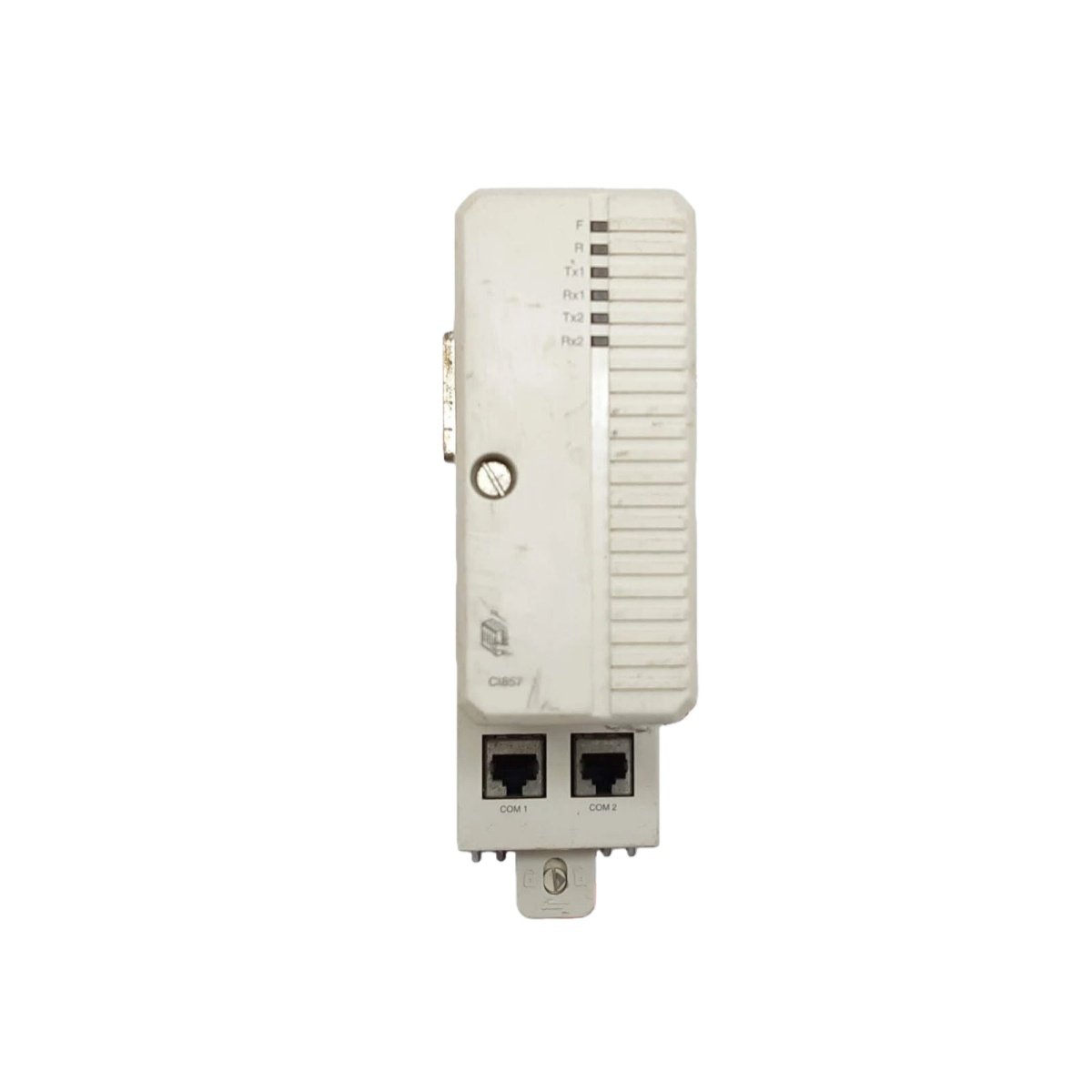

The ABB CI857K01 3BSE018144R1 integrates advanced INSUM functionality into modern control systems. This dedicated Ethernet interface kit connects seamlessly to the AC 800M controller series. Consequently, it enables efficient switchgear management using standard Ethernet technology.
Complete Technical Specifications
This robust communication module delivers critical performance in industrial environments. For a detailed overview, please refer to the following technical specifications table:
| Specification Category | Detailed Parameter |
|---|---|
| Full Manufacturer Model | ABB CI857K01 3BSE018144R1 |
| Product Type / Category | Communication Interface Kit |
| Compatible Controller Series | AC 800M |
| Primary Function | INSUM (Integrated System for User Management) Ethernet Integration |
| Key Features | Facilitates multidrop configurations, precise time distribution, and accurate time stamping for switchgear. |
| Physical Components | Includes the CI857 communication interface module and the TP853 baseplate/module terminal. |
| Power Supply | Draws power directly via the CEX-Bus from the processor unit; requires no separate external power source. |
| Operating Temperature | Rated for reliable operation at temperatures up to 55°C (131°F). |
| Network Technology | Utilizes standard industrial Ethernet for connectivity and data exchange. |
Engineered for Intelligent Switchgear Control
The CI857K01 3BSE018144R1 enhances automation systems by adding intelligent switchgear management. Its multidrop configuration capability simplifies wiring and reduces installation complexity. Moreover, the integrated time distribution and stamping features ensure precise event logging and system synchronization.
Engineers designed this interface kit for straightforward integration, requiring no external power supply. Therefore, installation is quick and system integration remains clean and efficient. The robust design supports operation in demanding environments up to 55°C.
Ultimately, the ABB CI857K01 3BSE018144R1 provides a future-proof link between AC 800M controllers and INSUM-managed switchgear. It is an essential component for modernizing electrical control and achieving higher levels of operational intelligence.
Details
| Weight | 0.55 kg |
|---|---|
| Dimensions | 59 × 185 × 127.5 mm |
