Core Serial Communication Function

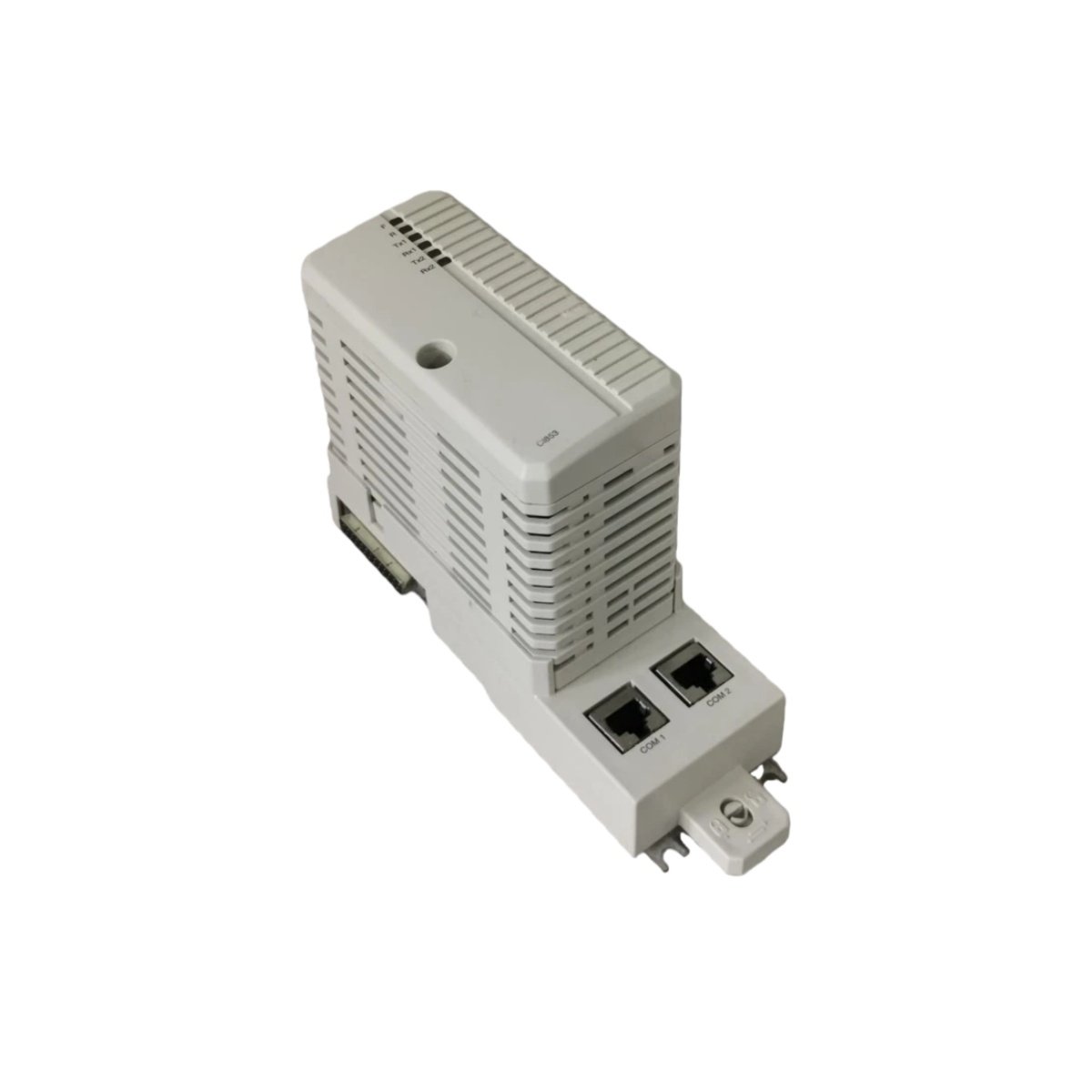

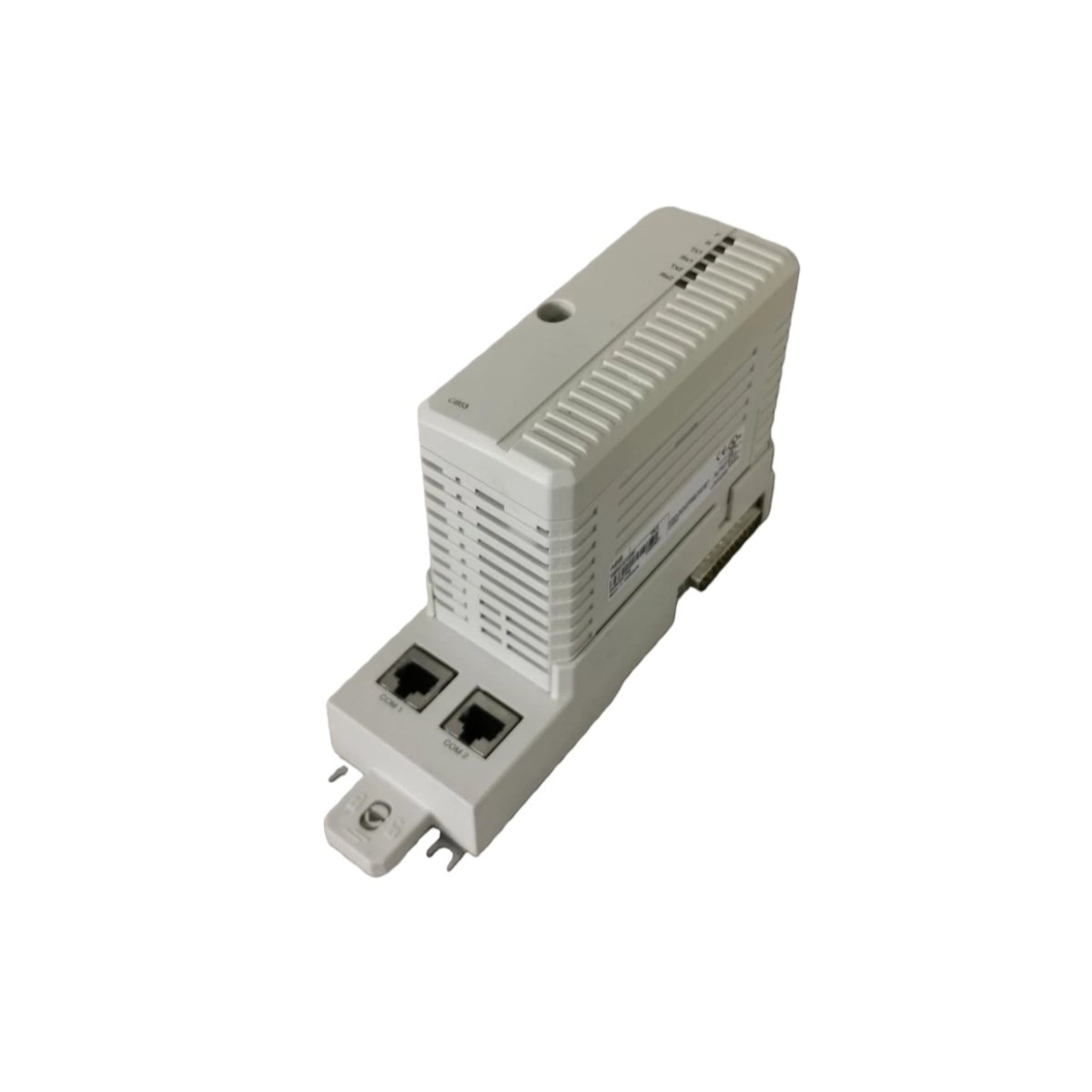

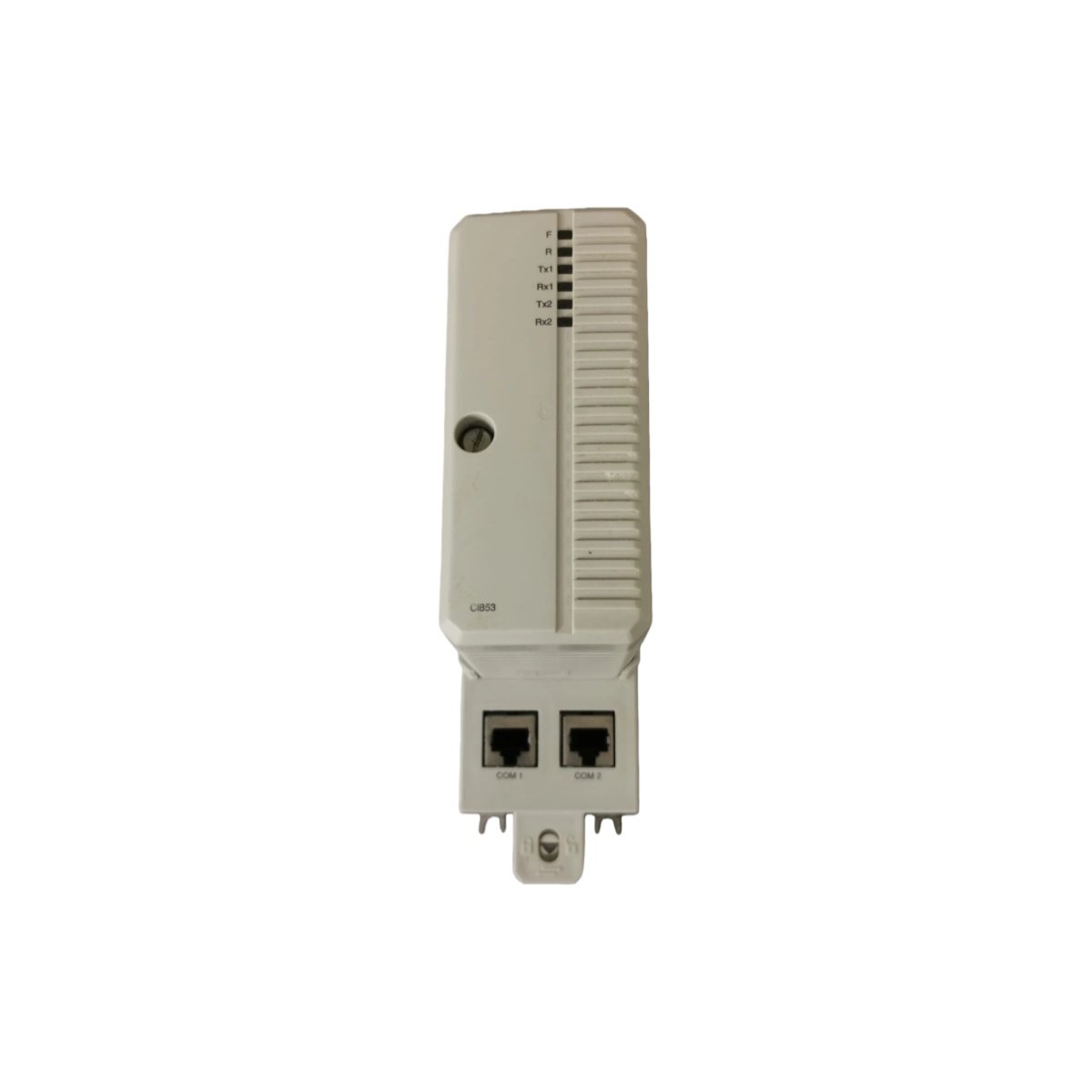

The ABB CI853K01 3BSE018103R1 is a dual-channel RS232-C communication interface module. This unit provides two independent serial ports for connecting ABB controllers to peripheral devices. The package includes the CI853 communication interface and a TP853 mounting baseplate. Consequently, it offers a complete solution for adding robust serial connectivity to industrial automation systems.

Package Contents and Integration

This module ships as a ready-to-install kit, simplifying procurement and system integration. The included TP853 baseplate ensures secure and proper mechanical mounting within the rack. The CI853K01 enables point-to-point serial links for configuration, data logging, or legacy device integration. Furthermore, its dual-port design allows simultaneous connections to two different serial devices.

Detailed Physical and Environmental Specifications

Designed with a compact form factor, this module efficiently uses space in control cabinets. It complies with major environmental directives for responsible manufacturing and disposal. The following table details its complete physical, compositional, and regulatory parameters.

Application and Installation Notes

Mount the module onto its dedicated baseplate and install it into the appropriate system slot. Use standard RS232-C cables to connect to devices like HMIs, printers, or modems. The ABB CI853K01 3BSE018103R1 is ideal for applications requiring reliable, low-speed serial data exchange. It remains a vital component for system configuration, diagnostics, and integrating specialized serial-based equipment.
