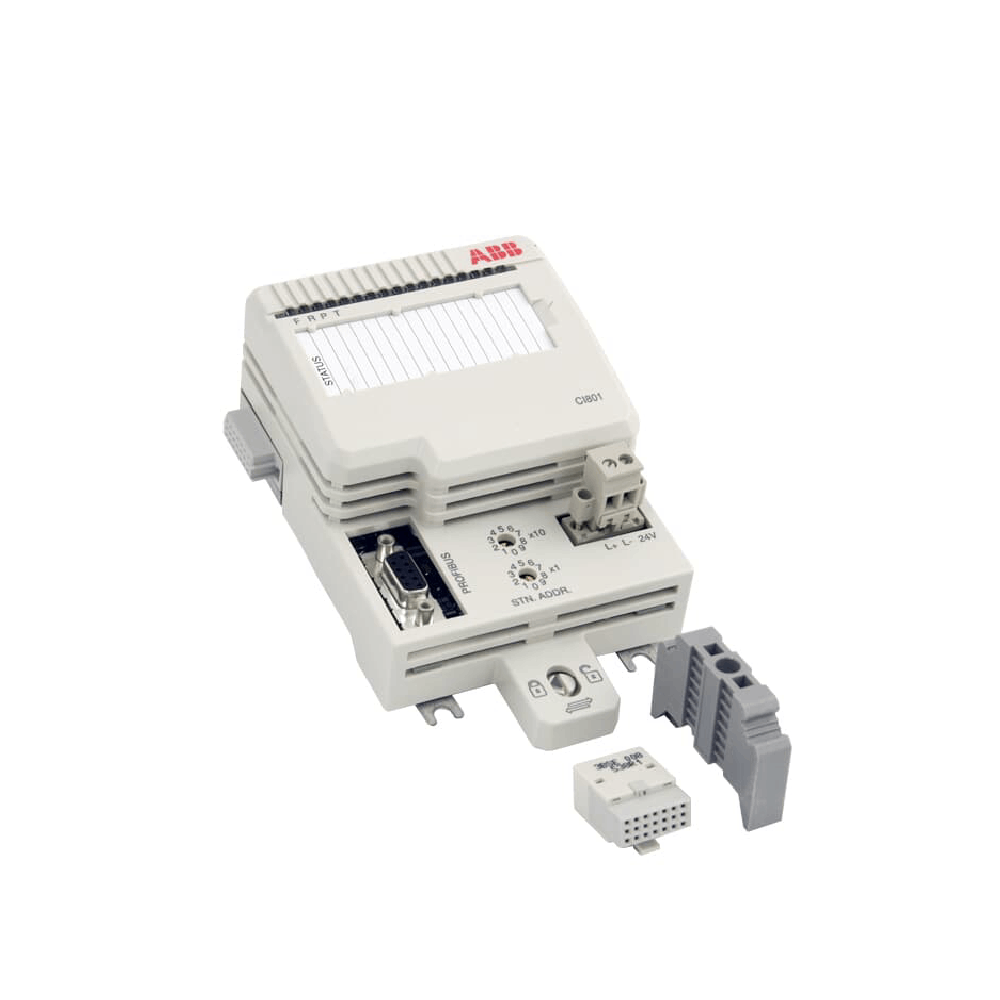

The ABB CI801 3BSE022366R1 connects S800 I/O modules to controllers over PROFIBUS-DPV1.
It performs signal processing, supervision, and HART pass-through functions.
Hot Configuration InRun allows configuration without stopping the system.

Features

• PROFIBUS DP-V1 communication interface
• Supervisory functions for I/O ModuleBus
• Isolated power supply for I/O modules
• OSP handling and configuration
• Input power fused
• Hot Configuration In Run
• HART pass-through support

Applications

• Integration with HI controllers
• S800 I/O networks requiring PROFIBUS connectivity
• Industrial automation systems with supervision and signal monitoring

Specifications

• Article number: 3BSE022366R1
• Master/Slave: Slave
• Line and module redundancy: No
• Hot swap: No
• Typical 24V consumption: 140 mA
• Operating temperature: 0 to +55 °C (+32 to +131 °F)
• Storage temperature: -40 to +70 °C (-40 to +158 °F)
• Relative humidity: 5–95 %, non-condensing
• Protection class: IP20
• Certifications: CE, EN/UL 61010, ATEX Zone 2, cULus C1 Div 2, Marine ABS/BV/DNV-GL/LR
• Corrosion protection: ISA-S71.04 G3
• Dimensions: 85.8 mm W × 136 mm H × 58.5 mm D
• Weight: 0.3 kg
• RoHS compliant (EU Directive 2011/65/EU)
• WEEE compliant (Directive 2012/19/EU)
