Core Function in Industrial Networks

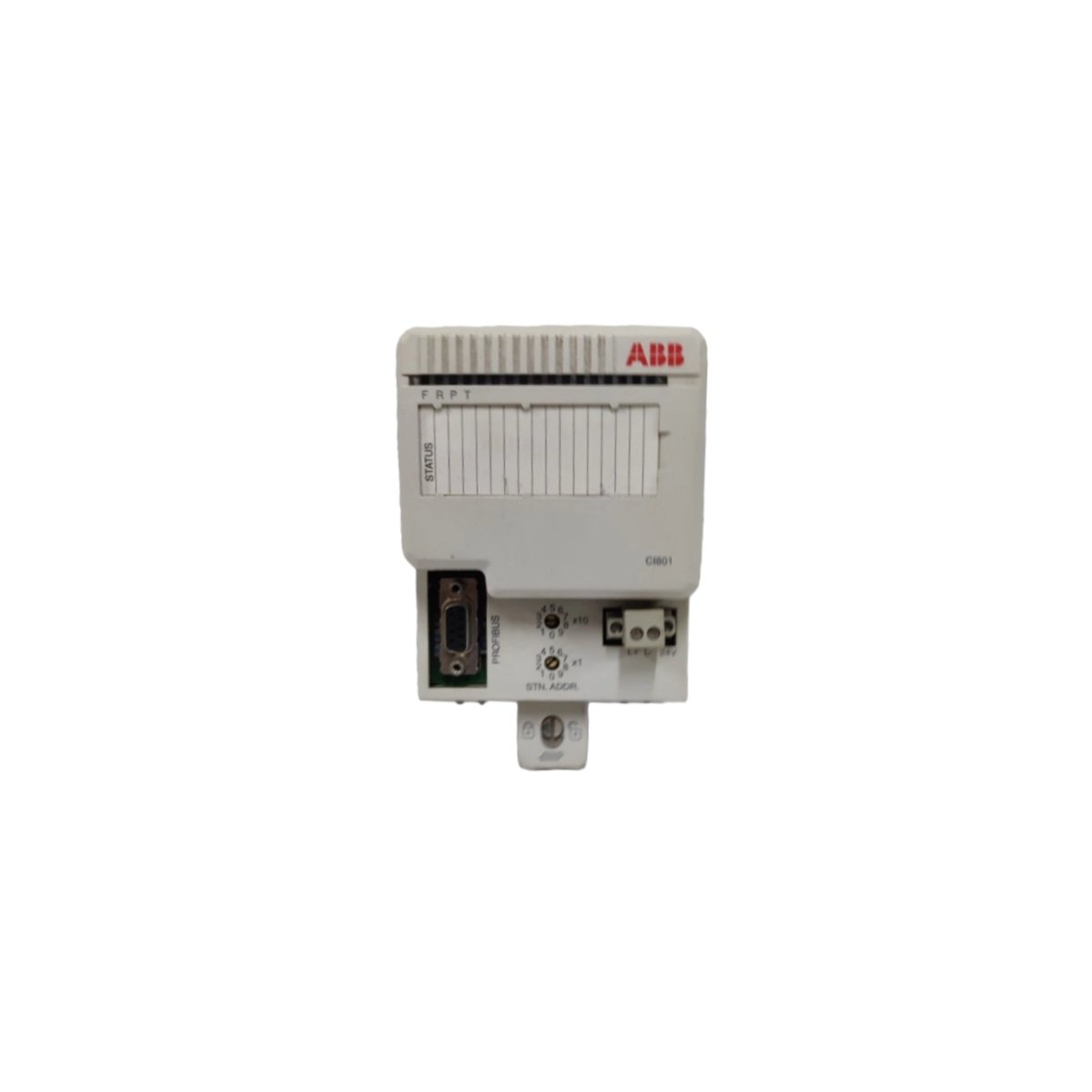

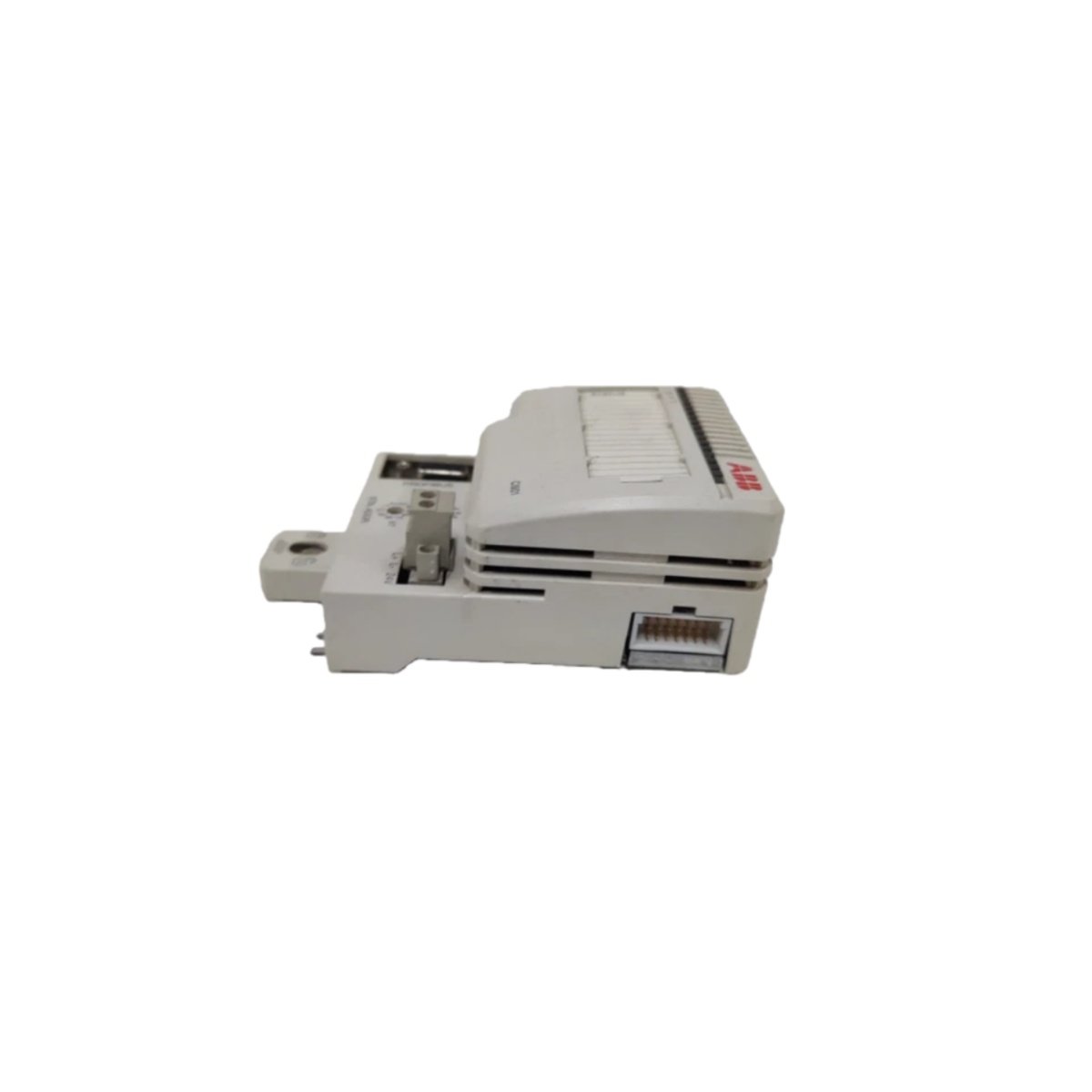

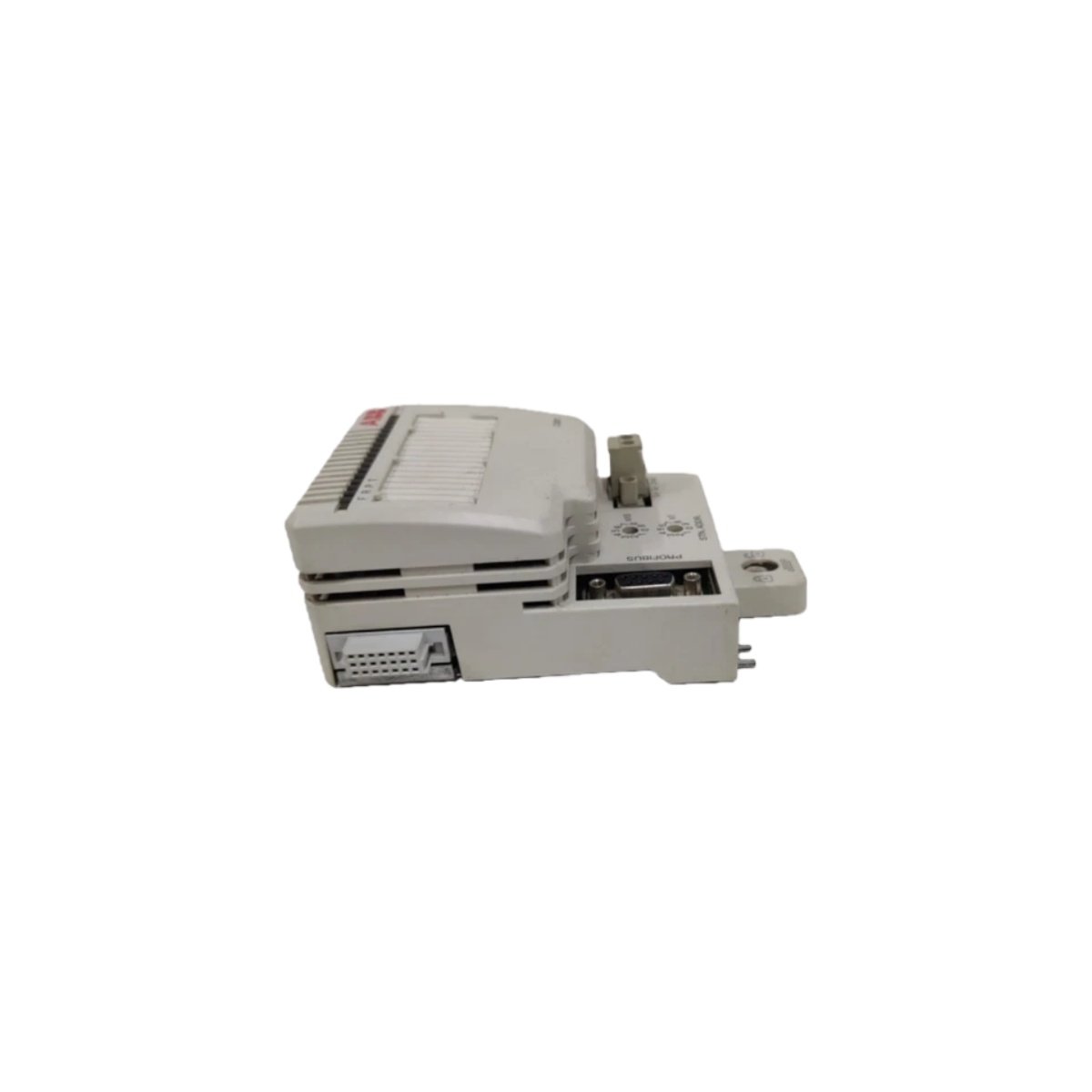

The ABB CI801 3BSE022366R1 is a versatile Fieldbus Communication Interface (FCI) module. It acts as a critical communication node within industrial automation systems. This module primarily handles PROFIBUS DP and DP-V1 protocols as a slave device. Furthermore, it manages essential supervisory tasks and I/O module configuration seamlessly.
Key Features for System Integration
This FCI module supports advanced operational features like Hot Configuration InRun. It also enables HART protocol pass-through for enhanced field device communication. The CI801 3BSE022366R1 provides isolated power directly to connected I/O modules. Consequently, it simplifies cabinet wiring and improves overall system reliability.
Comprehensive Technical Specifications
Designed for rugged industrial use, the module operates within a wide temperature range. Its compact design allows for efficient use of panel space. Below are its detailed technical and physical parameters for integration planning.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | ABB Industrial Automation |
| Product Model | CI801 3BSE022366R1 |
| Article Number | 3BSE022366R1 |
| Primary Function | Fieldbus Communication Interface (FCI) |
| Fieldbus Protocol | PROFIBUS DP / DP-V1 (Slave) |
| Power Supply | 24 V DC |
| Typical Power Consumption | 2W (~140 mA) |
| Operating Temperature | -20°C to +60°C (Approved: +5°C to +55°C) |
| Storage Temperature | -40°C to +80°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 85.8 mm x 136 mm x 58.5 mm |
| Weight | 0.3 kg |
| Hot Swap Support | No |
| Line/Module Redundancy | No |
| HART Pass-Through | Yes |
| Corrosion Protection | ISA-S71.04 Severity Level G3 |
Environmental Compliance and Certifications
The ABB CI801 module meets major international industrial standards for safety. It carries CE marking and is compliant with RoHS and WEEE directives. Additionally, it holds certifications for use in hazardous locations like Class I Div 2 and ATEX Zone 2. Marine approvals from ABS, BV, DNV-GL, and LR are also available for relevant applications.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 85.8 × 136 × 58.5 mm |
