Core Function and System Integration

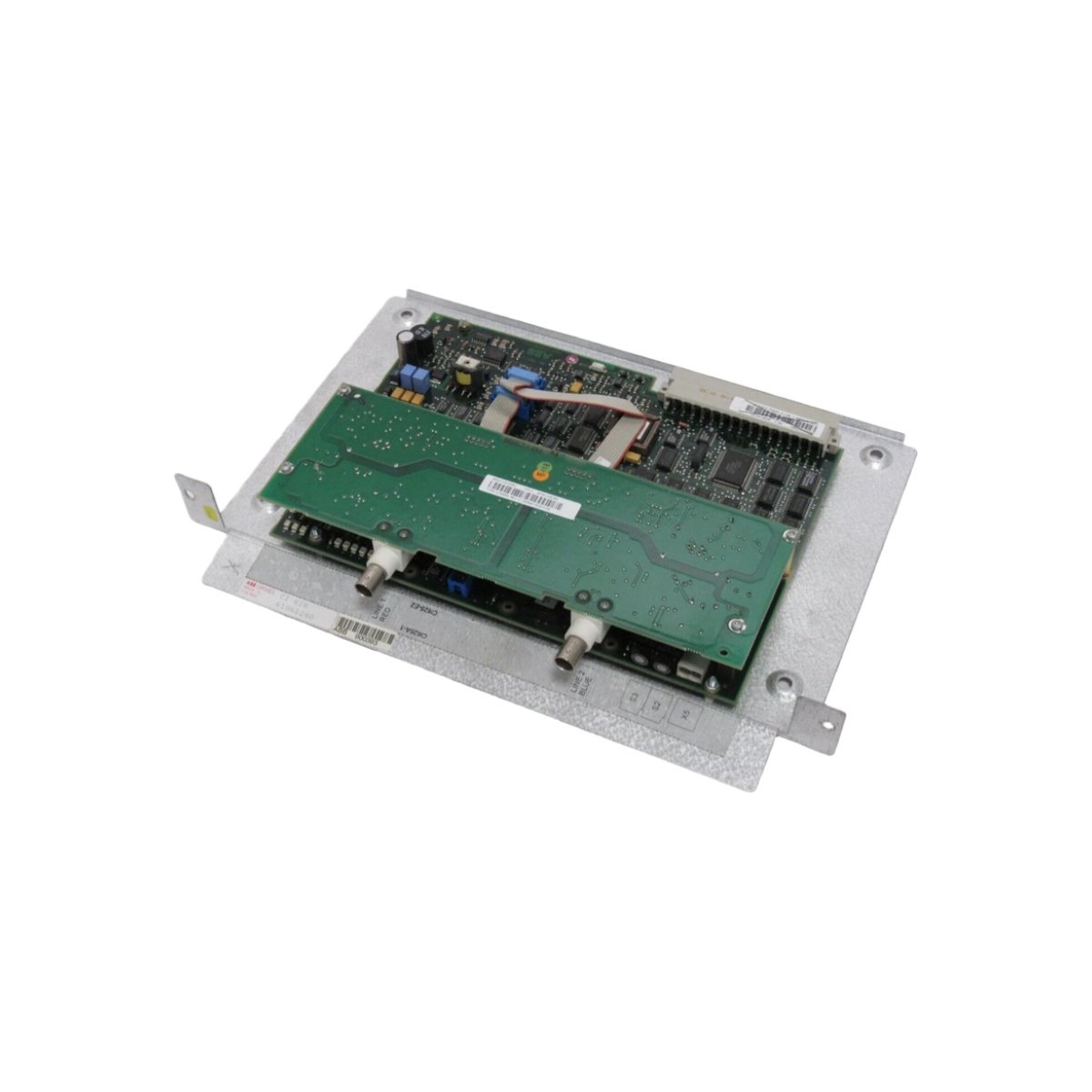

The ABB CI626A 3BSE005023R1 Bus Administrator Board manages high-speed communication in distributed control systems. This critical module orchestrates data flow between DCS controllers and remote S800 I/O modules. Consequently, it ensures reliable, real-time data exchange across your entire Advant OCS network. Its design specifically enhances system scalability and simplifies complex I/O expansions.
Detailed Technical Specifications and Design
Engineered for resilience, the CI626A 3BSE005023R1 operates reliably in harsh industrial conditions. It supports essential hot-swap functionality for maintenance without system downtime. The following table summarizes its key technical parameters for system engineers and integrators.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | ABB Advant / S800 I/O |
| Product Model | CI626A 3BSE005023R1 |
| Primary Function | Bus Administrator Board |
| Compatible Systems | Advant OCS, Controllers 410/450, S800 I/O |
| Communication Protocols | RS-485, Modbus RTU (System Dependent) |
| Power Supply | 24V DC |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature Range | –40°C to +85°C |
| Humidity Tolerance | Up to 95% RH (Non-condensing) |
| Hot-Swap Support | Yes |
| Mounting Options | DIN Rail or Panel Mount |
| Robustness Standards | Complies with IEC 60255-21 for Shock & Vibration |
| Enclosure | Industrial-grade casing with EMI shielding |
Key Operational Features and Benefits
This board provides comprehensive real-time diagnostic features for immediate fault detection. You can continuously monitor network status and I/O module health through the system. Furthermore, its robust EMI-shielded enclosure protects against electrical interference in noisy plants. Therefore, the ABB CI626A 3BSE005023R1 delivers high integrity for processes in power, oil and gas, or chemical applications.
Installation and Compatibility Notes
For proper operation, integrate the CI626A 3BSE005023R1 with a stable 24V DC power source. It acts as the central communication manager for connected S800 I/O racks. Always verify compatibility with your specific Advant Controller 410 or 450 software version. This module is a cornerstone for building a responsive and fault-tolerant distributed control architecture.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 273 × 40 × 252 mm |
