Product Overview

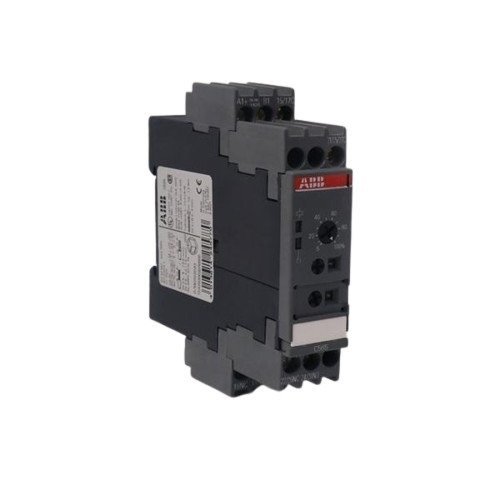

The ABB C 565 (catalog number 1SAR330020R0000) is a multifunctional time relay offering versatile timing control with up to 16 functions and 15 adjustable time ranges. It features one or two NO/NC contacts, an intuitive LED display, and is ideal for industrial automation projects needing flexible timing solutions.
Key Features
- Offers 1 or 2 NO/NC contacts configurable for various power applications.
- Supports 16 timing functions and 15 time ranges from 0.05 s to 100 h, plus an ∞ (no timing) setting.
- Includes LED indicators for both switch position and supply voltage status.
- Easy wiring via screw terminals; supports DIN-rail mounting (35 mm EN 50022) or panel mounting with plug-in tab.
- Designed to withstand application voltage ranges from 24 to 240 V AC/DC.
Technical Specifications
| Specification | Detail |
|---|---|
| Supply Voltage | 24 – 240 V AC/DC |
| Timing Ranges | 0.05 s – 100 h (15 steps), plus ∞ setting |
| Timing Functions | 16 multifunction options |
| Contacts | 1 or 2 NO/NC; second contact can be instantaneous |
| LEDs | Supply voltage + function timing indicators |
| Terminals & Mounting | Screw terminals; DIN-rail or panel mounting |
| Dimensions | Width: 22.5 mm; Length: 78 mm; Depth: 100 mm |
| Weight | Approx. 150 g |
| Operating Temp. / Storage Temp. | –25 °C to 60 °C / –40 °C to 80 °C |
| Rated Power | ~2 W or 6 VA at 230 V AC 50 Hz |
| Contact Ratings (AC/DC) | AC resistive: 4 A; AC inductive: 3 A; DC resistive 4 A; DC inductive 2 A |
| Electrical Lifetime | ~100,000 cycles (AC 230 V, 4 A) |
| Mechanical Lifetime | ~30 million operations |
| Standards & Protection | IEC 61812-1, EN 61812-1, IP50/IP20 |
| Isolation & EMC | Meets VDE, IEC, and EMC standards |
Applications
The C 565 excels in applications requiring varied timing functions in a few devices—saving space, reducing inventory, and increasing flexibility. It supports automation tasks such as delay-on-make, interval, flashing, star-delta transitions, and more, suitable for control systems, maintenance, and testing scenarios.
Details
| Weight | 0.14 kg |
|---|---|
| Dimensions | 23 × 92 × 101 mm |
