Overview

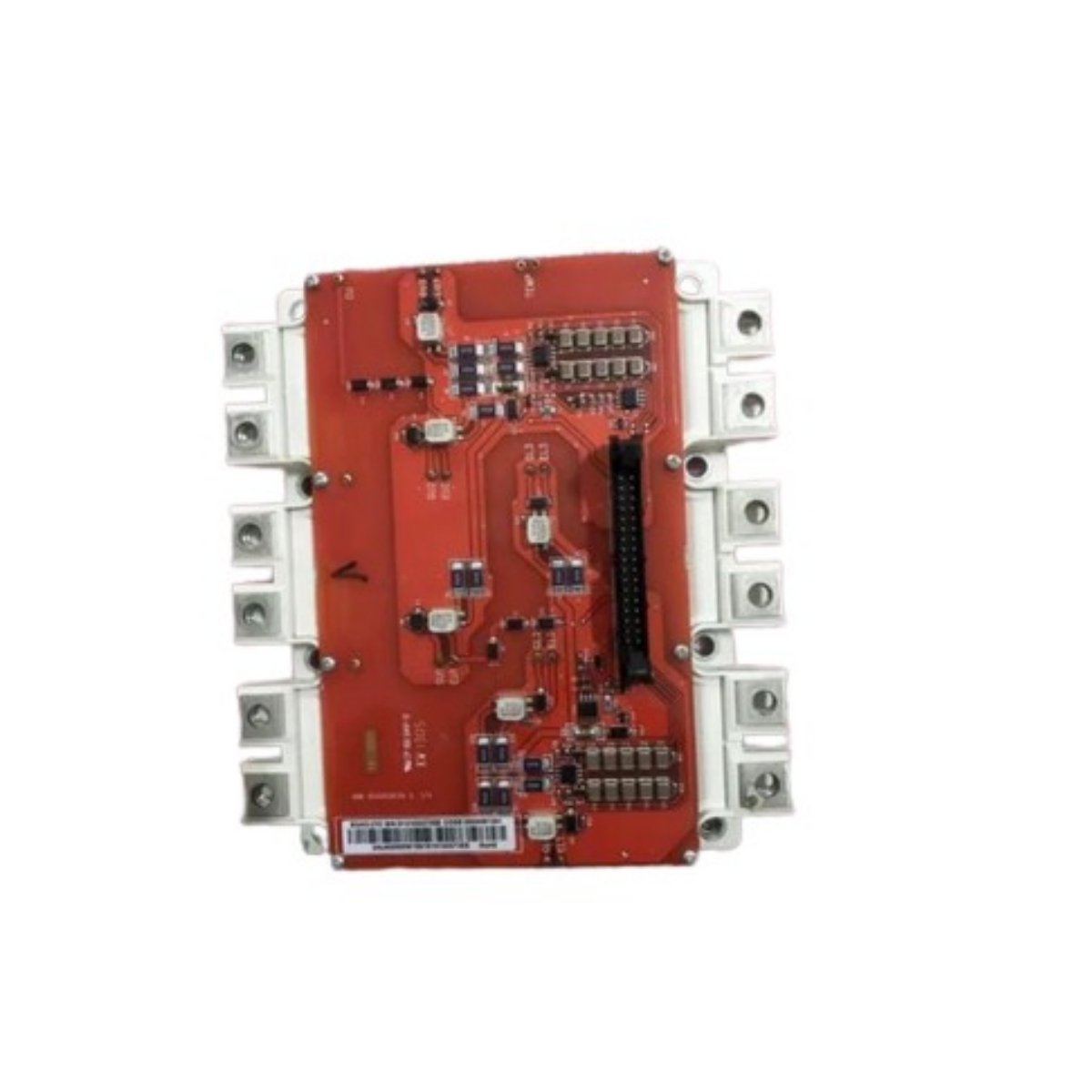

The ABB BGAD-21C IGBT Module Kit delivers reliable power switching for industrial drives, specifically designed for ACS880-104 drive systems. This module ensures precise current control and energy efficiency in high-performance applications. With robust construction and high insulation resistance, it guarantees consistent operation under demanding conditions. Its compact design simplifies installation in compatible ACS880-104 R8i frame sizes, making it ideal for modern automation systems.

Key Features

• Rated voltage of 1700 V supports high-voltage industrial applications
• Handles a continuous current of 500 A for heavy-duty drive performance
• Maintains insulation resistance of ≥ 100 MΩ at 500 V DC for electrical safety
• Operates effectively within -40°C to +85°C, depending on specific module version
• Lightweight 1.706 kg design allows easy handling and integration
• Designed for compatibility with ACS880-104 drive family and R8i frame size
• Ensures rapid switching with low energy loss, improving overall drive efficiency
• Supports long-term durability in industrial environments with high reliability

Technical Specifications

Advantages

• Enhances ACS880-104 drive performance with precise and stable current switching
• Reduces power loss while providing high-speed switching efficiency
• Simplifies maintenance and replacement with modular kit design
• Supports safe operation with high insulation and temperature tolerance
• Optimized for industrial environments requiring reliable and long-lasting components

Dimensions & Weight

• Weight: 1.706 kg

Origin

• Manufactured in: Switzerland (ABB)
