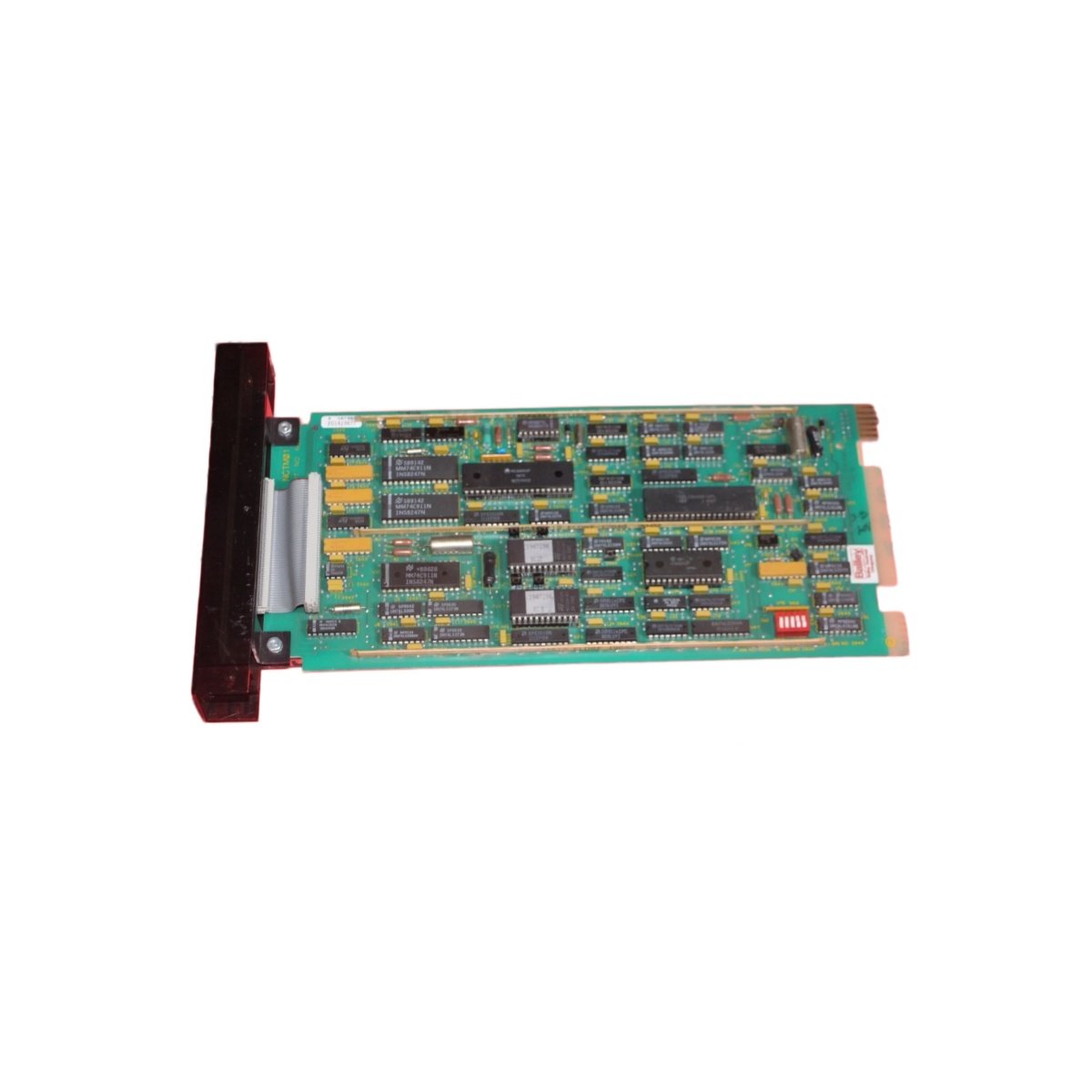

The NCTM01 Configuration Tuning Module from ABB Bailey supports precise parameter adjustment within the INFI 90 and Net 90 distributed control systems. Engineers rely on this module to fine-tune analog and digital control loops during commissioning, maintenance, and system optimization. Consequently, it helps maintain stable process control across demanding industrial environments.
Key Technical Specifications
The table below outlines the primary physical and electrical parameters of the NCTM01 module.
| Parameter | Specification |
|---|---|
| Product Type | Configuration Tuning Module |
| Compatibility | ABB Bailey INFI 90 / Net 90 systems |
| Dimensions | Approximately 178 mm × 102 mm × 25 mm |
| Weight | Approximately 0.23 kg (0.5 lbs) |
| Mounting | Standard INFI 90 module rack slot |
| Interface | Backplane bus connector |
| Connectors | Multi-pin edge connector |
| Component Count | Multiple integrated circuits and passive components |
| Energy Storage | On-board capacitors for signal filtering |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This module communicates directly with the control processor through the backplane interface. As a result, it enables real-time tuning of proportional, integral, and derivative parameters. Technicians can adjust setpoints without interrupting the overall control loop operation. Furthermore, the NCTM01 stores configuration data temporarily in its onboard energy storage components. This design ensures smooth parameter retention during brief power interruptions.
Installation and Handling Notes
Always power down the rack before inserting or removing the NCTM01. In addition, inspect the edge connector for bent pins or contamination. Proper handling prevents damage to sensitive integrated circuits. Finally, verify slot compatibility with your specific INFI 90 chassis revision.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
