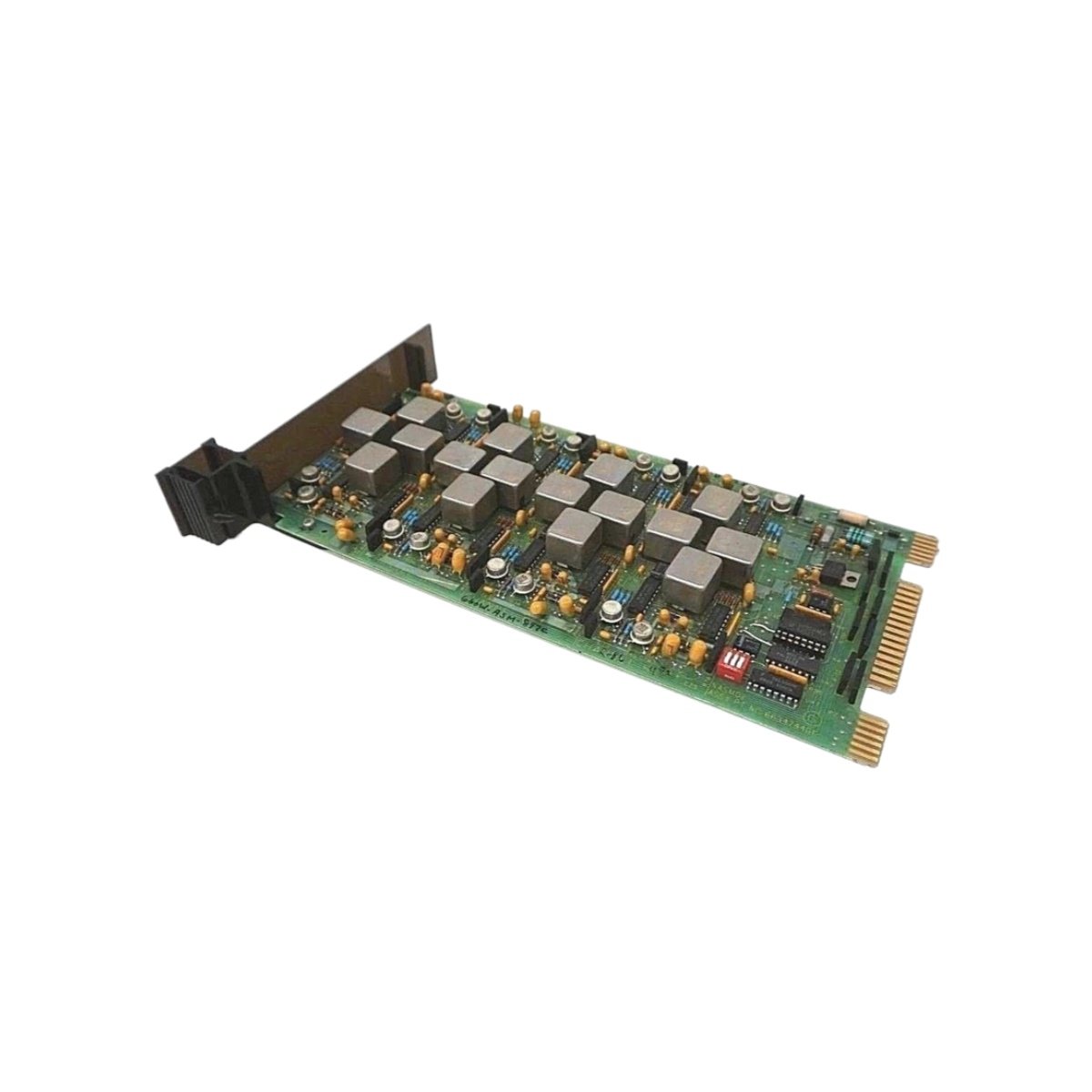

The NASM02S analog slave module from ABB Bailey expands analog I/O capacity within INFI 90 and Net 90 control systems. Plant engineers add this module whenever a primary controller needs extra sensor channels. Consequently, it delivers reliable analog signal handling without replacing the main processor card.
Key Technical Specifications
The table below outlines the main physical and electrical parameters of the NASM02S module.
| Parameter | Specification |
|---|---|
| Product Type | Analog Slave Module |
| Compatibility | ABB Bailey INFI 90 / Net 90 systems |
| Dimensions | Approximately 178 mm x 102 mm x 25 mm |
| Weight | Approximately 0.25 kg (0.55 lbs) |
| Mounting | Standard INFI 90 module rack slot |
| Interface | Backplane bus and analog field terminals |
| Connectors | Multi-pin edge connector and terminal block |
| Component Count | Multiple A/D converters, amplifiers, and filter circuits |
| Energy Storage | On-board capacitors for signal smoothing |
| Input Channels | Multiple analog input points |
| Operating Temperature | 0 degrees C to 60 degrees C |
| Storage Temperature | -40 degrees C to 85 degrees C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This module collects analog signals from field transmitters and converts them into digital values. Therefore, it extends the reach of the host controller into additional process loops. The NASM02S isolates each channel to reduce noise and ground loop interference. Meanwhile, its onboard energy storage stabilizes readings against transient voltage fluctuations.
Installation and Handling Notes
Always verify signal type and range before wiring the NASM02S to field instruments. In addition, check that channel addressing matches your configuration database. Tighten terminal screws evenly to prevent intermittent connections. Finally, calibrate each input point during commissioning.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
