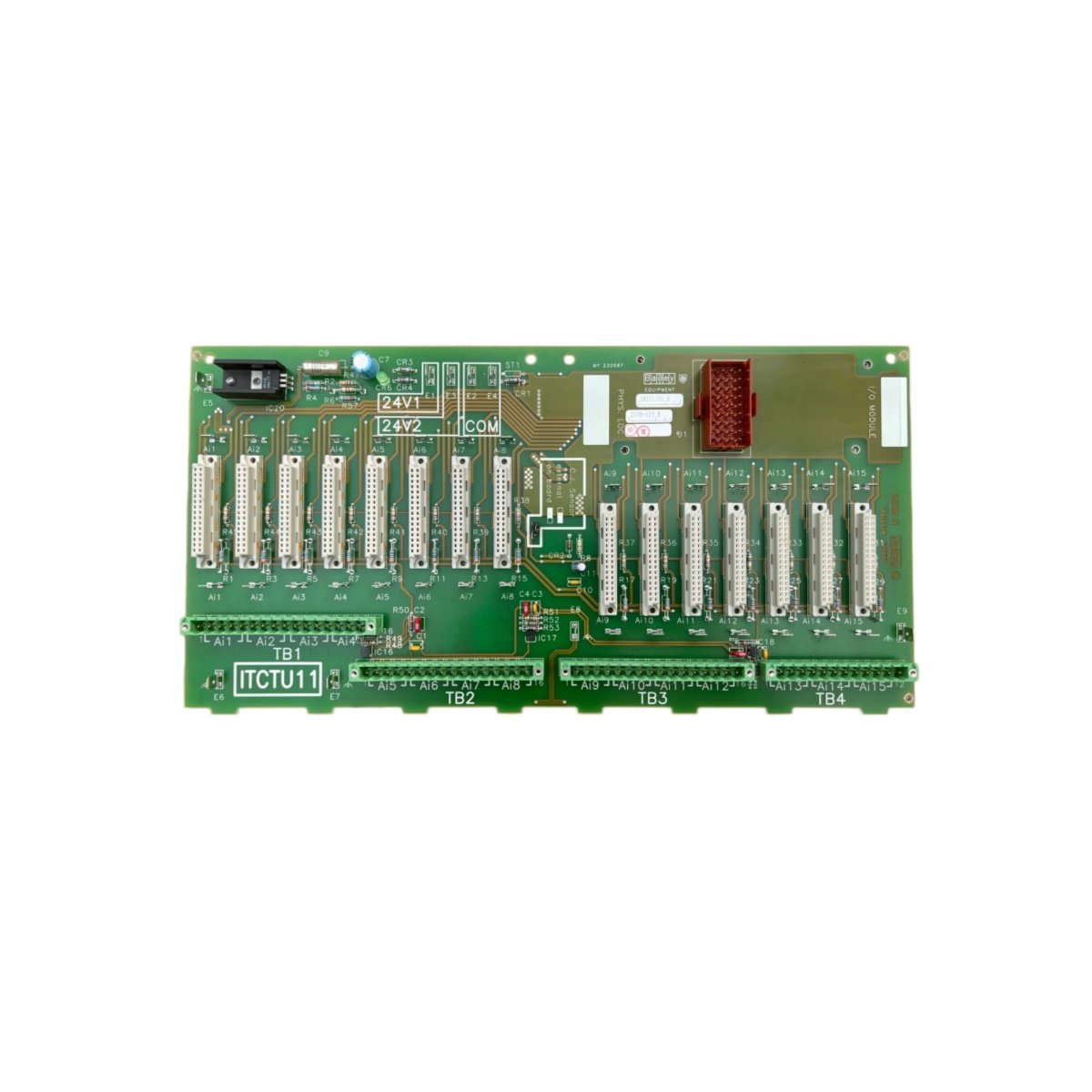

The ITCTU03/11 termination unit from ABB Bailey provides clean signal termination for INFI 90 and Net 90 field wiring. Technicians install this unit at the cabinet boundary to match field cables with controller I/O channels. Consequently, it reduces noise, reflections, and wiring errors in industrial control cabinets.
Key Technical Specifications
The table below outlines the main physical and electrical parameters of the ITCTU03/11 unit.
| Parameter | Specification |
|---|---|
| Product Type | Termination Unit |
| Compatibility | ABB Bailey INFI 90 / Net 90 systems |
| Dimensions | Approximately 254 mm × 127 mm × 51 mm |
| Weight | Approximately 0.68 kg (1.5 lbs) |
| Mounting | Panel or DIN rail baseplate |
| Interface | Screw terminal field connections |
| Connectors | Multiple screw terminal blocks |
| Component Count | Several resistor and filter networks |
| Energy Storage | Filter capacitors for signal smoothing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This unit accepts field wiring and routes each signal to the correct controller channel. Therefore, it simplifies cable management during installation and retrofit projects. The ITCTU03/11 also houses termination resistors that prevent signal reflection on long runs. Meanwhile, its onboard energy storage stabilizes analog readings against transient electrical noise.
Installation and Handling Notes
Always strip field wires to the recommended length before inserting them. In addition, tighten each screw terminal to the specified torque value. Verify channel mapping against your loop drawings before powering the cabinet. Finally, label every terminal clearly for future maintenance work.
