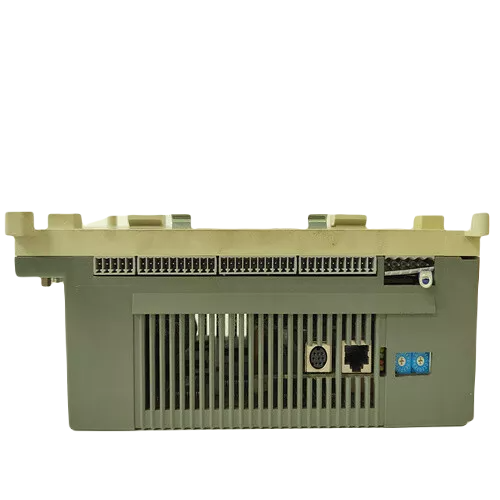

The ABB IMCIS01 Control I/O Slave Module enhances the I/O capabilities of Bailey Infi 90 and Net 90 control systems. It provides precise input/output expansion, supporting industrial automation, process control, building automation, and power generation networks.
Key Features and Benefits
High Compatibility with ABB Bailey Infi 90 and Net 90 control systems.
Compact Size of 115 x 90 x 25 mm enables easy installation in limited spaces.
Lightweight at 250 grams, facilitating handling and integration into control panels.
Reliable Performance ensures stable operation in demanding industrial environments.
Simple Configuration allows engineers to adjust digital input jumpers efficiently.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | IMCIS01 |
| Product Type | Control I/O Slave Module |
| Compatible Series | Bailey Infi 90, Net 90 |
| Dimensions (WxHxD) | 115 x 90 x 25 mm |
| Weight | 250 g |
| Input Voltage Options | 120VAC, 125VDC, 24VDC, 85VAC, 85VDC |
| Input Signal Speed | SLOW or FAST |
| Mounting | DIN rail or panel mount |
| Core Credit | 0.00 (no core return) |
| Part Type | New, not made to order |
Digital Input Jumper Configuration
J1, J2, or J3: Select the jumper according to the desired input configuration.
1-2 Terminals: Connect terminals 1 and 2 using a jumper for proper operation.
Engineers must follow voltage and speed specifications for safe and reliable signal processing.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 115 × 90 × 25 mm |
