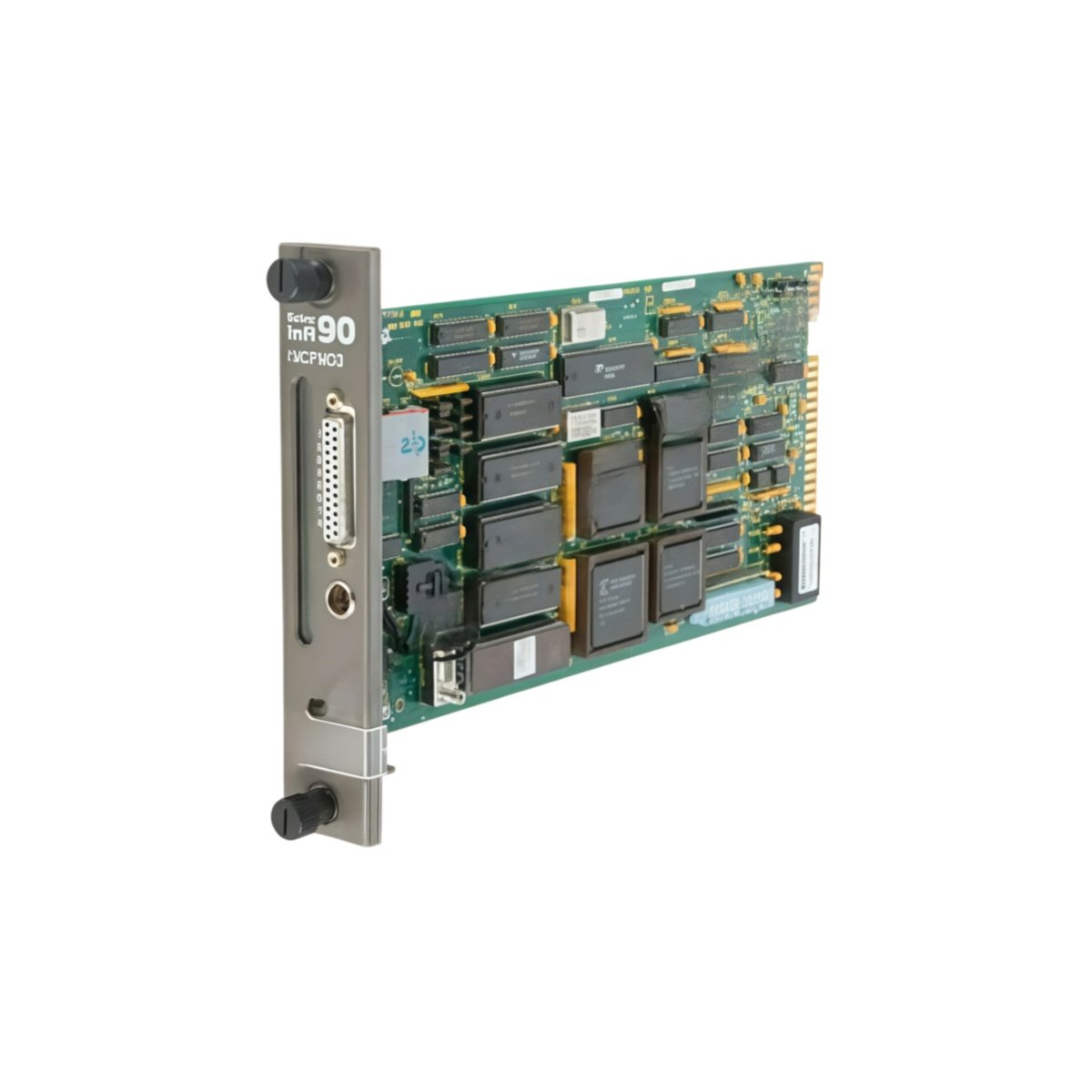

The IMCPM03 communication port module from ABB Bailey manages serial data links within INFI 90 and Net 90 control systems. Plant engineers use this module to connect controllers with operator stations, configuration tools, and third-party devices. Consequently, it enables smooth data flow across plant-wide automation networks.
Key Technical Specifications
The table below lists the main physical and electrical parameters of the IMCPM03 module.
| Parameter | Specification |
|---|---|
| Product Type | Communication Port Module |
| Compatibility | ABB Bailey INFI 90 / Net 90 systems |
| Dimensions | Approximately 178 mm x 102 mm x 25 mm |
| Weight | Approximately 0.25 kg (0.55 lbs) |
| Mounting | Standard INFI 90 module rack slot |
| Interface | Backplane bus and serial communication ports |
| Connectors | Multi-pin edge connector and D-sub ports |
| Component Count | Multiple communication controllers and driver circuits |
| Energy Storage | On-board capacitors for buffer retention |
| Port Count | Two independent serial communication ports |
| Operating Temperature | 0 degrees C to 60 degrees C |
| Storage Temperature | -40 degrees C to 85 degrees C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This module handles protocol conversion and message routing between the control processor and external devices. Therefore, it offloads communication tasks from the main processor. The IMCPM03 supports multiple baud rates and configurable data formats for flexible integration. Meanwhile, its onboard energy storage protects data buffers during brief power interruptions.
Installation and Handling Notes
Always confirm baud rate and protocol settings before inserting the IMCPM03 into an active rack. In addition, check that cable pinouts match your device requirements. Secure the retaining screws evenly to avoid connector stress. Finally, document all port assignments for future troubleshooting.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
