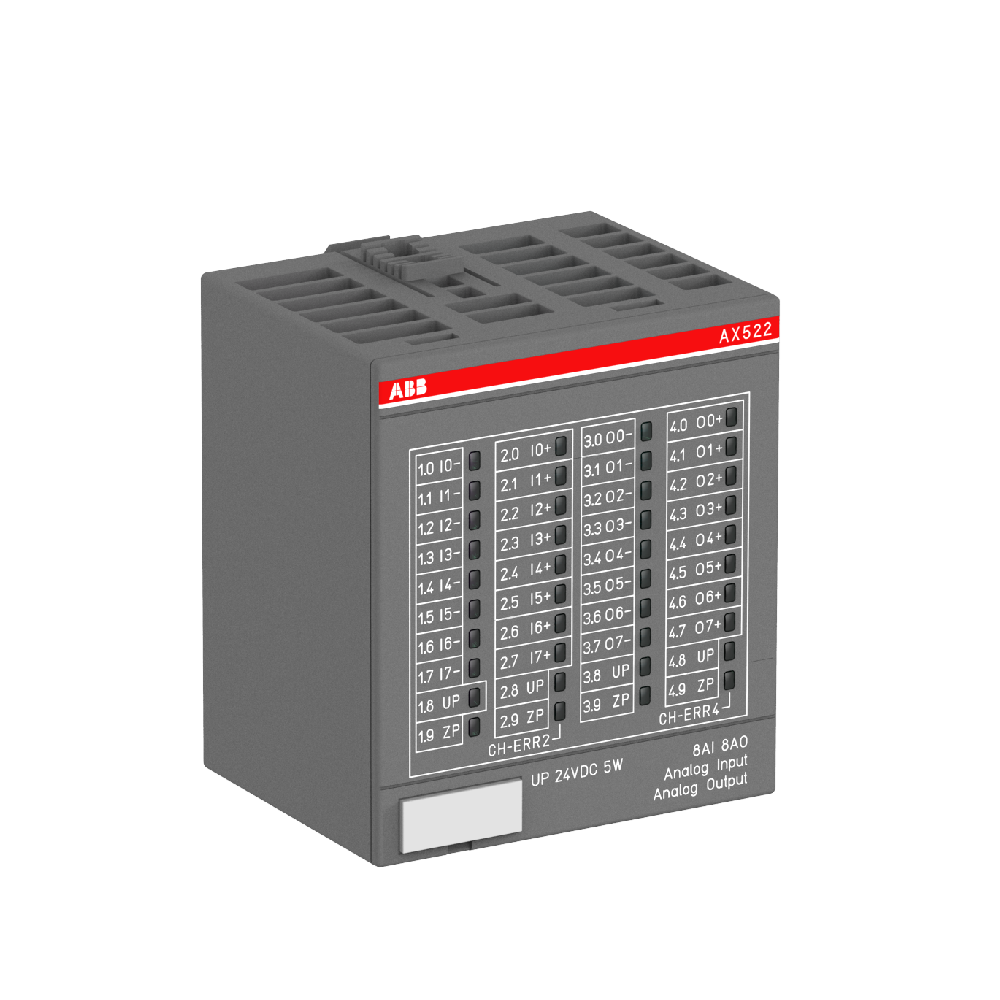

The ABB AX522 Analog Input/Output Module (1SAP250000R0001) is designed for AC500 PLCs, offering precise and flexible analog signal handling. This module supports multiple signal types, including voltage, current, and RTD, making it ideal for diverse industrial automation applications.
Functional Highlights
- Versatile Analog Inputs: Provides 8 AI channels compatible with voltage, current, RTD, and digital input signals.
- High-Resolution Outputs: Features 8 AO channels, with 4 channels supporting voltage and current, and 4 channels supporting voltage only.
- Reliable Operation: 13-bit resolution ensures accurate signal measurement and control in process automation.
- Industrial-Grade Design: Operates with 24V DC supply, IP20 housing, and temperature range from 0°C to 60°C.
- Compact & Lightweight: Measures 67.5 × 76 × 62 mm and weighs only 0.126 kg, facilitating easy integration.
Technical Data
| Feature | Details |
|---|---|
| Model Number | AX522 |
| ABB Part Number | 1SAP250000R0001 |
| Module Type | Analog Input/Output Module |
| Analog Inputs | 8 channels (Voltage, Current, RTD, DI) |
| Analog Outputs | 8 channels (4 U/I, 4 U only) |
| Resolution | 13-bit |
| Supply Voltage | 24 V DC |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W×H×D) | 67.5 × 76 × 62 mm |
| Net Weight | 0.126 kg |
| Gross Weight | 0.151 kg |
| Standards | eClass 27-24-22-02, ETIM 8 EC001420, UNSPSC 32151705 |
| Environmental | WEEE Category 5, SCIP b682868f-f631-443c-8799-443e5f9c5308 |
Typical Applications
- Process Monitoring: Enables precise measurement of temperature, pressure, flow, and other analog parameters.
- Industrial Automation: Expands AC500 PLC analog I/O capabilities for manufacturing, energy, and water treatment.
- Control Systems: Facilitates accurate signal processing for critical industrial control applications.
Advantages
- Ensures high-precision analog signal acquisition with 13-bit resolution.
- Supports multiple signal types, improving system flexibility and functionality.
- Compact and lightweight design simplifies integration into AC500 PLC racks.
- Industrial-grade construction guarantees reliability under harsh operating conditions.
FAQ
Q1: Is the AX522 module brand new and original?
A1: Yes, the module is full new, original ABB, and available in stock.
Q2: What is the typical shipping time and logistics method?
A2: Shipping time ranges from 3 days to 2 weeks depending on order size, commonly via DHL.
Q3: Can it handle RTD and voltage signals simultaneously?
A3: Yes, it supports multiple signal types, including RTD, voltage, and current inputs.
